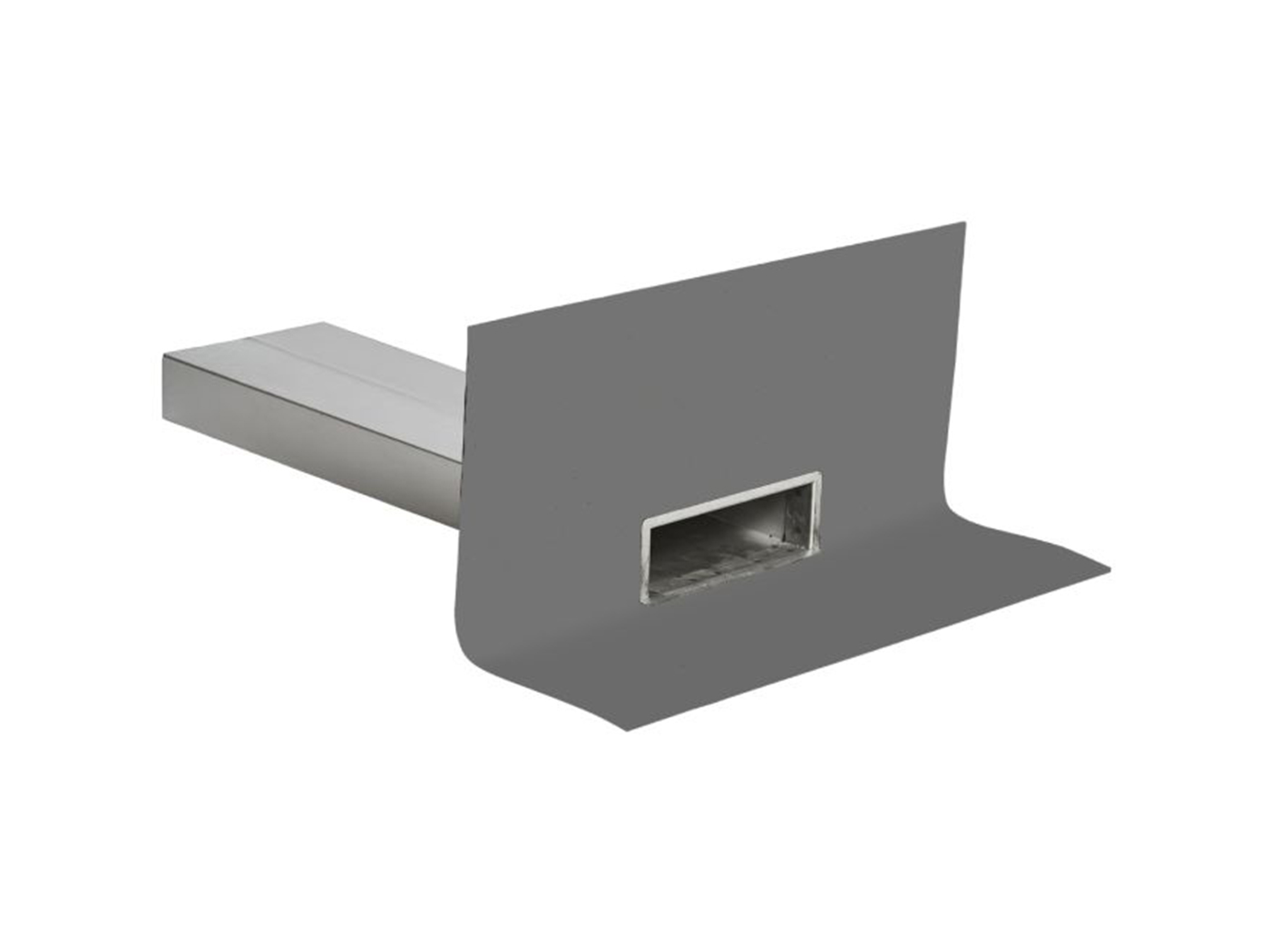

BauderTHERMOFOL PVC Letterbox Parapet Outlet DN205

Ancillaries

A high flow rate (compared to a circular parapet chute) PVC parapet outlet for roof drainage systems. Factory-bonded membrane flange attached to the outlet allows for easy installation.

Specifically designed for use in through wall applications or parapets. Suitable for use in new build or refurbishment applications. For information on non-standard sizes and refurbishment applications, please contact Bauder Technical Department. To be used in conjunction with the letterbox parapet outlet leaf guard.

Product details

CharacteristicTest MethodUnitValue
Base platemm330 (width) x 125 (vertical) x 60 (horizontal)
Aperturemm205 (width) x 65 (height)
External diameter of spigotmm215 x 70
PVC membrane flangemm425 (width) x 175 (vertical) x 100 (horizontal)
Stainless steel spigot lengthmm600
Weightkg4.24 (4.55 kg including leaf guard)

All further technical information is stated on the data sheet.
This product does not require a Declaration of Conformity (DoC) or Declaration of Performance (DoP).
