BauderBLUE STORMsub System
Stormwater attenuation for SuDS
BauderBLUE STORMsub

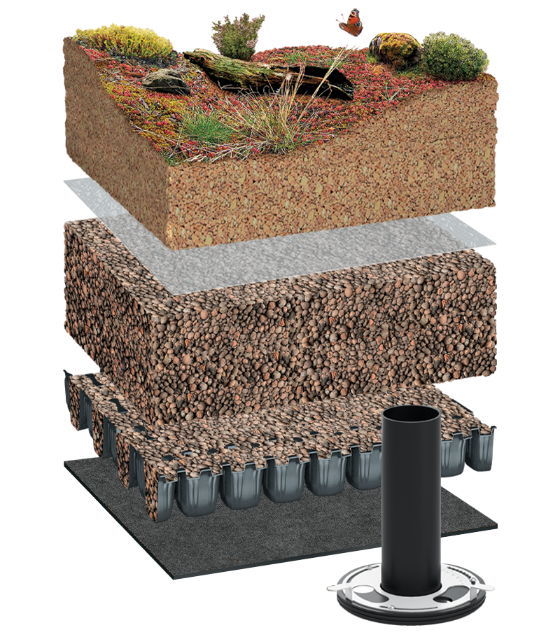

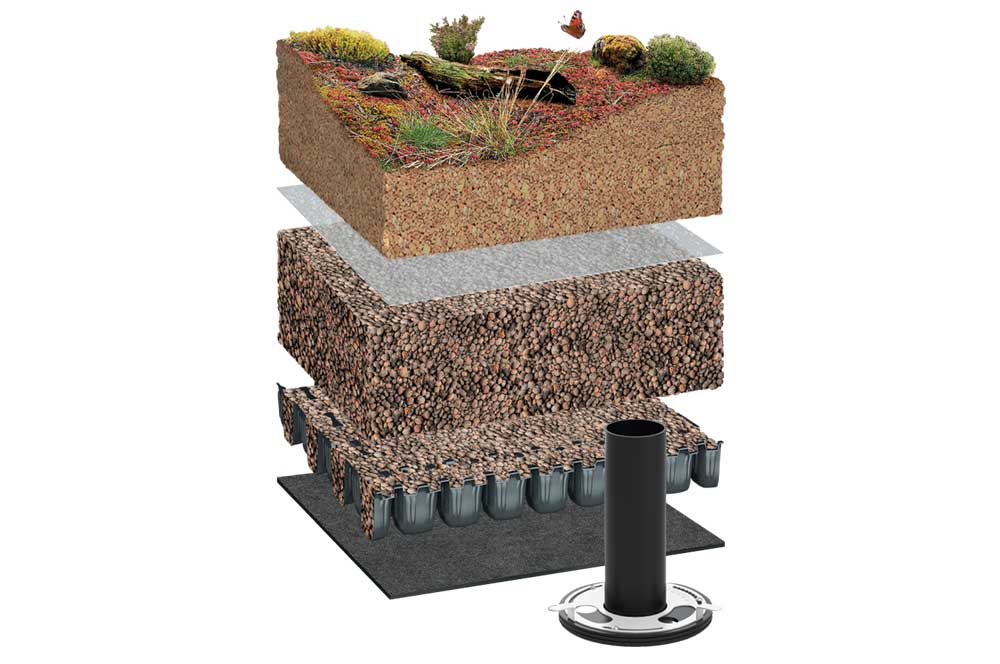

Creating a blue roof within a green roof where the substrate and water retention board attenuate stormwater.
Extensive or biodiverse vegetation finishes can be coupled with a biosolar PV array for maximum environmental advantage.
Green roofs naturally, as part of their multi-layer design function, soak up water for the plants to use, retain it, and delay its run-off. Typically, a green roof will reduce annual run-off by 40-60% per annum*. However, simply using a green roof to attenuate water run-off has a major disadvantage, once saturated there is no control over the rate of water discharge so on its own it cannot be used to achieve a particular discharge rate.
The BauderBLUE STORMsub system utilises our BauderGREEN RE 40 drainage and attenuation board and BauderGREEN SUB-RE UK adapted lightweight substrate as the specific water attenuation components; all other components in the green roof are specified as normal to support the vegetation and safeguard the waterproofing.
When to specify
When a vegetated green roof finish is required the BauderBLUE STORMsub system creates a blue roof within a green roof build up where the substrate and water retention board attenuate stormwater. Extensive or biodiverse vegetation finish can be coupled with a biosolar PV array for maximum environmental advantage.
Plus points
- Greater depth of substrate improves the vegetation cover and the drought tolerance of the plants.
- Reduces the volume of plastics in the blue roof (84% reduction) compared to our STORMcell system with 100mm depth of BauderGREEN RWR 100.
- Suitable to use with our biosolar PV system.
- Can be used with Bauder’s full range of vegetation options to suit visual preference or Biodiversity Action Plan.
- A comprehensive range of guarantee packages to fulfill cover requirements for the project (dependent on system/product selection).
Roof finish options
- Green Roofs: Extensive and biodiverse vegetation
- BauderSOLAR G LIGHT photovoltaic system
BauderBLUE STORMsub
The waterproofing layer goes beneath, which can be used with Reinforced Bitumen Membrane or Hot Melt.
In-depth and up-to-date product-specific technical data is available for each element within a system.
Download system summary:
BauderBLUE STORMsub green roof
Function
Vegetation (Bauder range of vegetation used with other habitat features)
