Bauder Total Roof System
Reinforced bitumen membrane waterproofing
Bauder Total Roof System
Our long-established Bauder Total Roof System (BTRS) incorporates elastomeric bitumen membranes for strength and durability on flat roofs.
BTRS achieves a CCPI mark which recognises that any claims made about it have been independently assessed across 11 clauses, providing greater clarity by offering improved product information. This gives specifiers confidence in the knowledge that they will have unambiguous information when deciding which of our systems is best for their new build or refurbishment project.
Enhance with:
■ Green roofs ■ Blue roofs ■ Solar PV ■ Biosolar PV
When to specify
BTRS is a fully-bonded system suitable for new build and refurbishment projects within warm and inverted roof constructions with a choice of insulations. It is also used as a system to overlay an existing roof that is thermally reliable and still meets current standards.
The Bauder K5K 5.2mm cap sheet comes in three mineral colour finishes and there is a selection of underlayers and AVCLs to suit specific project requirements. The system uses BauderPLANT E when a green roof is specified to form the Bauder Total Green Roof System (BTGRS).
Plus points
- 5.2mm SBS modified elastomeric bitumen cap sheet with polyester fleece reinforcement
- System incorporates patented DUO membranes to minimise the use of flame
- Safe2Torch detailing design
- Comprehensive guarantees to meet project needs
Assessments and verifications
- CCPI Assessment 0007700017/1025:
This system's CCPI mark provides accuracy of information delivering assurance to specifiers - BBA Certificate 10/4744:
Fire classification BROOF(t4) to BS EN 13501-5 tested to TS 1187 test 4 for external fire exposure on defined permutations of product build up
Fire properties – membranes deemed “unrestricted” in certain circumstances as categorised in the BBA certificate
Service life > 35 years - EPD Certification:
Bitumen Membranes
PU Insulation - Aluminium Facing
BauderROCK Insulation
BauderGLAS Insulation

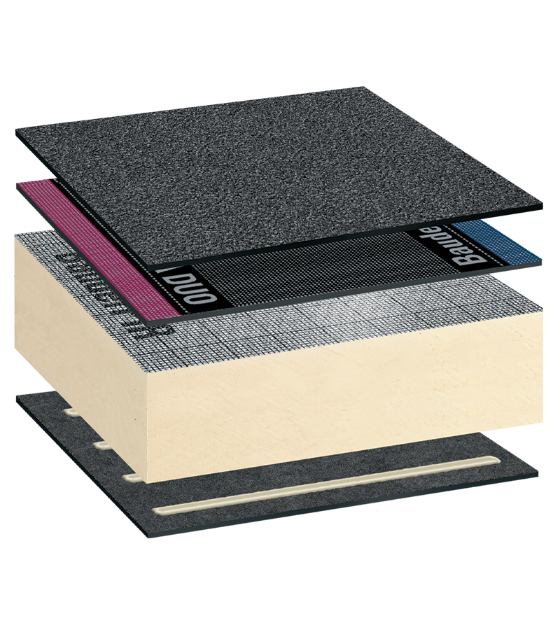

Bauder Total Roof System
In-depth and up-to-date product-specific technical data is available for each element within a system.
Download system summary:
Bauder Total Roof System
Select Function
Inverted

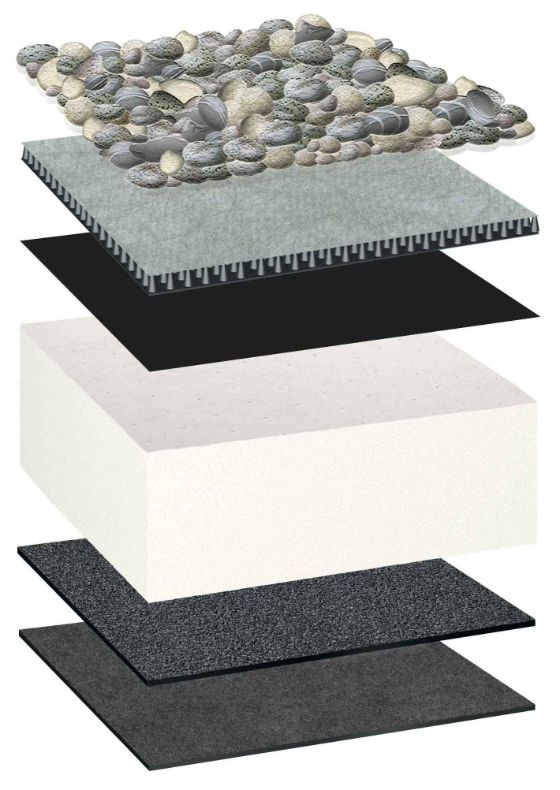

Bauder Total Roof System Inverted with BauderJFRI PREMIUM
In-depth and up-to-date product-specific technical data is available for each element within a system.
Function
Ballast or Vegetation
Approvals, certifications and guarantee
- Comprehensive range of guarantee packages to fulfil cover requirements for the project (dependent on system/product selection). For more information contact us for a sample guarantee outlining cover level, terms and conditions.
- CCPI Assessment Number 0007700017/1025 for Bauder Total Roof System and Bauder Total Green Roof System.
- BBA Certificate 10/4744 for Bauder Total Roof System and Bauder Total Green Roof System.
- BS EN 13707 - Reinforced Bitumen Membrane Sheets Compliant.
- S5, P5 in BS8747:2007 UK guide for reinforced bitumen membranes.
- BS EN ISO 140 - 18:2006 system tested for sound intensity on metal deck.
Additional information
Flame-free detailing methods
Our flame-free detail design specifically delivers secure safe application techniques in the vicinity of combustible construction materials located on, or connected to, the roof. This includes timber substrates or upstands; abutments to cladding, roof tiles, slates or thatch; or debris such as dry leaf material that is at risk of ignition. The application methods meet NFRC Guidance Document 'Safe2Torch'
Installation and maintenance
The quality and experience of the installing operative is paramount to ensuring a successful project. Bauder Approved Contractors are the only people fully trained and certified to install our products. They provide the necessary experience that our exceptional guarantee demands.
Find out moreFlame-free detailing methods
Our flame-free detail design specifically delivers secure safe application techniques in the vicinity of combustible construction materials located on, or connected to, the roof. This includes timber substrates or upstands; abutments to cladding, roof tiles, slates or thatch; or debris such as dry leaf material that is at risk of ignition. The application methods meet NFRC Guidance Document 'Safe2Torch'
Find out moreContact us today
Each project is unique in its requirements, but we have case studies and examples of our work available for you to look at. If you are looking for a bituminous membrane roof system, then get in touch with our team to discuss your project’s individual needs.
