BauderTHERMOPLAN Stainless Steel Rainwater Outlets

Ancillaries

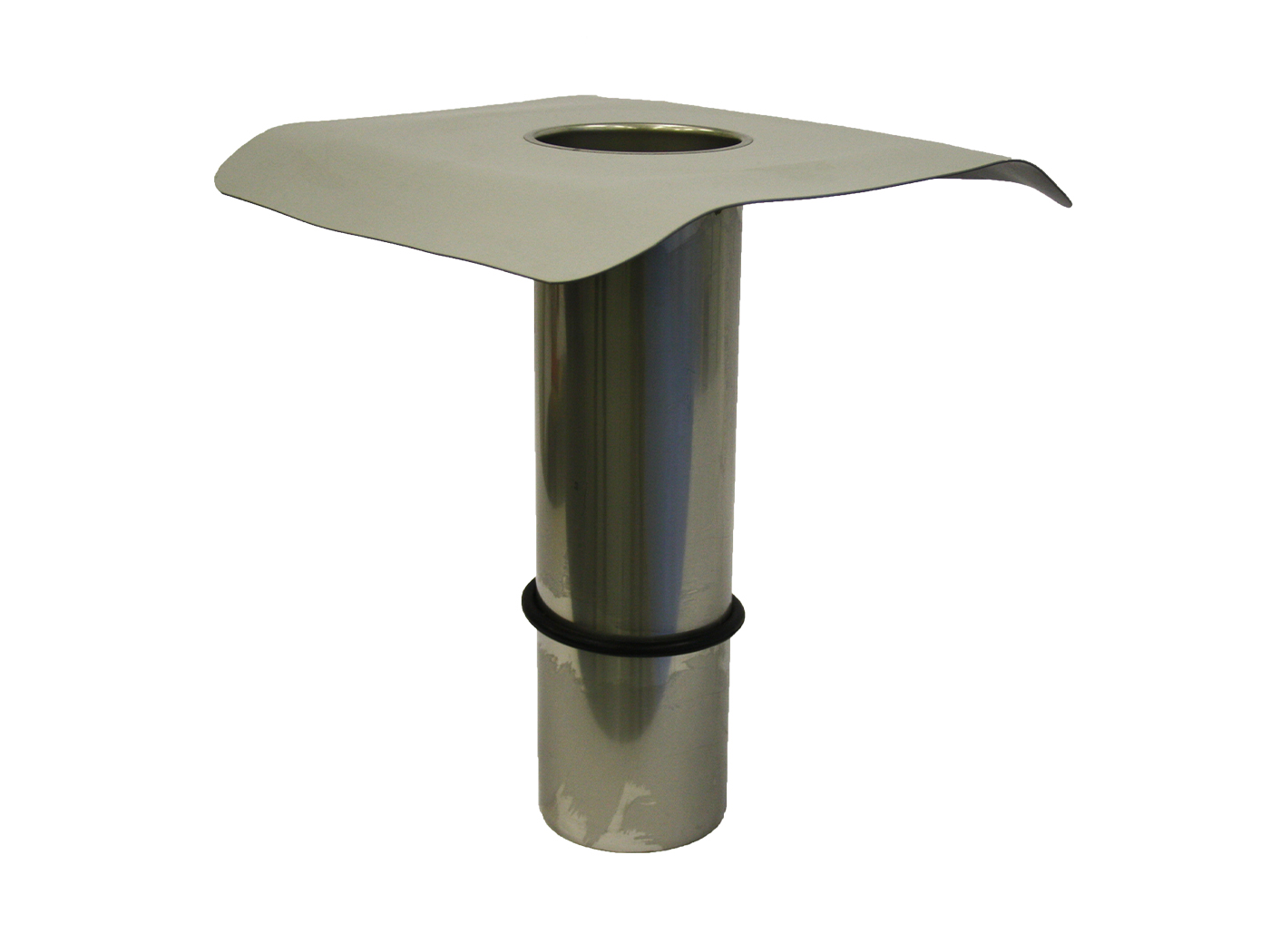

A high performance stainless steel rainwater outlet with factory installed FPO membrane flange. Supplied with an O-ring and a wire ball leaf grill. Supplied with a pearl white coloured FPO membrane flange.

Bauder outlets are sized to show the internal diameter of the spigot. For information on non-standard sizes and refurbishment applications, please contact Bauder technical department.

Product details

CharacteristicTest MethodUnitValue
Stainless steel base platemm230 x 230
FPO membrane flange 330 x 330
Stainless steel spigot length mm400
Thermoplan stainless steel outlet DN 70 mm mmTo suit 75 mm rainwater pipe
Thermoplan stainless steel outlet DN 100 mm mmTo suit 110 mm rainwater pipe
Thermoplan stainless steel outlet DN 150 mm mmTo suit 160 mm rainwater pipe
Flow ratelitres/secThermoplan stainless steel outlet DN70 mm: 2.39*
Thermoplan stainless steel outlet DN100 mm: 4.45*
Thermoplan stainless steel outlet DN150 mm: 6.76*

*Flow rate performance data using a 35 mm head of water (including leaf grille), based upon requirements of BS EN 12056:3:2000.

All further technical information is stated on the data sheet.
This product does not require a Declaration of Conformity (DoC) or Declaration of Performance (DoP).
