BauderROCK Acoustic Infill
Ancillaries

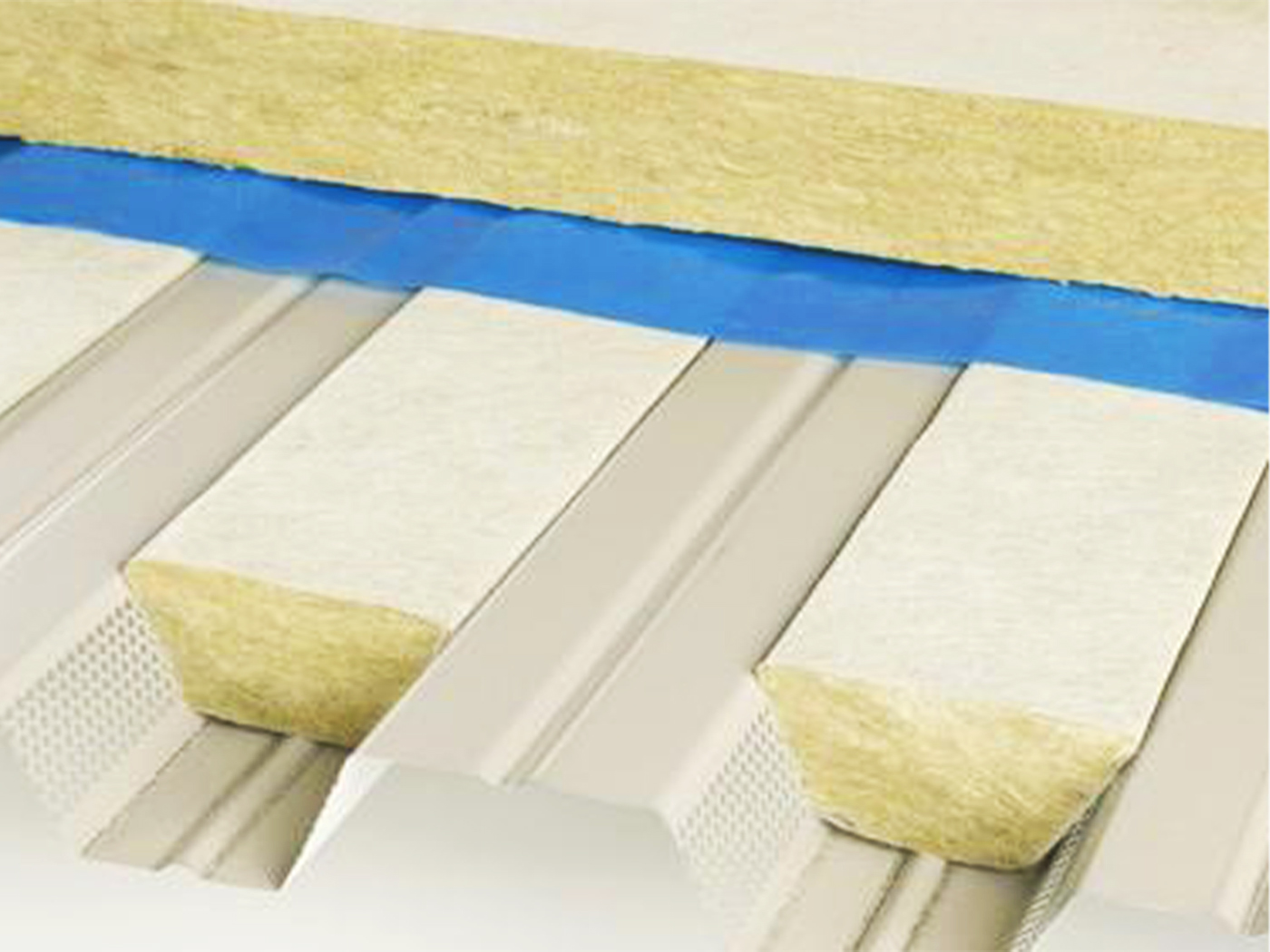

BauderROCK Acoustic Infills are trapezoidal shaped, which is engineered to suit many common perforated roof decking profiles. The product has a tissue facing on the exterior.
For use in conjunction with Bauder insulation and Bauder waterproofing systems on perforated metal roof deck constructions. The product is installed into the troughs of the metal deck prior to application of the Air and Vapour Control Layer.
Product details
Characteristic | Test Method | Unit | Value |
---|---|---|---|
Length | mm | 1,200 | |
Width | varies | ||
Density | kg/m³ | 60 | |
Thermal Conductivity | W/mK | 0.040 | |
Reaction to fire EN 13501-1 | Class | Core material complying with Euroclass A1. With facing Euroclass A2-s1, d0. | |
Acoustic Performance | Solution to E3 and E4 of the Approved Document E. | A perforated metal deck construction including BauderRock Acoustic Fill and BauderRock Insulation will achieve Classification C sound absorption rating in accordance with BS EN ISO 11654 |
