BauderROCK Angle Fillets
Ancillaries

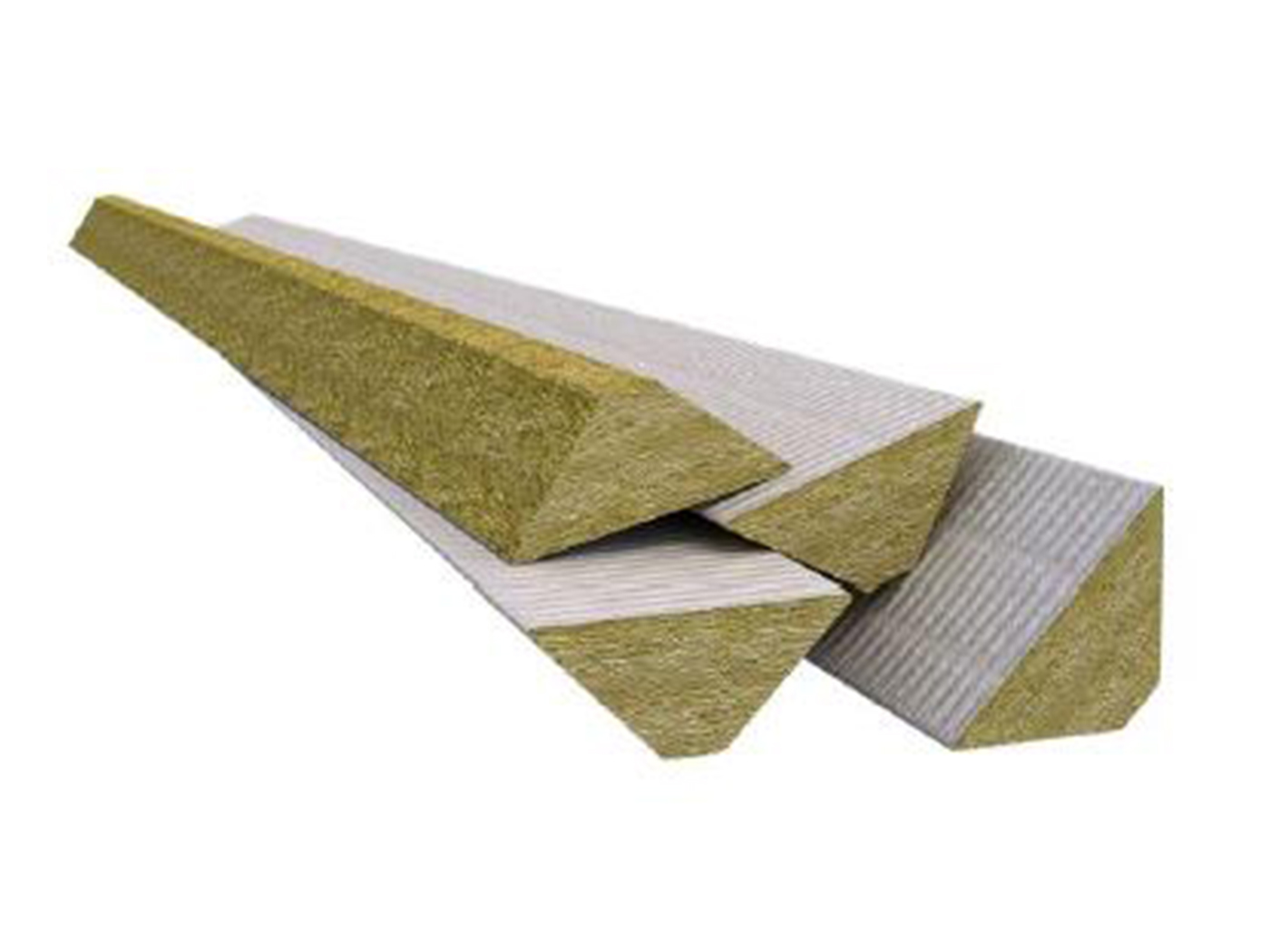

BauderROCK angle fillets are a profiled section of BauderROCK, manufactured with an integral mineral-coated glass fibre fleece on the uppermost surface, which ensures a strong bond can be achieved with the subsequently applied roofing membrane. The underside of the profile has the corner cut away to ensure the profile sits snugly against the upstand.
For use in conjunction with BauderROCK Insulation. The product is designed to fully support the waterproof membrane at 90° abutments, providing a smooth transition between the horizontal and vertical interface.
Product details
Characteristic | Test Method | Unit | Value |
---|---|---|---|
Length | mm | 1,200 | |
Width | mm | 15 (across back) 75 (across facing) | |
Thickness | mm | 30 | |
Surface finish (top) | g/m³ | 300 | |
Surface finish (bottom) | Raw | ||
Reaction to fire EN13501-1 | Class | Core material complying with Euroclass A1. With facing Euroclass A2-s1, d0. |
