BauderBLUE STORMcell System
Stormwater attenuation for SuDS at flat roof and podium level
BauderBLUE STORMcell

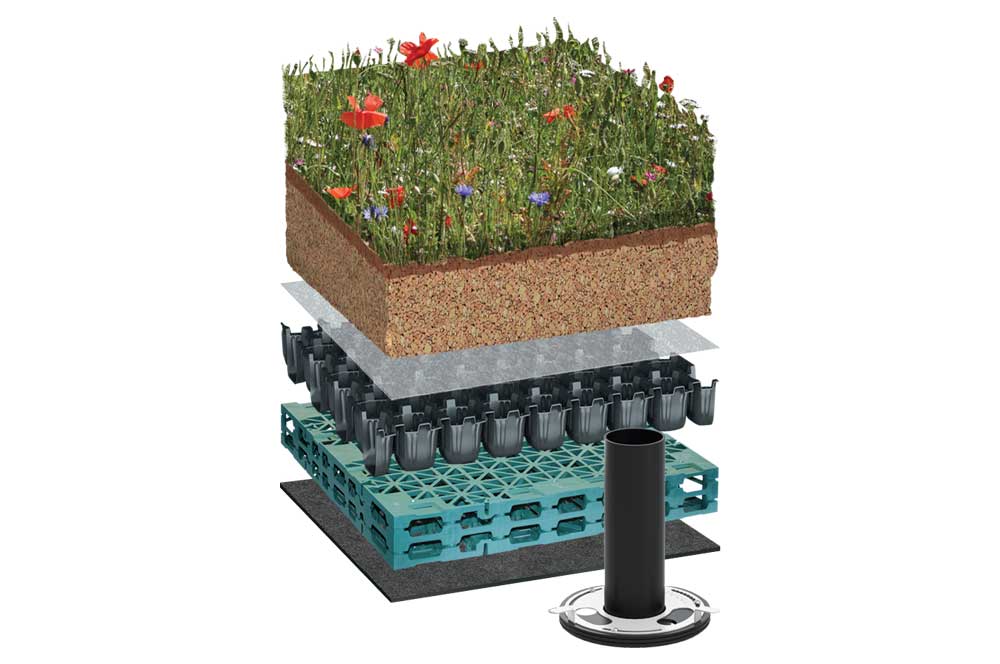

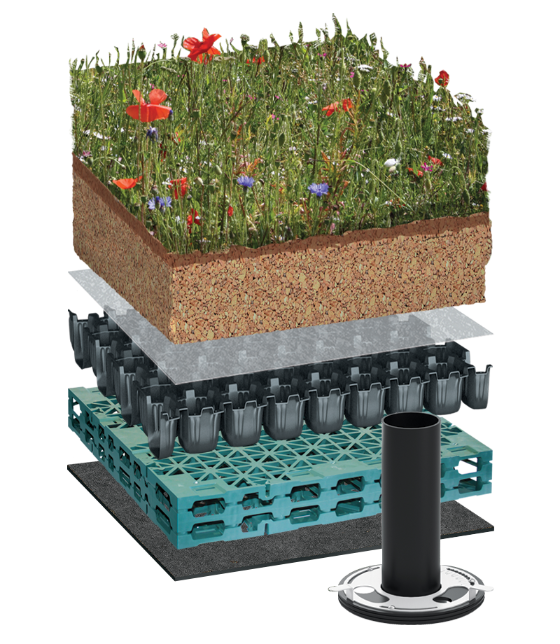

Creating a blue roof beneath a green roof finish for high volumes of stormwater attenuation.
The surface finish freely drains into the attenuating cavity forming layers that allow free-flowing movement of water to the flow restrictor outlets.
When to specify
BauderBLUE STORMcell system creates a blue roof beneath a roof finish for high volumes of stormwater attenuation. The surface finish freely drains into the attenuating cavity forming layers that allow free-flowing movement of water to the flow restrictor outlets.
This solution is designed to hold high volumes of stormwater during severe rain events and reduce the flow rate from the roof to acceptable levels for the drainage system.
The BauderGREEN RWR 100 creates the void space beneath the roof finish and can be used in a multi-layer solution for increased levels of water attenuation. The product is >95% void and achieves compressive strength ≥400 kN/m2 for use under green roofs, roof-mounted equipment, and hard landscaping surfaces.
Plus points
- Accommodates high volumes of water.
- Suitable as a base to build soft and hard landscaping including planters and paving details.
- BauderGREEN RWR 100 is made from recycled plastic.
- High levels of compressive strength, suitable to mount plant equipment.
- Ideal as part of a comprehensive BREEAM solution.
- Specify with our BauderSOLAR G LIGHT biosolar PV array.
- A comprehensive range of guarantee packages to fulfil cover requirements for the project. (dependent on system/product selection).
Roof finish options
- Extensive, biodiverse, and semi-intensive green roofs

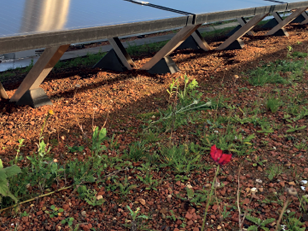

- BioSOLAR PV array
- Paving
- Stone ballast (downloads a System Summary)
Vegetation options
BauderBLUE STORMcell
The waterproofing system goes beneath, and it can be Reinforced Bitumen Membrane or Hot Melt.
In-depth and up-to-date product-specific technical data is available for each element within a system.
Download system summaries:
BauderBLUE STORMcell stone ballasted blue roof
BauderBLUE STORMcell biodiverse green roof
BauderBLUE STORMcell intensive landscaping
BauderBLUE STORMcell sedum green roof
Function
Vegetation
Additional information
Contact us today
Each project is unique in its requirements and we have examples of our work available for you to look at. If you are looking for the right roof system, then get in touch with our team to discuss your project’s individual needs.
