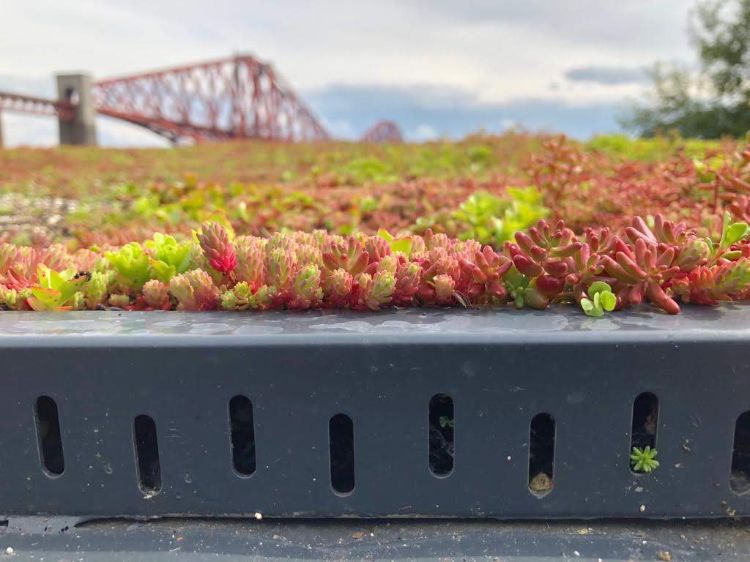

BauderEXTENSIVE LIGHTWEIGHTsedum
The sedum system enables green roofs to be installed on structures with very low-weight loadings.
BauderEXTENSIVE LIGHTWEIGHTsedum

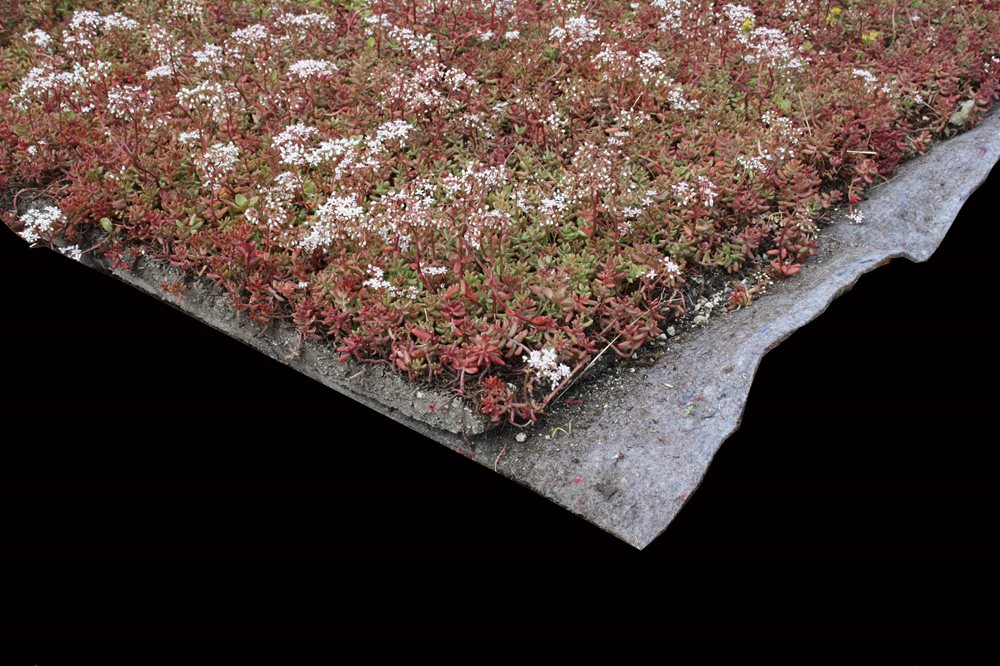

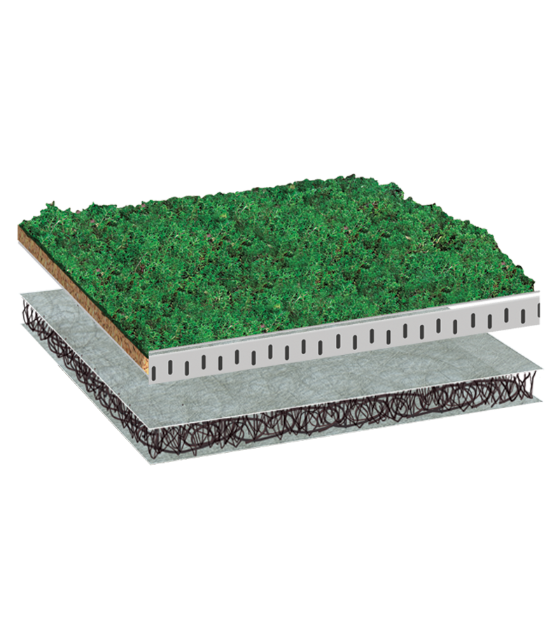

This is our lightest weight all-in-one system available. It comprises a mature sedum on 20 mm of extensive substrate and incorporates a multifunctional water retention and filter layer. The system is suitable for both new build construction and retrofit refurbishment projects. In most instances an additional drainage layer (BauderGREEN SDF) is not required though on roofs up to 2° or in areas of high rainfall, its inclusion may be necessary.
When to specify
This integrated cost-effective system is suitable for both new build construction and retrofit refurbishment projects and ideal for projects where weight and height of the build up is a primary consideration.
The vegetation blankets deliver instant greening of a roof so meet the need for a fully vegetated aesthetic finish compared to a seeded or plug planted roof that requires an establishment period.
Plus points
- Complete system for instant greening of a roof with mature sedum species.
- Most lightweight green roof of all our systems.
- Fire testing to BROOF(t4) for flat and sloped roofs on specific Bauder waterproofing systems as verified by the BBA in our certification
- Ideal for projects where there are weight, height, or cost constraints.
- Installed directly onto all types of our waterproofing.
- Comprehensive range of guarantee packages to fulfill cover requirements for the project.
Verified properties
- FLL Guidelines
Substrate, moisture retention mat, and filtration layers meet FLL guidelines. - Fire performance as part of the BTGRS system
TS1187:2012 BROOF(t4)

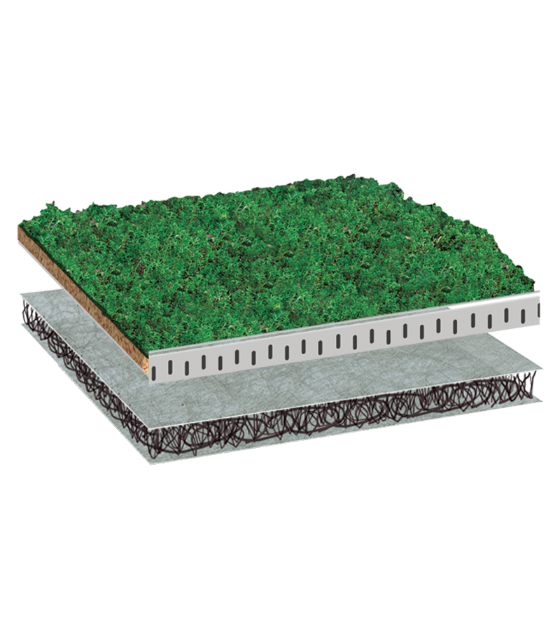

BauderEXTENSIVE LIGHTWEIGHTsedum
Formerly known as our BauderGREEN XF301 lightweight sedum system.
The waterproofing system goes beneath, and it can be Reinforced Bitumen Membrane, Hot Melt, Single Ply or Cold Applied Liquid.
In-depth and up-to-date product-specific technical data is available for each element within a system.
Download system summaries:
BauderEXTENSIVE LIGHTWEIGHTsedum XF 301 lightweight sedum
BauderEXTENSIVE LIGHTWEIGHTsedum XF 301 lightweight sedum - for pitched roofs
Function
Vegetation
Approvals, certification and guarantee
- A comprehensive range of guarantee packages to fulfil cover requirements for the project (dependent on system/product selection). For more information contact us for a sample guarantee outlining cover level, terms and conditions.
- Fire rating of BROOF(t4) for flat roofs and sloped roofs when tested to TS 1187.
- Substrate, moisture retention and filtration layers meet FLL guidelines.
Environmental credentials
- Substrates include a high proportion of recycled crushed brick and aggregate.
- Moisture retention layer manufactured from recycled materials.
Watch

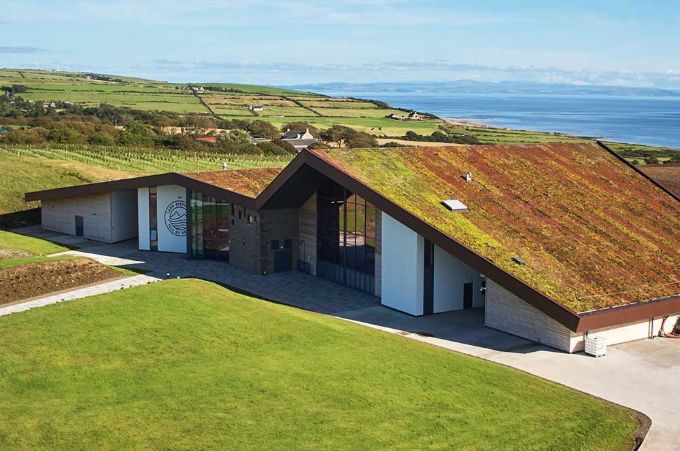

Lagg Distillery Sedum Blanket Green Roof
BauderEXTENSIVE LIGHTWEIGHTsedum system installed on Bauder Total Green Roof System (BTGRS) on the distillery built on the Isle of Arran.
Watch Video

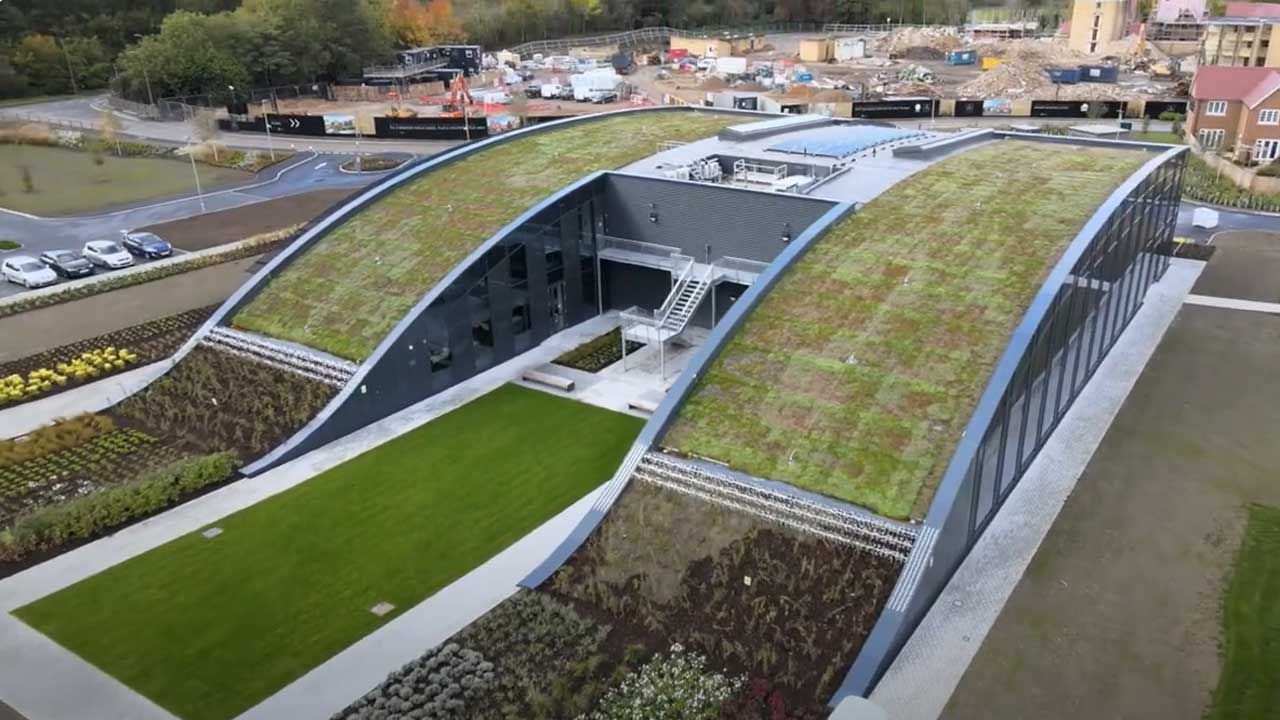

Centre for Agriculture and Biosciences International (CABI)
CABI was specified with a sedum green roof atop the Bauder Thermofol PVC waterproofing system on the main roof area.
Watch Video

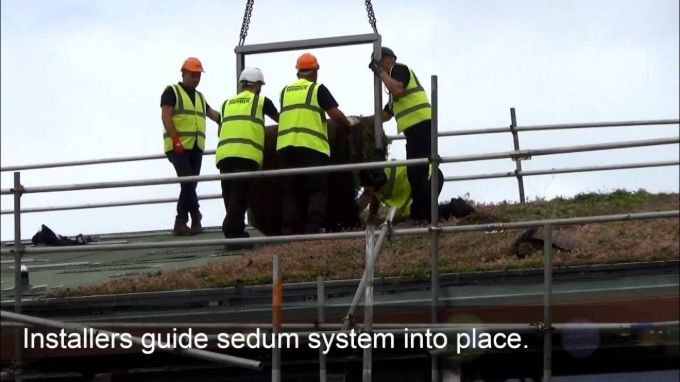

R&A Equipment Testing Centre sedum roof installation
Our all-in-one sedum blanket system being installed on a sloped roof. This project required 10m long rolls of BauderGREEN XF 301 vegetation.
Watch Video
