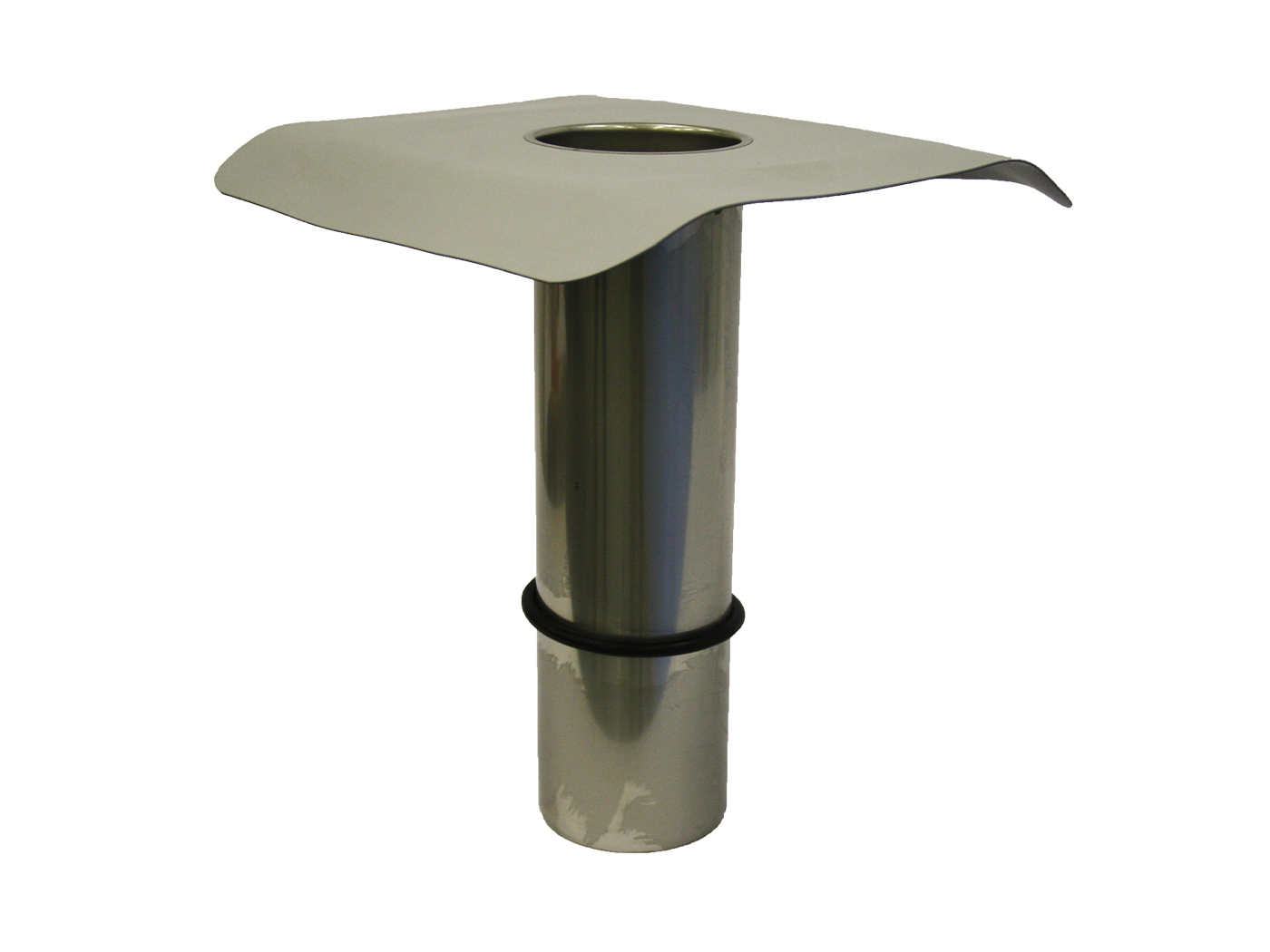

Thermofol steel rainwater insulated outlet
  • Thermofol steel rainwater insulated outlet

BauderTHERMOFOL Stainless Steel Rainwater Outlets

Ancillaries

A high performance stainless steel rainwater outlet with factory installed PVC membrane flange. Supplied with an O-ring and a wire ball leaf grill. Supplied with either a light grey or mid grey coloured PVC membrane flange.

Bauder outlets are sized to show the internal diameter of the spigot. For information on non-standard sizes and refurbishment applications, please contact Bauder Technical Department.

Product details

CharacteristicTest MethodUnitValue
Stainless steel base platemm230 x 230
PVC membrane flangemm330 x 330
Stainless steel spigot lengthmm400
Thermofol stainless steel outlet DN 70 mmmm70 - To suit 75 mm-97 mm rainwater pipe
Thermofol stainless steel outlet DN 100 mmmm100 - To suit 110 mm-128 mm rainwater pipe
Thermofol stainless steel outlet DN 150 mmmm150 - To suit 160 mm-178 mm rainwater pipe
Flow ratelitres/secThermofol stainless steel outlet DN70 mm: 2.39*
Thermofol stainless steel outlet DN100 mm: 4.45*
Thermofol stainless steel outlet DN150 mm: 6.76*

*Flow rate performance data using a 35 mm head of water (including leaf grille), based upon requirements of BS EN 12056:3:2000.

All further technical information is stated on the data sheet.
This product does not require a Declaration of Conformity (DoC) or Declaration of Performance (DoP).
