Improving drainage falls

Improving drainage falls

A key consideration on refurbishment projects.

Overview

A common issue with flat roofs is their inability to shed rainwater efficiently. This can be due to:

  • deficient original design
  • poor workmanship
  • deflection of the deck
  • a combination of all of the above

During refurbishment, the opportunity should be taken to address any ponding that exists, as it is likely to cause issues in the future.

If the problem is due to a lack of rainwater outlets, consideration should be given to the possibility of adding some. However, this may often be impractical due to complications with connecting to the existing drainage system.

Where the existing roof falls are poor on a refurbishment project, tapered insulation can be used as a convenient and cost-effective way to:

  • improve surface drainage
  • help improve the fall
  • redirect the fall to new drainage points, where feasible

However, it is not viable on every project, and we advise that you utilise the experience of your Bauder area technical manager for further advice.

Where tapered insulation is used, consideration should be given to the existing deck deflection and as to whether or not the default 1:60 falls will be enough to overcome this. This is because you may need to opt for insulation with a greater fall, e.g. 1:40, or reduce the deflection by using layers of built-up felt, hot bitumen, thin screeds, etc.

Tapered insulation

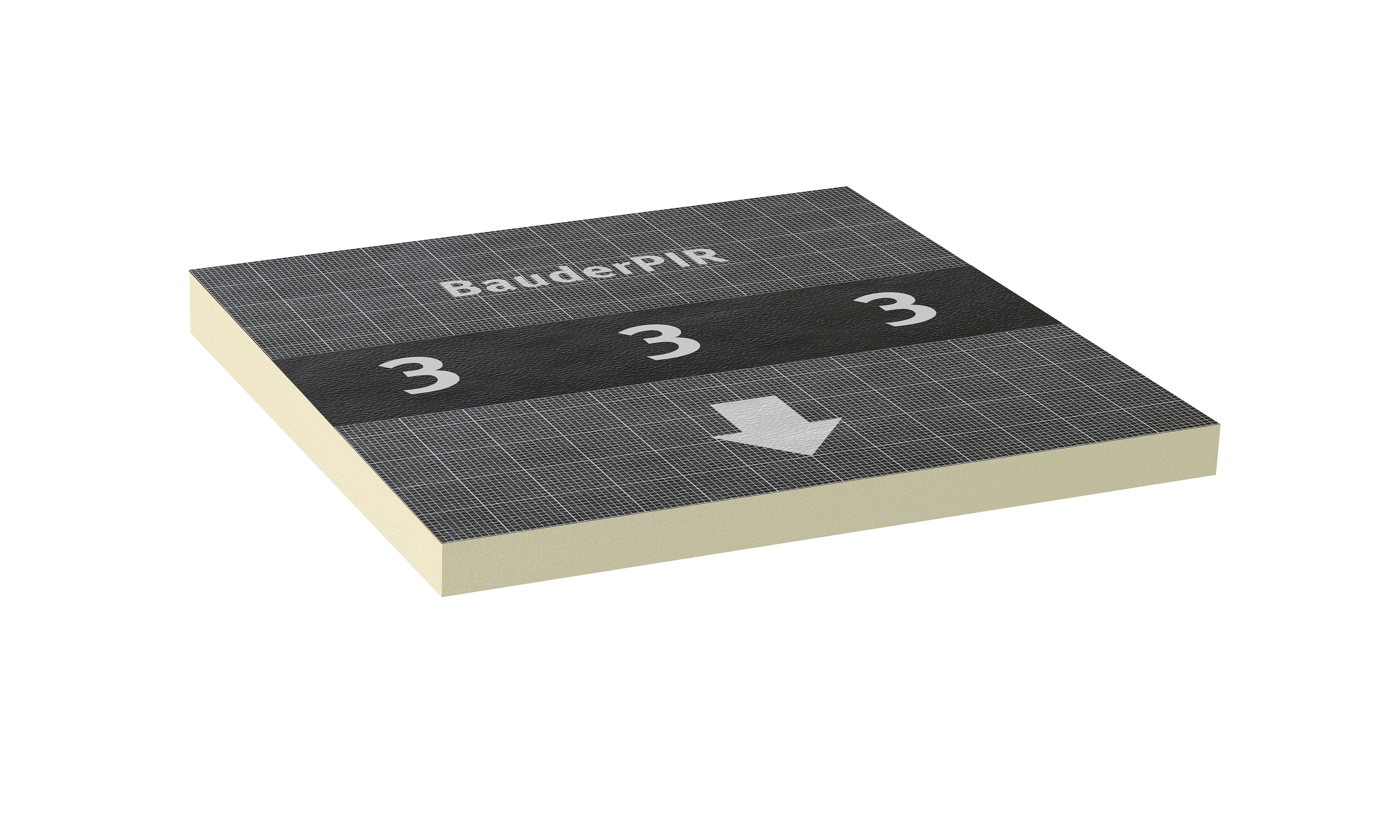

  • Tapered insulation example

    Tapered insulation example

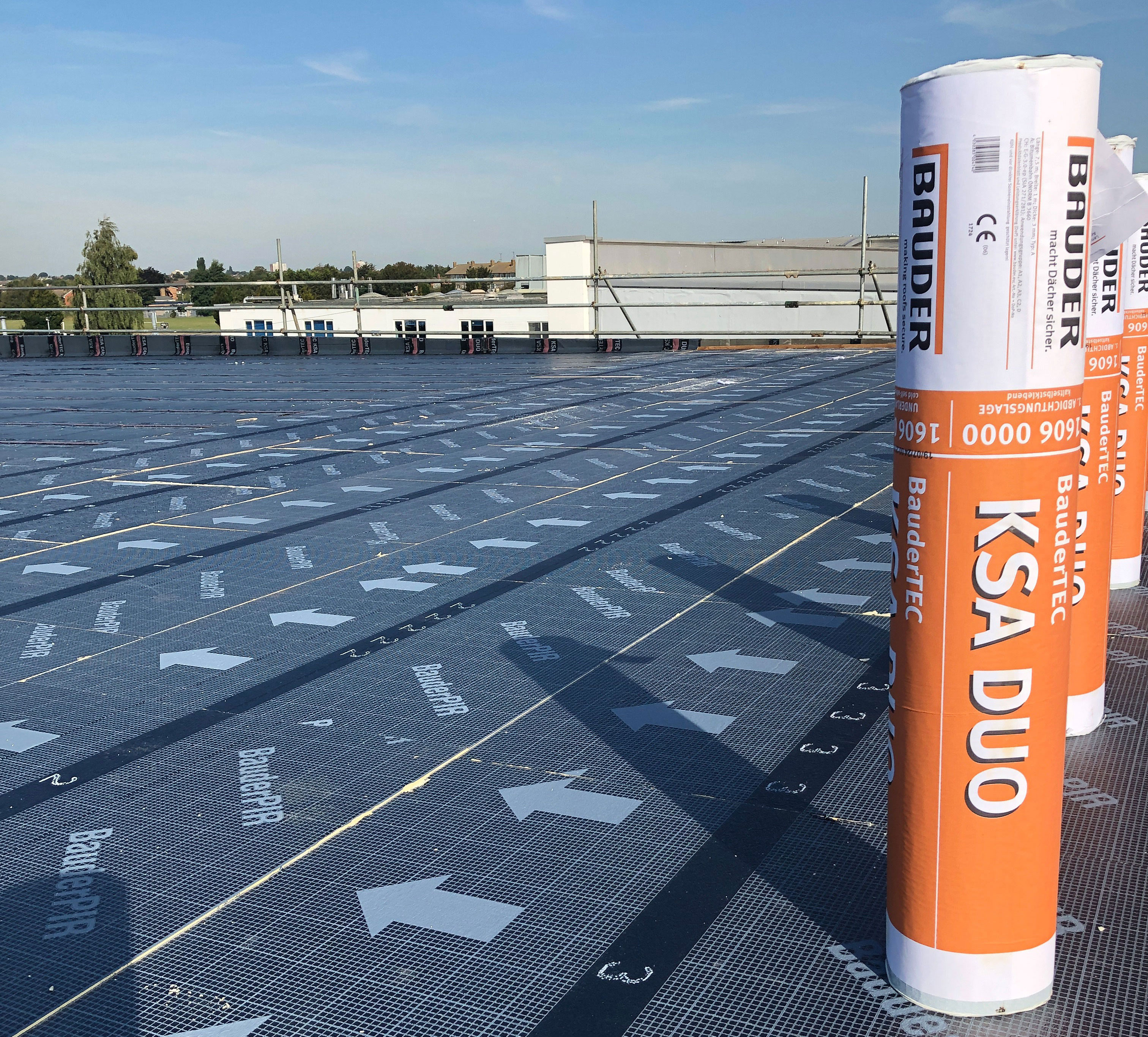

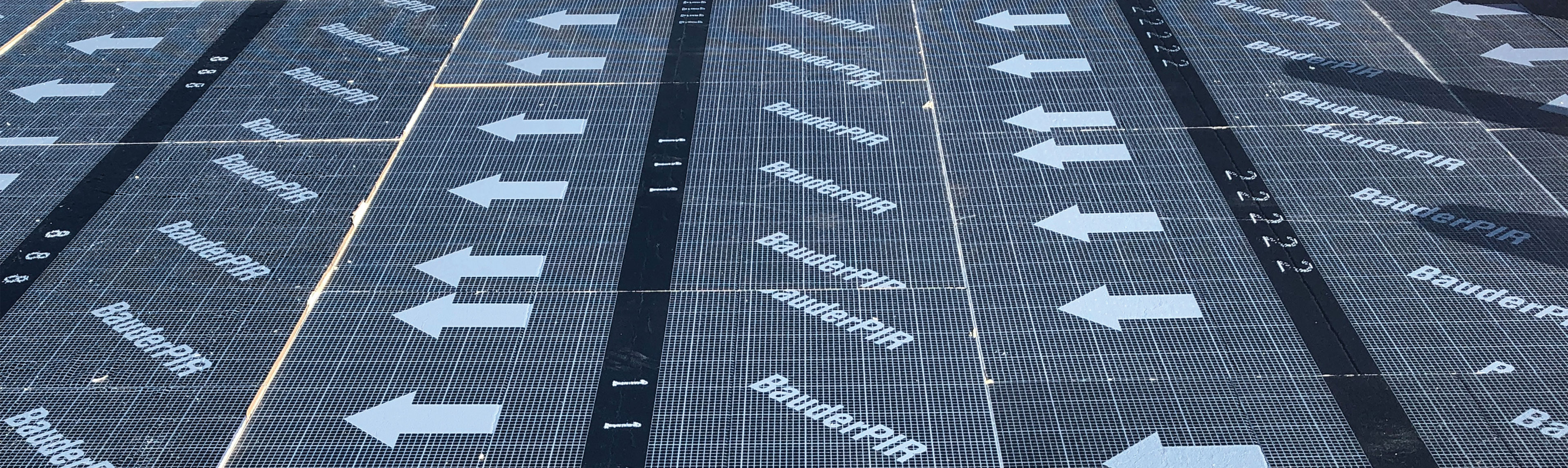

  • Tapered insulation installed on a roof

    Tapered insulation installed on a roof

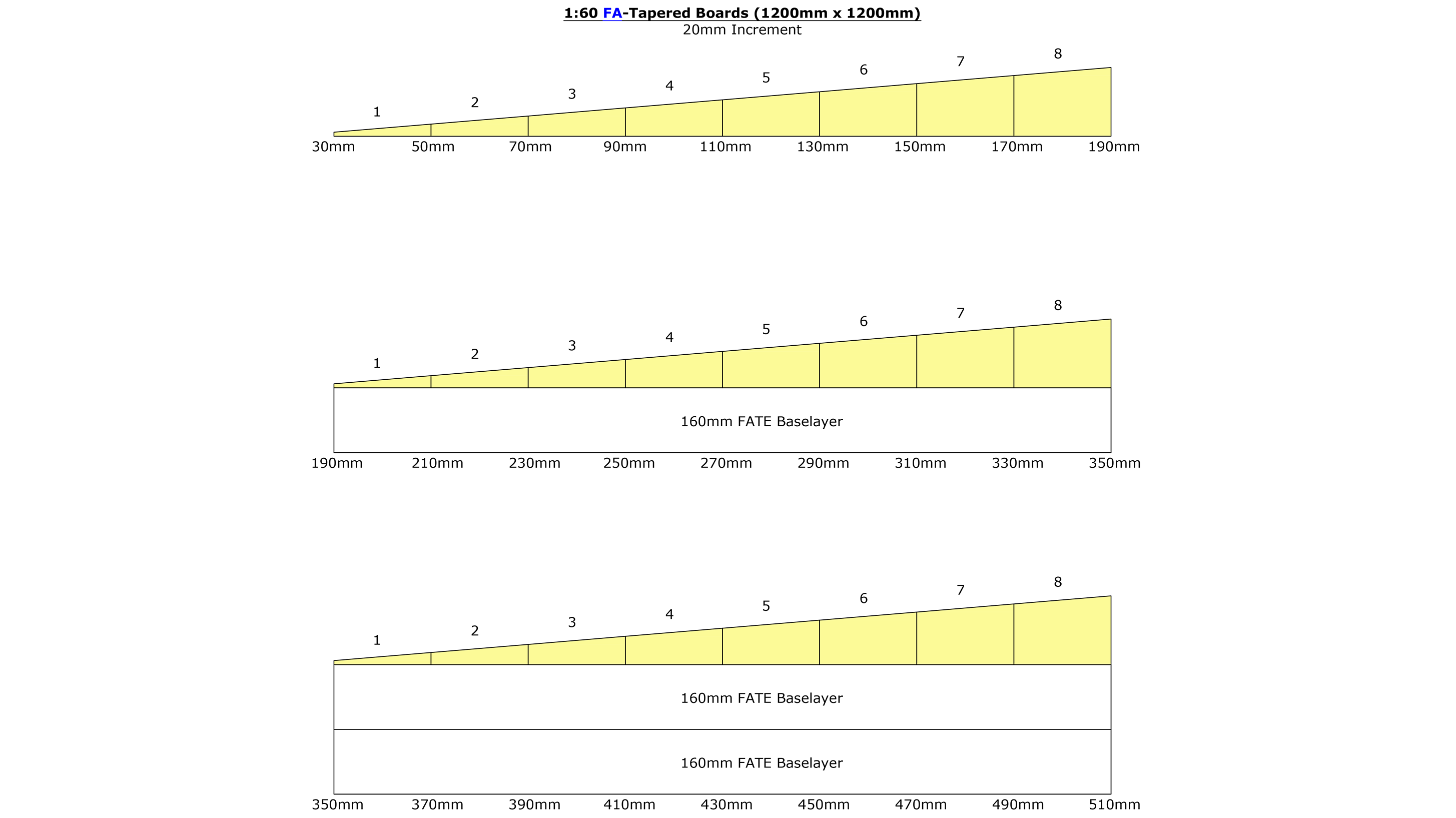

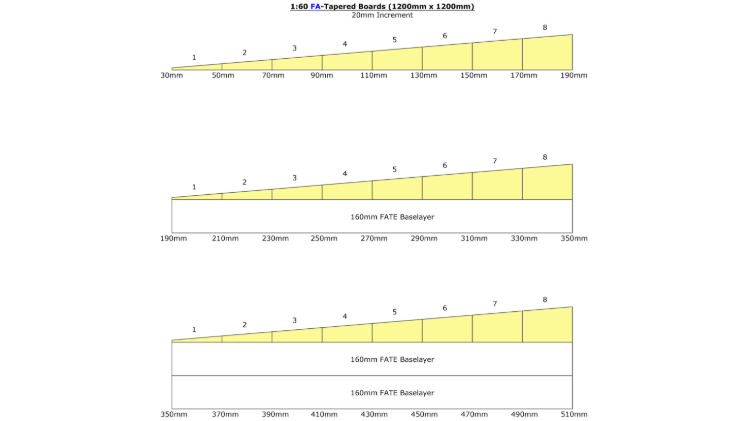

  • FA Tapered Board sizes

    FA Tapered Board sizes

Summary

Tapered insulation will ultimately create a thicker build-up to the roof system at certain points. It may also encroach on recommended upstand heights, or create a necessity to raise perimeter detailing, cavity trays, clerestory windows etc. and therefore may prove to be financially prohibitive. The other option is to add in additional outlets at the low points. However, this may not be a practical solution.

Bauder tapered insulation schemes can be designed to suit any particular project following a site survey by your Bauder area technical manager. Should this product be considered beneficial, this will be offered as an option.

Find a solution to improve drainage falls on your project

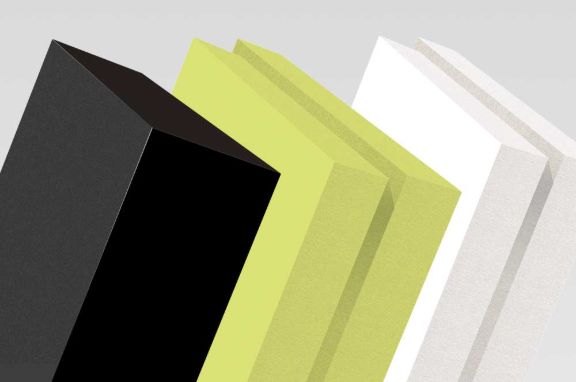

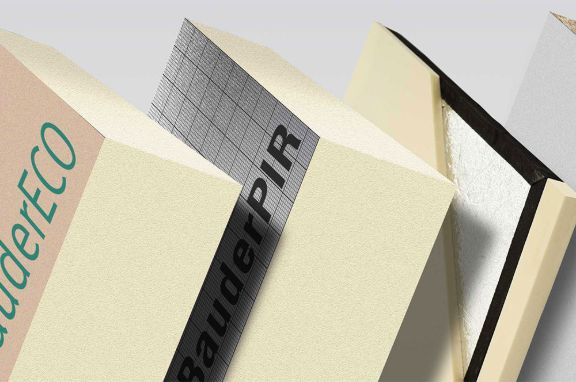

Effectively insulating a roof improves the energy efficiency of the building, reducing running costs, and has positive effects on the environment. There are different insulation options for constructing a warm roof where the insulation is encapsulated within the waterproofing system, or an inverted roof when the insulation is positioned above the waterproofing system.

We also have a range of products to support your project, including rainwater outlets.
