Bitumen letterbox insulated outlet DN205
  • Bitumen letterbox insulated outlet DN205
  • Bitumen letterbox insulated outlet DN205

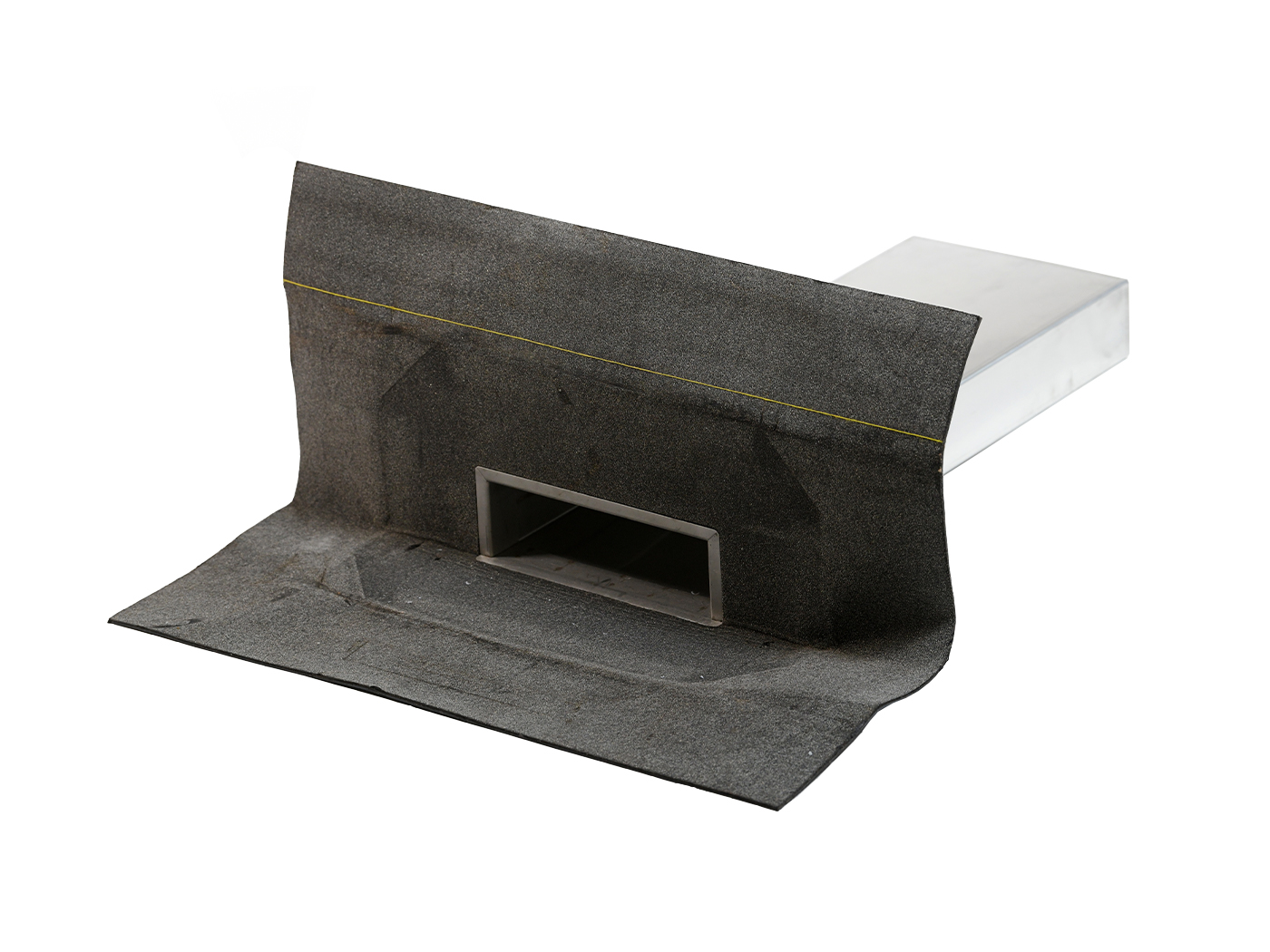

Bauder Bitumen Letterbox Parapet Outlet DN205

Ancillaries

A high drainage capacity stainless steel bitumen letterbox parapet outlet for horizontal roof drainage systems. Factory-bonded membrane flange attached to the outlet allows for ease of installation.

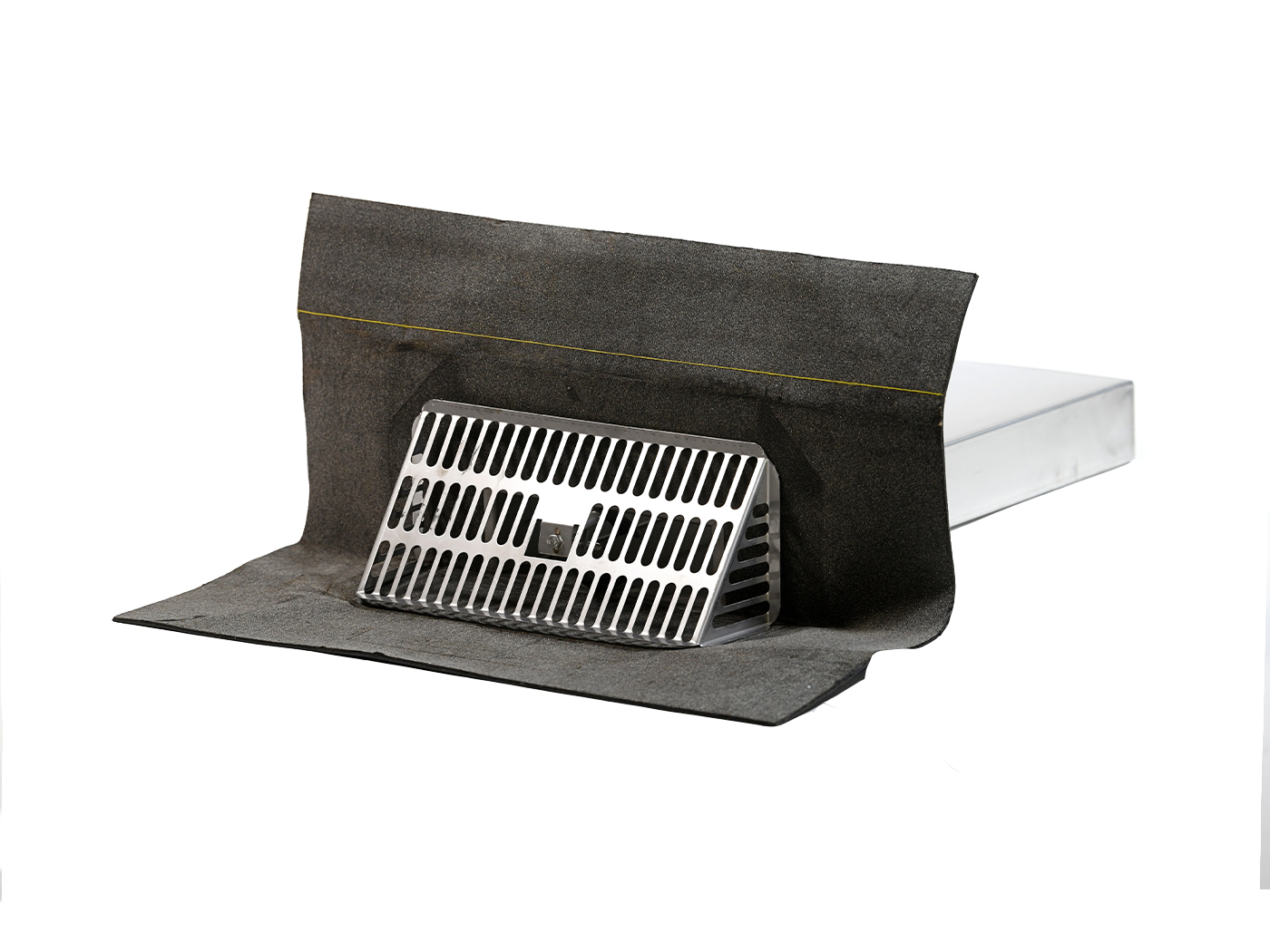

For use with Bauder bituminous waterproofing membranes when used as a through chute in walls or parapets to external drainage via a hopper head and downpipe. The product is designed to be used in warm, cold, and inverted roof scenarios.  To be used in conjunction with the letterbox parapet outlet leaf guard.


Product details

CharacteristicTest MethodUnitValue
Base platemm415 (width) x 175 (vertical) x 100 (horizontal)
Aperturemm205 (width) x 65 (height)
External diameter of spigotmm210 (width) x 70 (height)
Bitumen membrane flangemm610 width x 280 vertical x 210 horizontal
Stainless steel spigot lengthmm600
Weightkg4.44 (4.75 kg including leaf guard)

All further technical information is stated on the data sheet.
This product does not require a Declaration of Conformity (DoC) or Declaration of Performance (DoP).
