BauderHARDSCAPE
Creating low maintenance accessible areas such as walkways, access roads and terrace spaces.
BauderHARDSCAPE
Creating pathways, terraces, roadways and low maintenance accessible areas on green roofs through different construction solutions.
Ideal for:
- Roofs
- Terraces
- Podiums
- Plazas
- Roadways
When to specify
This type of green roof finish is used predominantly on courtyard podiums with heavy vehicular access and where keeping the total build-up height of the system, together with providing a completely flat paved surface is important in helping to reduce construction costs. This can be particularly effective when used to provide a permeable paving system.
Whatever the nature of your intensive green roof requirement, we would always recommend that you seek advice from the Bauder technical services department, to ensure that you achieve the optimum solution for your project, both on a performance and cost basis.
Pedestal supported
The Bauder range of pedestal support systems is designed to meet the exacting standards of finishing levels demanded by architects and clients when specifying open-jointed paving and decking finishes for hard-landscaped intensive rooftops.
The pedestals provide a lightweight and cost-effective solution when seeking to minimise the height of a free-draining paving system when compared to traditional bedded options.
Specified with our BauderBLUE STORMvoid system.
PB - Adjustable pedestals
DPH - Slope correcting pedestals
NC - Non-combustible pedestals
Plus points
- Broad base plate to spread loads.
- Works with paving, decking and grillage.
- Allows easy access to concealed services and waterproofing.
- Suitable for a wide range of landscaping applications.
Key applications
- Roofs and terraces.
- Plaza decks.
- Patios and balconies.
- Non-combustible build-ups.

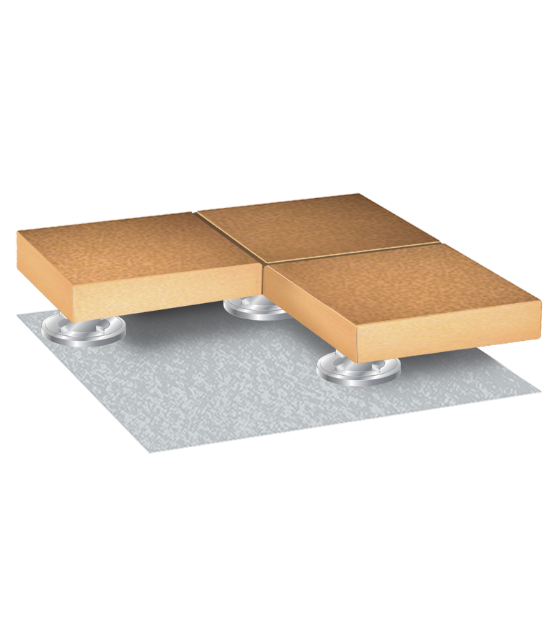

BauderHARDSCAPE with Pedestal Supported
Three options for specification:
- Bauder adjustable pedestals
- Bauder slope-correcting pedestals
- Bauder non-combustible pedestals
All further technical information is stated on the data sheet.
Function
Paving or Decking
Approvals, certification and guarantee
- A comprehensive range of guarantees for these systems.
- Landscaping elements manufactured to meet FLL guidelines.
Environmental credentials
- Pedestal units are easily recyclable at the end of their serviceable life
- Both DPH and PB pedestals are made from 95% recycled plastic
- The NC pedestal is made from recycled aluminium
Bedded paving
Creating pathways for pedestrian access and vehicular roadways for heavily trafficked areas with either moderate weight loadings or heavy loadings.
In applications where footpaths and roadways are required a drainage board is infilled to provide a stable base for construction capable of supporting the foot/vehicle traffic expected and to allow for uninterrupted drainage beneath the hard landscaping.
Hard landscaping for moderate loadings
This system is ideal for hard landscaping intensive green roof applications such as decking and paving where the anticipated loading is moderate.
Hard landscaping for heavy traffic areas
When the roof structure allows, hard landscaping can be designed to allow for vehicular access and the associated dynamic higher-weight loading.
Plus points
- Ideal construction base for permeable or bedded surfaces including roadways and paving
- Creates low-maintenance accessible spaces
- Versatile visual finishes
- Planter-held vegetation as well as full complement of landscaping
Moderate loadings

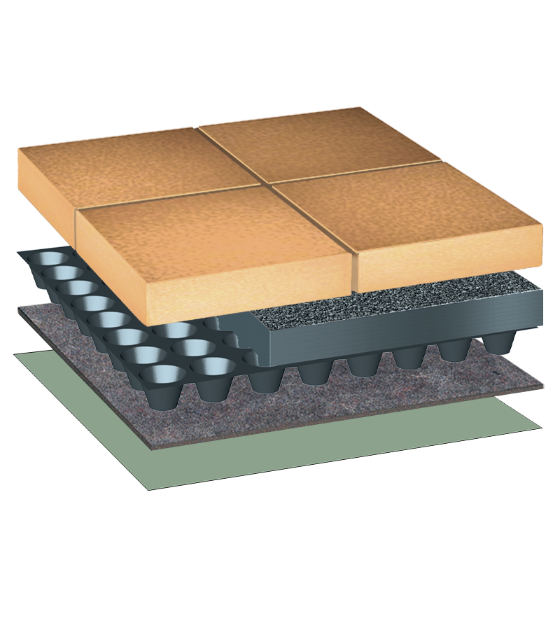

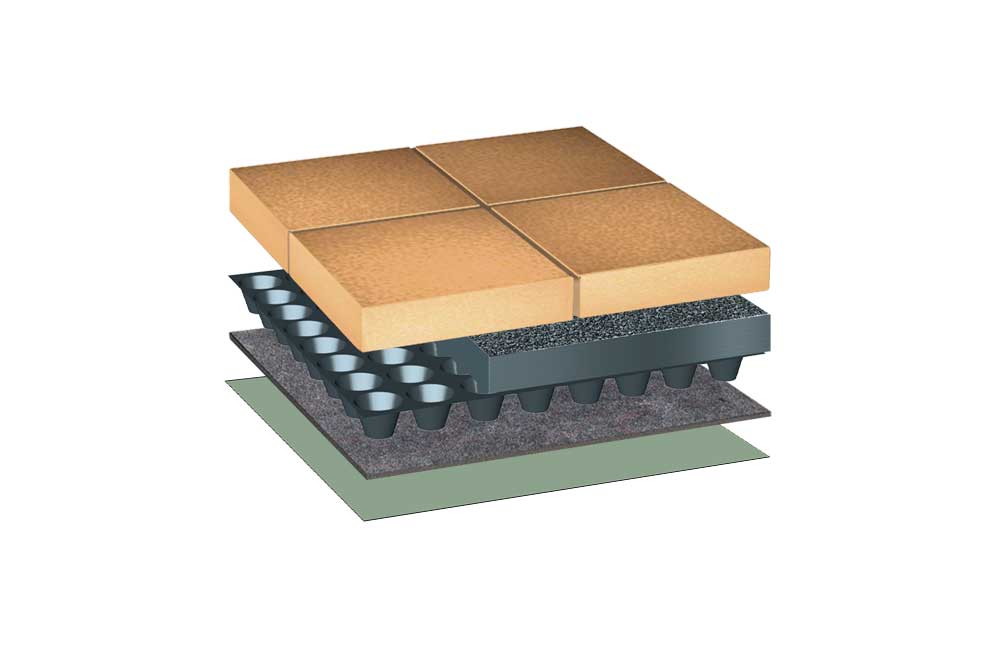

BauderHARDSCAPE with Bedded Paving for Moderate Loadings
Download system summary:
BauderHARDSCAPE bedded paving solution for pedestrians or light vehicles
Function
Paving
Heavy traffic areas

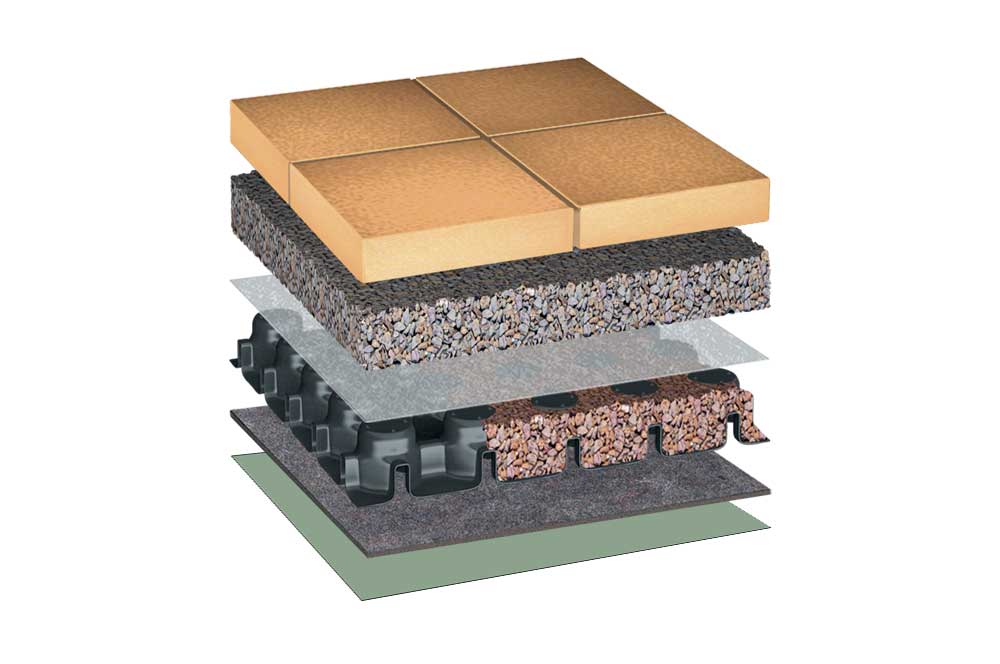

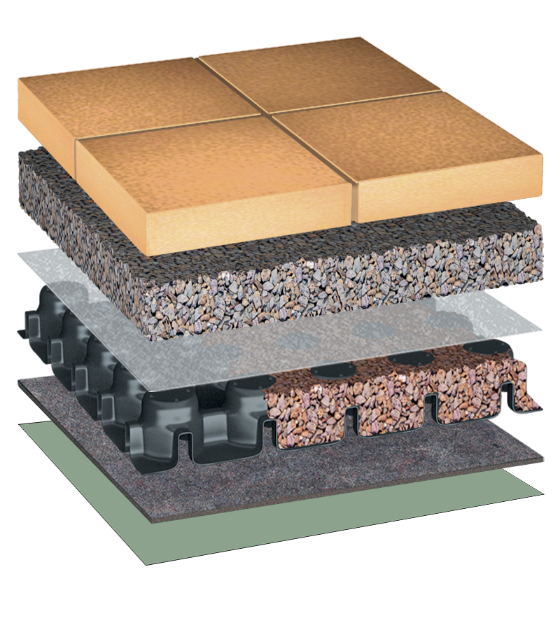

BauderHARDSCAPE with Bedded Paving for Heavy Traffic Areas
Download system summary:
BauderHARDSCAPE heavy duty bedded paving for heavy traffic
Function
Paving, decking or road surface
Additional information
Contact us today
Each project is unique in its requirements and we have examples of our work available for you to look at. If you are looking for the right roof system, then get in touch with our team to discuss your project’s individual needs.
