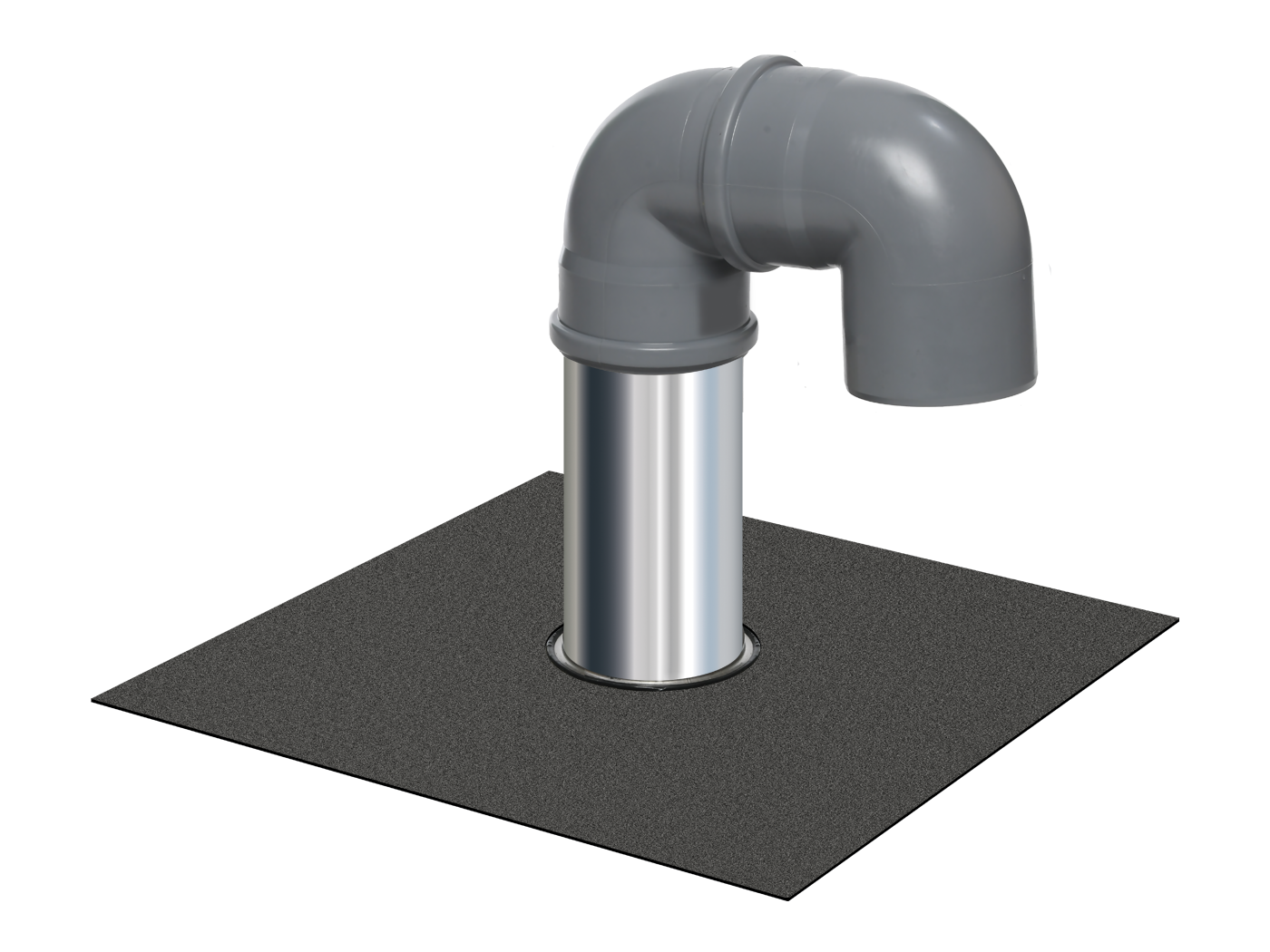

Bauder Bitumen Cable Duct DN110
Ancillaries
Designed to provide a weatherproof sleeve for cables or pipes which penetrate through a flat roof. Supplied with an integral SBS bitumen membrane flange for easy installation.
The two elbows direct cables and pipes either horizontally or vertically and shelter the exit point from rain or water ingress. Compatible with Bauder bitumen waterproofing systems.
Product details
Characteristic | Test Method | Unit | Value |
---|---|---|---|
Diameter of stainless steel baseplate | mm | 330 x 330 | |
Duct opening diameter | mm | 110 | |
Weight | kg | 1.96 | |
Duct height | mm | 380 |
