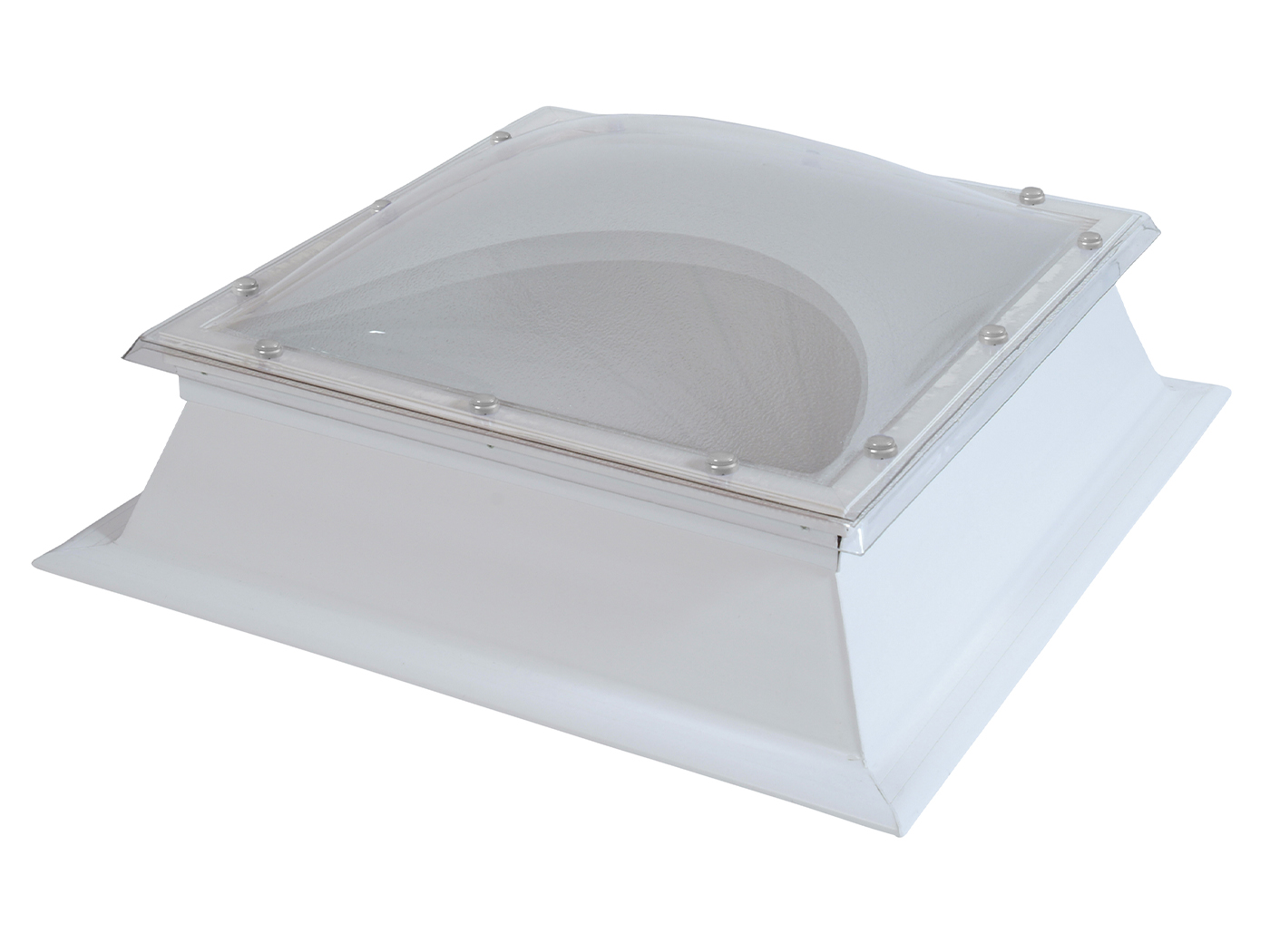

BauderDOME

The BauderDOME standard range of modular rooflights are designed to provide a simple but effective solution to the requirement for daylight and ventilation to the interior of flat roofed buildings. Available in a wide range of standard sizes, they offer a commercial alternative to the specifier on a limited budget whilst providing an excellent solution.

Glazing

The triple-skinned polycarbonate, dome or pyramid-profiled glazing can be supplied either completely clear or with a diffused inner skin.

Upstand

The integral upstand of BauderDOME is manufactured in UPVC at a height of 237 mm, to allow successful waterproofing. The profile of the upstand makes it easy to directly apply all kinds of our waterproofing membranes. Bitumen membranes, synthetic single ply membranes and cold applied liquid systems are all compatible.

Fire Performance

Fire performance classifications for BauderDOME are as follows:

• BS476 Part 7 – Class 1
• Building Regulation Classification - TPa. (Rigid). Can be deemed as class O.

Thermal Performance

BauderDOME with its integral GRP kerb and triple skin glazing achieves a Ud value of 1.8 W/m²K.

Ventilation Options

BauderDOME is supplied unvented as standard, but closable ‘hit and miss’ vents can be incorporated in 2 sides where required. Hinged, worm gear opening rooflights and units with a power fan incorporated into the glazing are also available.
