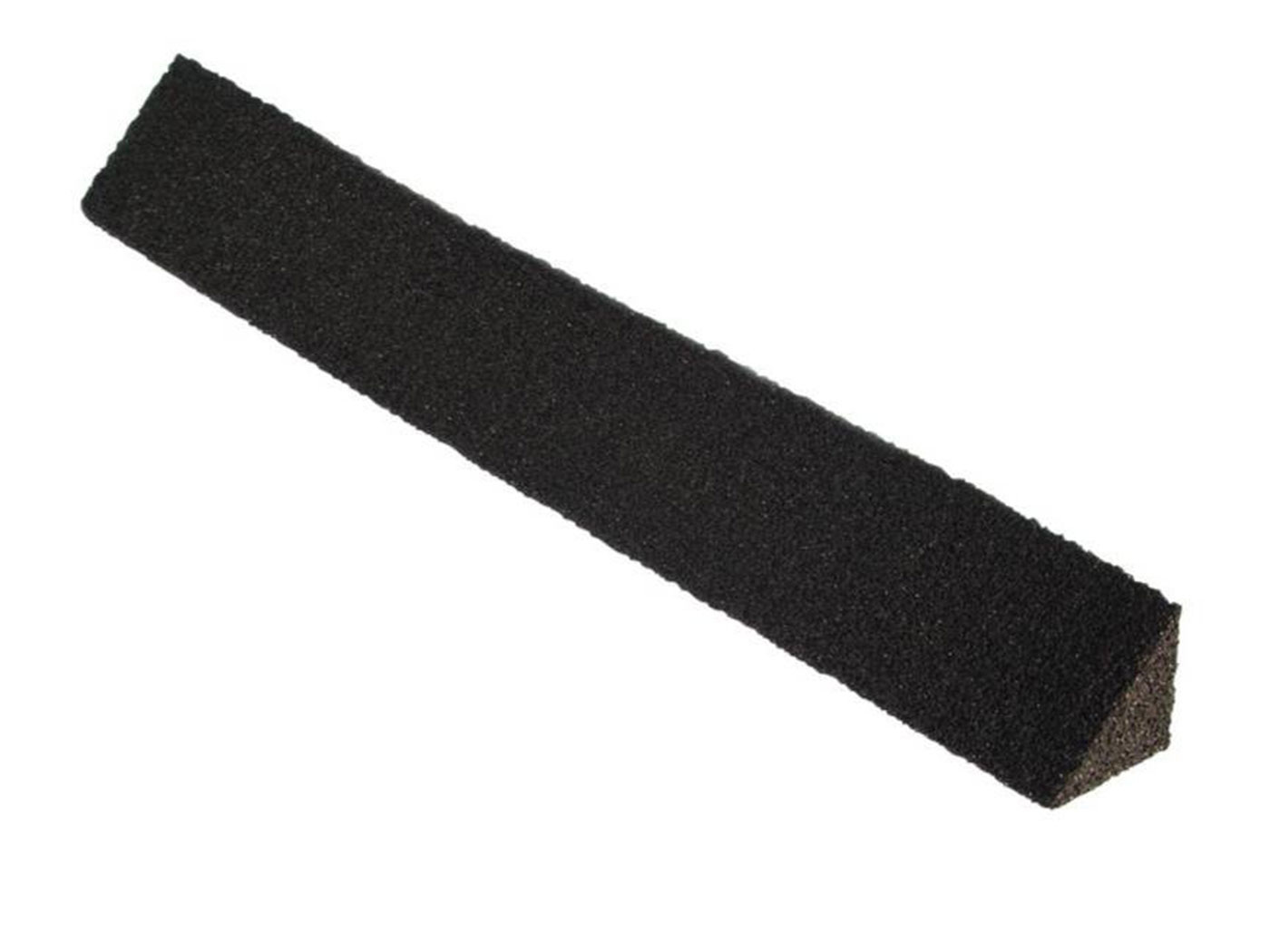

BauderGLAS Angle Fillet

Ancillaries

For use in conjunction with BauderGLAS Insulation. The product is designed to fully support the waterproof membrane at 90° abutments, providing a smooth transition between the horizontal and vertical interface.

BauderGLAS Angle Fillet is an un-faced triangular profiled section manufactured from specially graded recycled glass (≥ 60%) and natural raw materials which are available in abundant supply (sand, dolomite, lime). The insulation is totally inorganic, contains no ozone depleting propellants, flame resistant additives or binders. Without VOC or other volatile substances. The core material is non-combustible.


Product details

CharacteristicTest MethodUnitValue
DensityEN 1602kg/m³115
Length ± 5mmEN 822mm450
DimensionsEN 822mm50 x 50 (triangle)
Bending StrengthEN 12089kPaBS ≥ 450
Tensile StrengthEN 1607kPaTR ≥ 150

All further technical information is stated on the data sheet.
