School building with a single ply FPO waterproofing system

Thermoplan FPO

Single ply waterproofing

Thermoplan FPO System

Durable FPO single-ply system with high UV-resistant properties suitable for exposed and buried installations.

Bauder Thermoplan System achieves a CCPI mark which recognises that any claims made about it have been independently assessed across 11 clauses, providing greater clarity by offering improved product information. This gives specifiers confidence in the knowledge that they will have unambiguous information when deciding which of our systems is best for their new build or refurbishment project.

 Enhance with:

■ Extensive green roofs ■ Solar PV ■ Biosolar PV

Bauder thermoplan system CCPI

When to specify

Bauder Thermoplan FPO system is a lightweight and fast-track roofing solution for new build, refurbishment, and overlay scenarios. FPO Thermofol membranes of ≥1.5mm have been tested for root barrier penetration (EN 13948/FLL) making them suitable for extensive green roofs.

The membrane is available in two colours.

The system can also be specified with our BauderSOLAR F flat roof solution and BauderSOLAR G LIGHT for a biosolar system that combines an extensive green roof with a PV array.

Plus points
  • Membrane thicknesses available 1.5, 1.8 and 2.0mm
  • Thermoplan membrane has a pre-coated cross-weave polyester reinforcement
  • Acoustic rain noise solution with thirty-party testing laboratory SRL is available from Bauder Technical Department
  • FM Approved Assemblies as defined on the FM online database ‘RoofNav’.
  • Comprehensive range of guarantee packages to fulfil cover requirements for the project (dependent on system/product selection). For more information contact our technical department for a sample guarantee outlining cover level, terms and conditions
Assessments and verifications
  • CCPI Assessment 0007700025/1025:
    This system CCPI mark provides accuracy of information delivering assurance to specifiers
  • BBA Certificate 04/4120:
    Fire classification BROOF(t4) to BS EN 13501-5 tested to TS 1187 test 4 for external fire exposure on defined permutations of product build up
    Fire properties – membranes deemed “unrestricted” in certain circumstances as categorised in BBA certificate
    Service life > 30 years
  • EPD Certification:
    Membranes
    Insulations
  • FM Approval:
    Defined assemblies are approved for mechanically fastened and ballasted installations
Download specification resources

Mechanically fastened

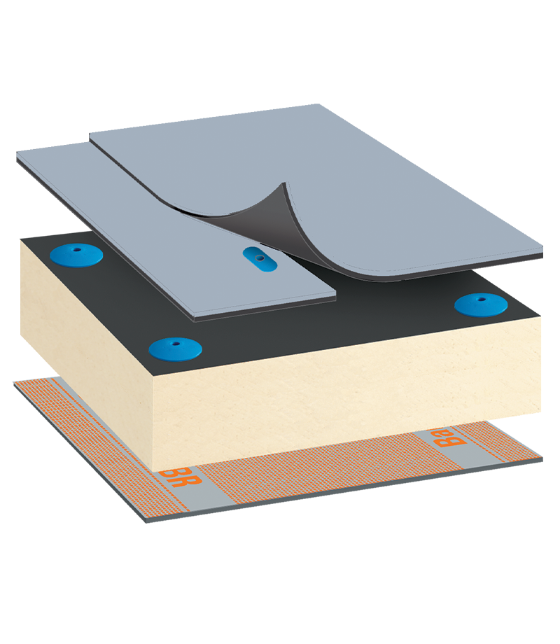

Thermoplan FPO system - Mechanically Fastened
Total Thickness (mm)142.1
Total Weight (kg/m2)6.6

Thermoplan FPO system - Mechanically Fastened

The FPO membrane and/or the insulation can be mechanically fixed.

In-depth and up-to-date product-specific technical data is available for each element within a system.

Download system summaries:
BauderThermoplan FPO Single Ply - mechanically fastened

Visit our Technical Centre for more information

Adhered

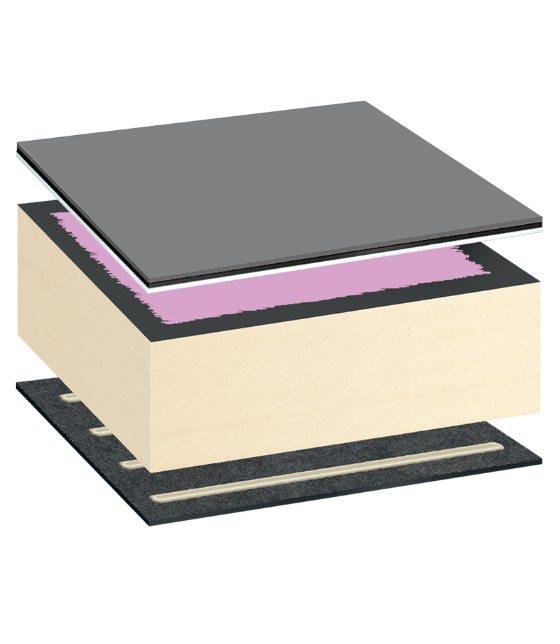

Thermoplan FPO system - Adhered
Total Thickness (mm)146
Total Weight (kg/m2)8.8

Thermoplan FPO system - Adhered

In-depth and up-to-date product-specific technical data is available for each element within a system.

Download system summary:
BauderThermoplan FPO Single Ply - adhered

Visit our Technical Centre for more information
Thickness (mm)2,0 (-5/+10%)
Weight (kg/m2)2,1 (-5/+10%) (mass per unit area)

Inverted

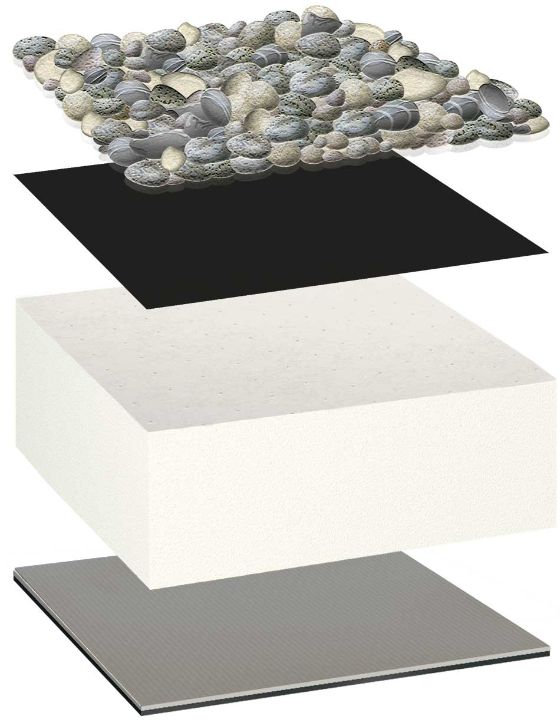

Thermoplan FPO Inverted system - Loose Laid
Total Thickness (mm)198.95
Total Weight (kg/m2)7.95

Thermoplan FPO Inverted system - Loose Laid

In-depth and up-to-date product-specific technical data is available for each element within a system.

Download system summaries:
BauderThermoplan FPO Single Ply - loose laid FPO with ballast surface

Approvals, certification and guarantee

  • A comprehensive range of guarantee packages to fulfil cover requirements for the project (dependent on system/product selection). For more information contact us for a sample guarantee outlining cover level, terms and conditions.
  • CCPI Assessment Number 0007700025/1025 for Bauder Thermoplan Systems.
  • BBA Certificate 04/4120.
  • Bauder GmbH ISO 50001:2011.
  • DD ENV 1187:2002 European Standard Fire Exposure.
Certifications
