BauderXPS (500) Inverted Insulation

Inverted Insulation

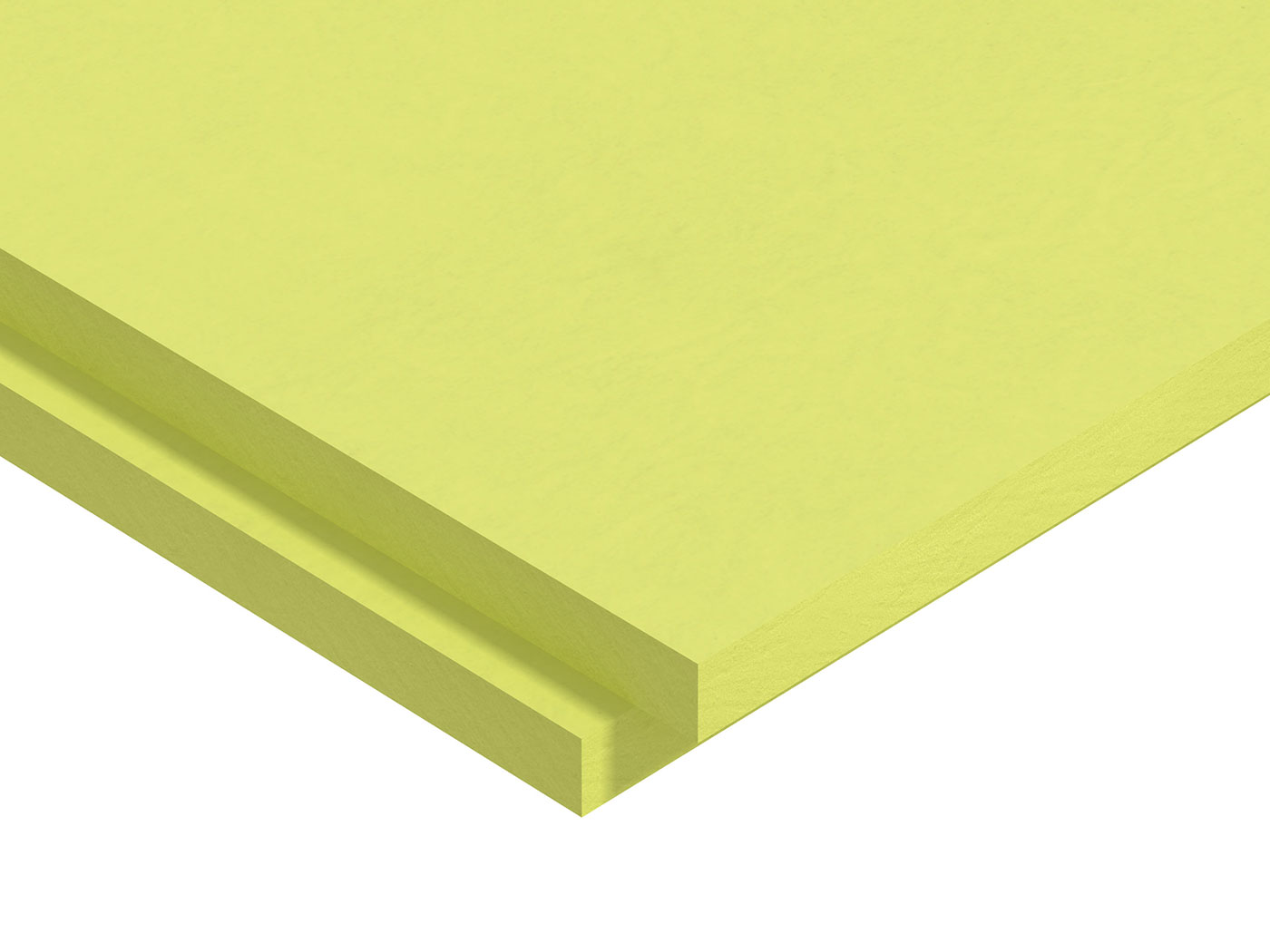

This rigid extruded polystyrene (XPS) insulation is rebated on all four sides to ensure thermal continuity.

This product is designed for use in inverted (protected membrane) roof systems and can be directly applied onto Bauder Reinforced Bitumen Membranes and Bauder Hot Melt. For guidance on compatibility with other membrane types, please contact Bauder.

It should be used in conjunction with BauderXPS WFRL Membrane before installing paving, decking, ballast, or for Extensive, Brown, Biodiverse, Intensive Green, Biosolar, and Blue Roofs.

For exposed vertical upstands, use with BauderXPS, BauderROCK NC 56 mm, or BauderGLAS Inverted Upstand Insulation.

Product details

CharacteristicTest MethodUnitValue
WidthBS EN 822 mm600 with rebated edge
LengthBS EN 822mm1,250 with rebated edge
Coverage-m20.75
ThicknessBS EN 823mm40, 50, 60, 70, 80, 100, 120

All further technical information is stated on the data sheet. This product does not require a Declaration of Conformity (DoC) or Declaration of Performance (DoP).
