BauderXPS (300) Inverted Insulation
Inverted Insulation

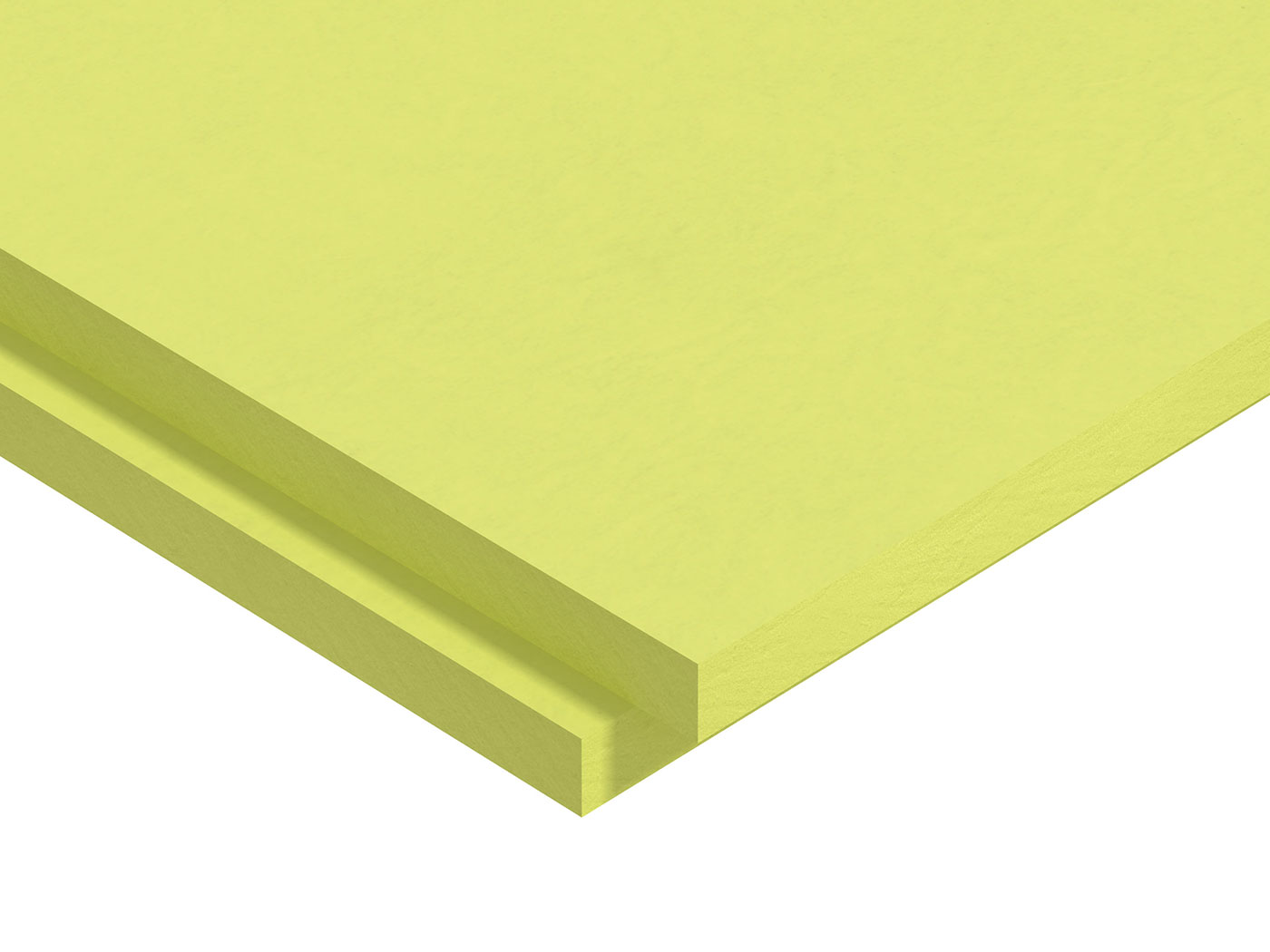

Rigid extruded polystyrene (XPS). This product is rebated on all four sides to ensure thermal continuity.
This product is for use within inverted (protected membrane) roof systems and can be laid directly onto Bauder Hot Melt and Bauder Reinforced Bitumen Membranes. Contact Bauder for advice relating to other membrane types.
Use in conjunction with BauderXPS WFRL Membrane prior to installing paving, decking or ballast or Extensive, Brown, Biodiverse, Intensive Green, biosolar and Blue Roofs. Use in conjunction with BauderXPS, BauderROCK NC 56mm or BauderGLAS Inverted Upstand Insulation to exposed vertical upstands.
For a comprehensive specification contact Bauder technical department.
Product details
Characteristic | Test Method | Unit | Value |
---|---|---|---|
Facing | Top: Unfaced Bottom: Unfaced | ||
Board Edge | Rebated edge | ||
Width | BS EN 822 | mm | 600 with rebated edge |
Length | BS EN 822 | mm | 1,250 with rebated edge |
Coverage | - | m2 | 0.75 |
Thickness | BS EN 823 | mm | 30, 40, 50, 60, 70, 80, 100, 120, 140, 150 |
Other matching results

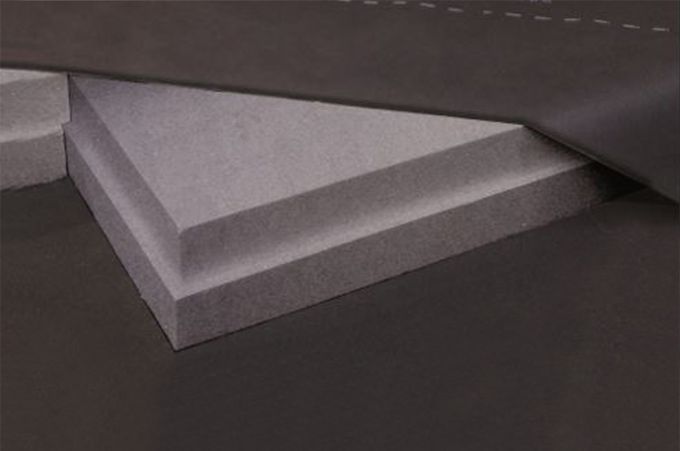

BauderJFRI PREMIUM+
