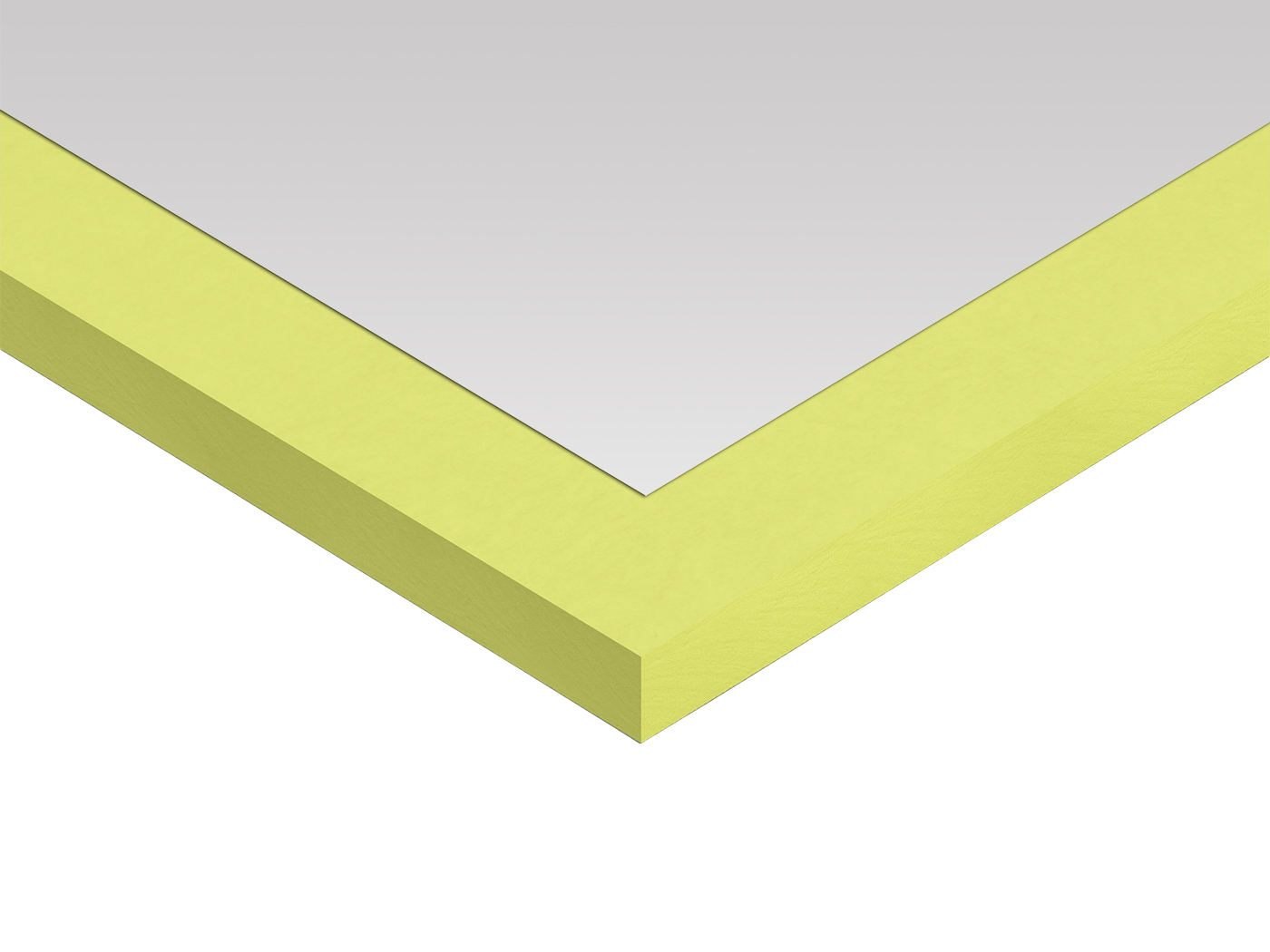

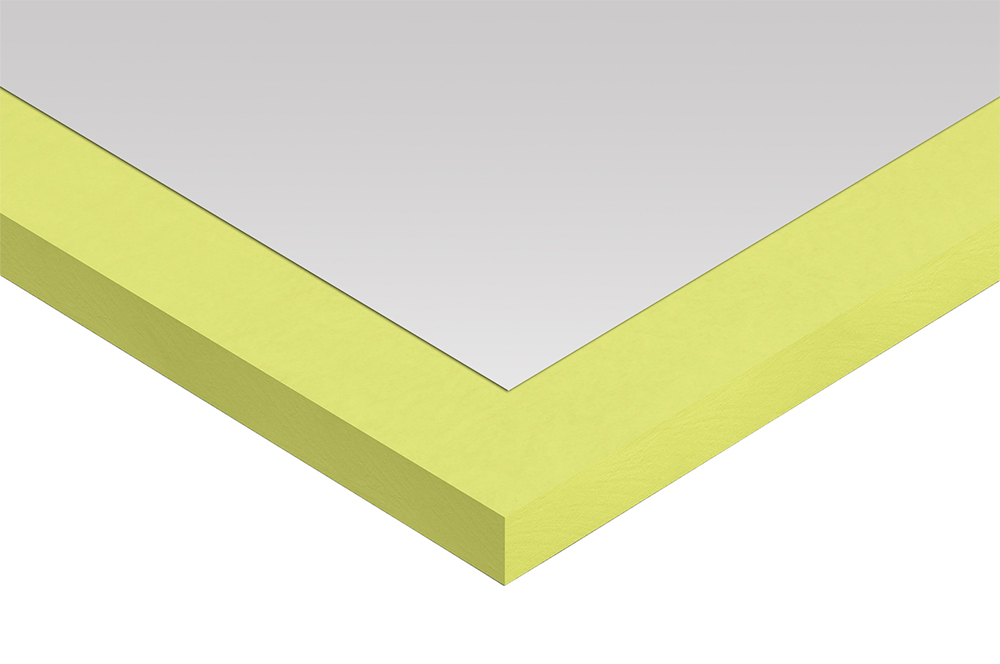

BauderXPS WFRL (Water Flow Reducing Layer) Membrane
Inverted Insulation
Flexible non-woven polyethylene membrane. UV stabilised to reduce degradation by sunlight. Resistant to passage of liquid water. Membrane is breathable, therefore will not create a condensation trap within the construction. Minimises insulation thicknesses required to achieve specified U-Values by reducing the cooling effect of rainwater build up between waterproofing and insulation.
It is supplied as part of the BauderXPS (300) Inverted Insulation System, situated on top of the inverted insulation and under the specified surfacing.
For a comprehensive specification contact Bauder technical department.
Product details
Characteristic | Test Method | Unit | Value |
---|---|---|---|
Facing | Top: White Bottom: White | ||
Width | BS EN 13111 | m | 3.0 |
Length | BS EN 13111 | m | 100 |
Thickness | BS EN 13111 | mm | 0.17 |
Weight | kg/m2 | 0.067 | |
Weight per roll | kg | 20 |
Other matching results

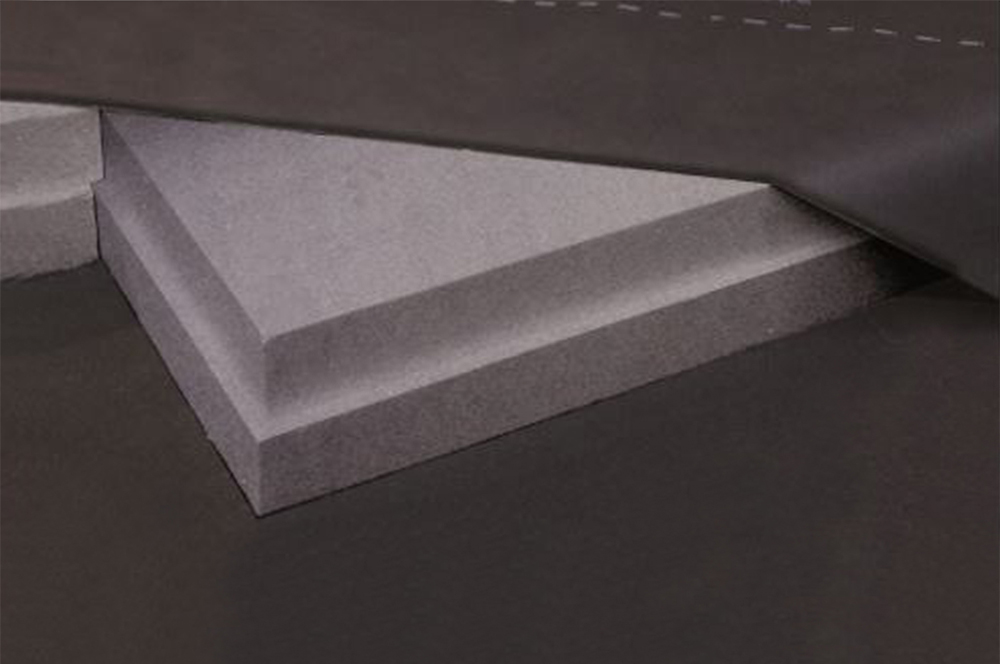

BauderJFRI PREMIUM+
Inverted Insulation

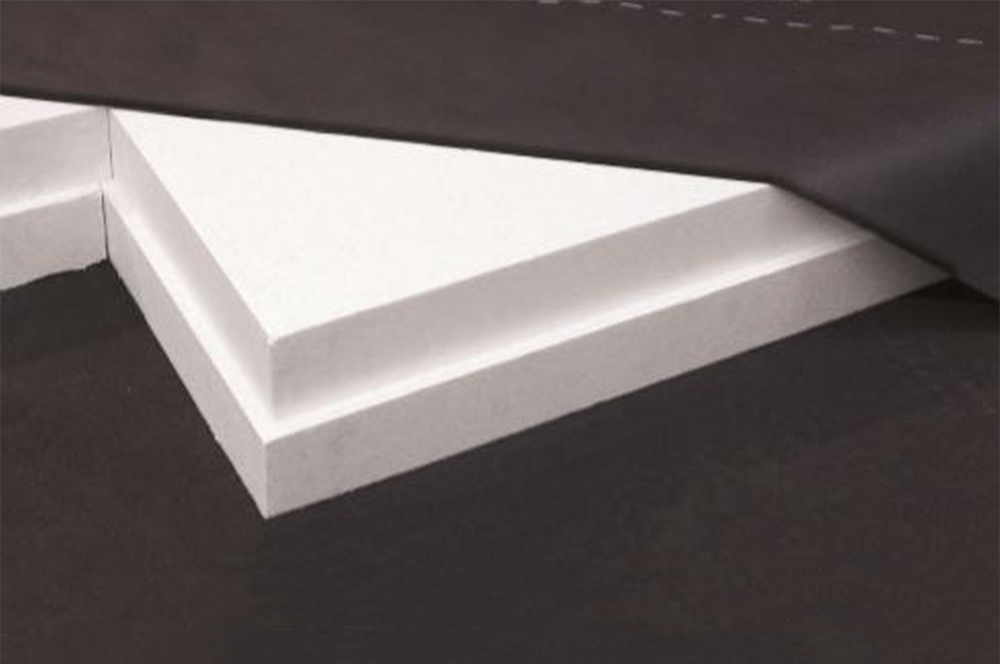

View detailsBauderJFRI PREMIUM (300)
Inverted Insulation
View detailsBauderJFRI WFRL Membrane (Water Flow Reducing Layer)
Inverted Insulation
View detailsBauderXPS (300) Inverted Insulation
Inverted Insulation

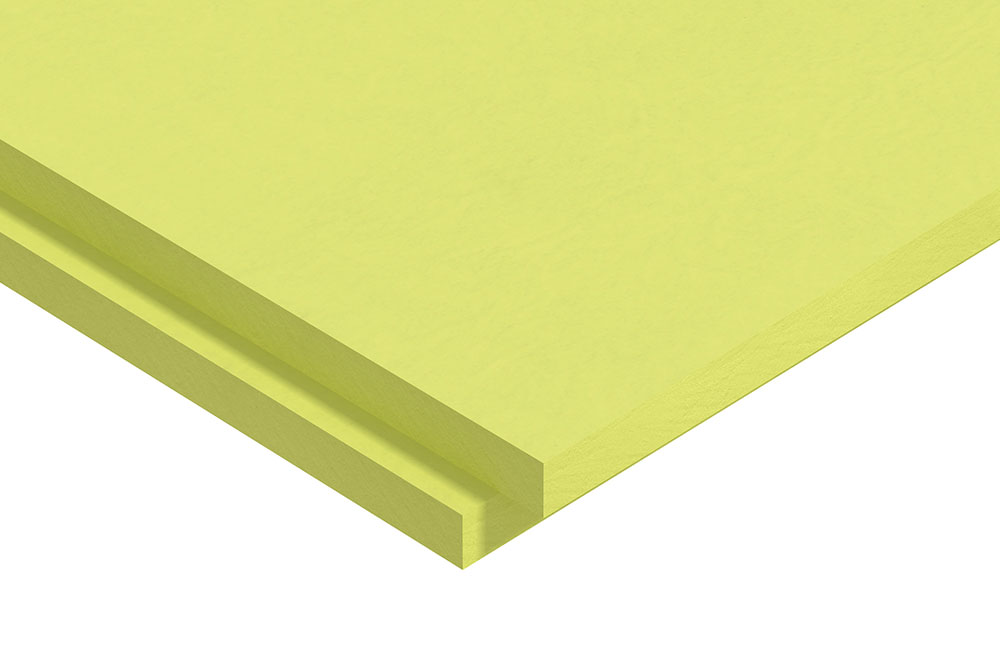

View detailsBauderXPS (500) Inverted Insulation
Inverted Insulation

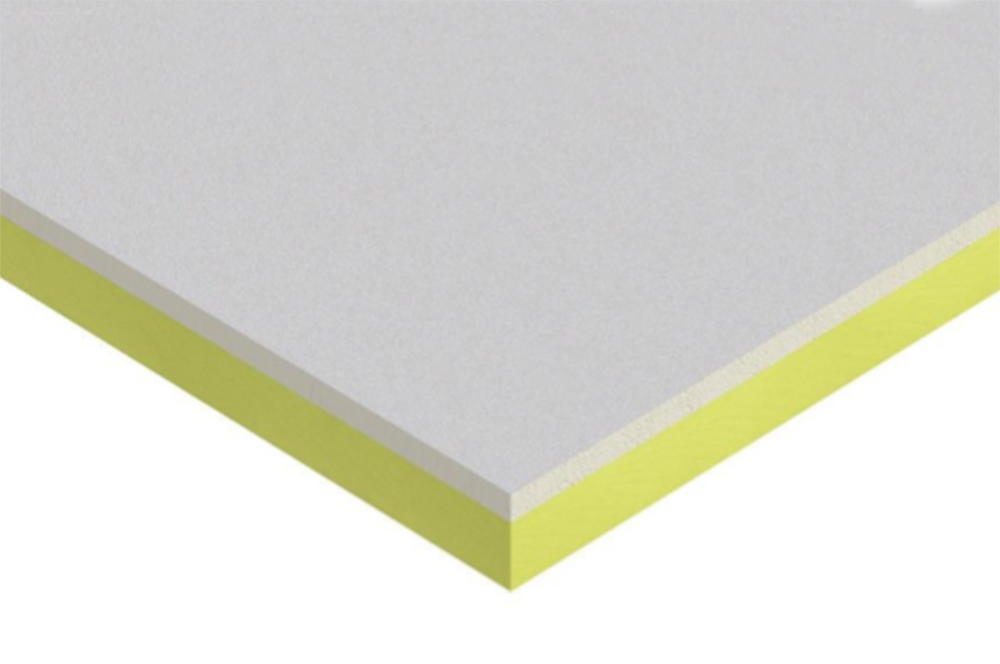

View detailsBauderXPS Upstand Insulation
Inverted Insulation
View detailsBauderXPS WFRL (Water Flow Reducing Layer) Membrane
Inverted Insulation

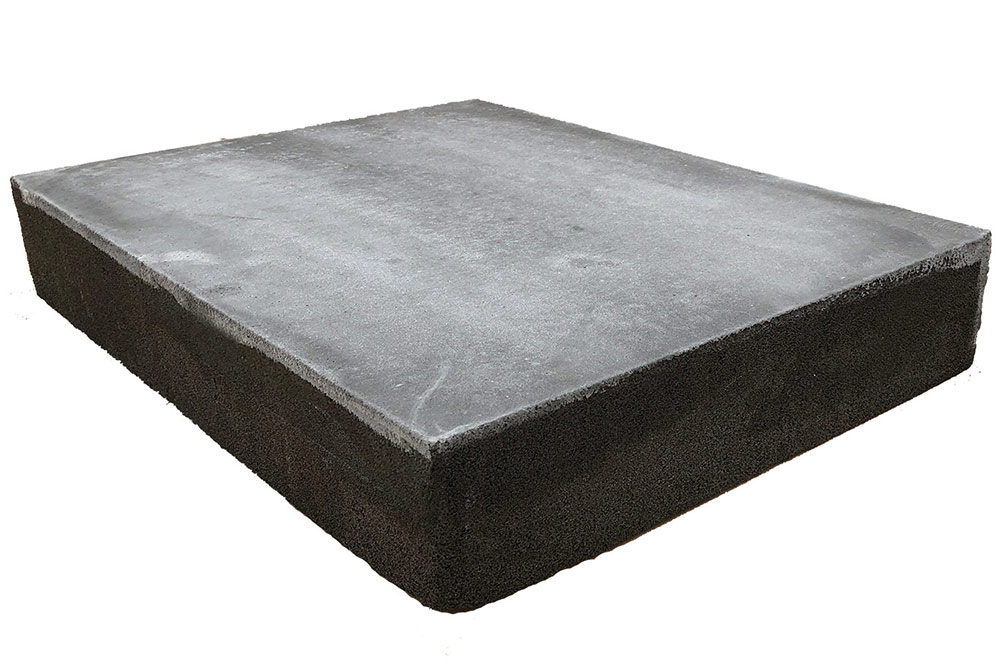

View detailsBauderGLAS Inverted Insulation
Inverted Insulation

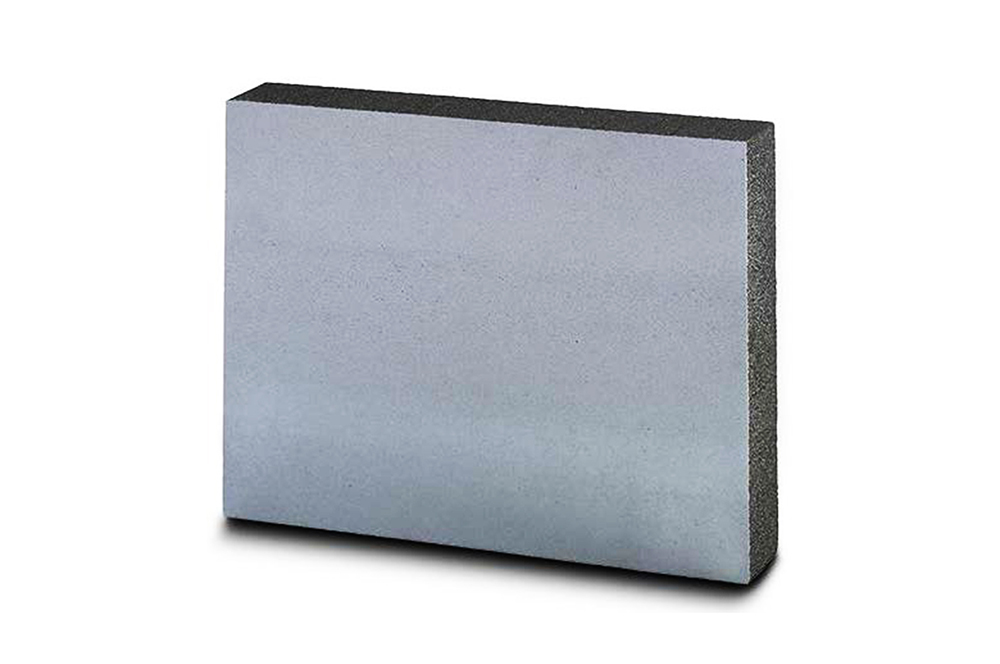

View detailsBauderGLAS Inverted Upstand Insulation
Inverted Insulation

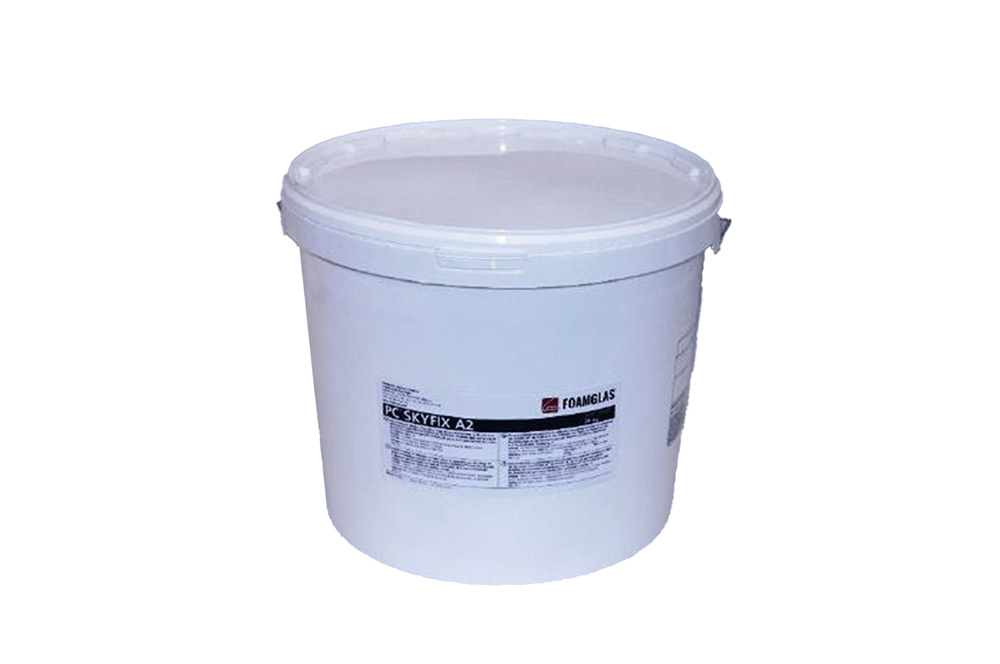

View detailsBauderGLAS Inverted Insulation Repair Kit
Inverted Insulation

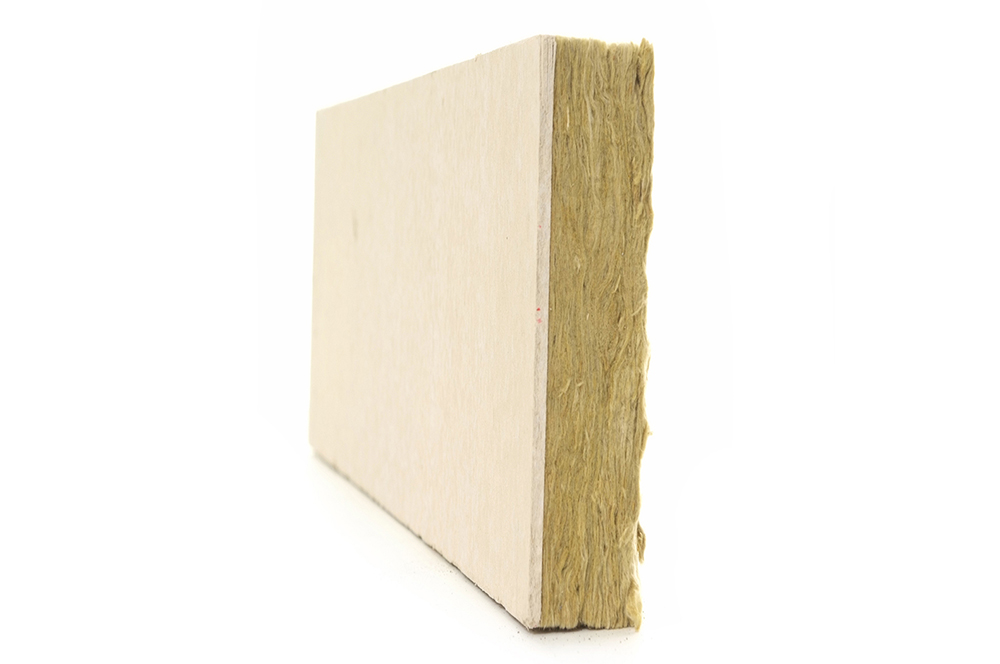

View detailsBauderROCK NC 56mm Upstand Insulation
Inverted Insulation

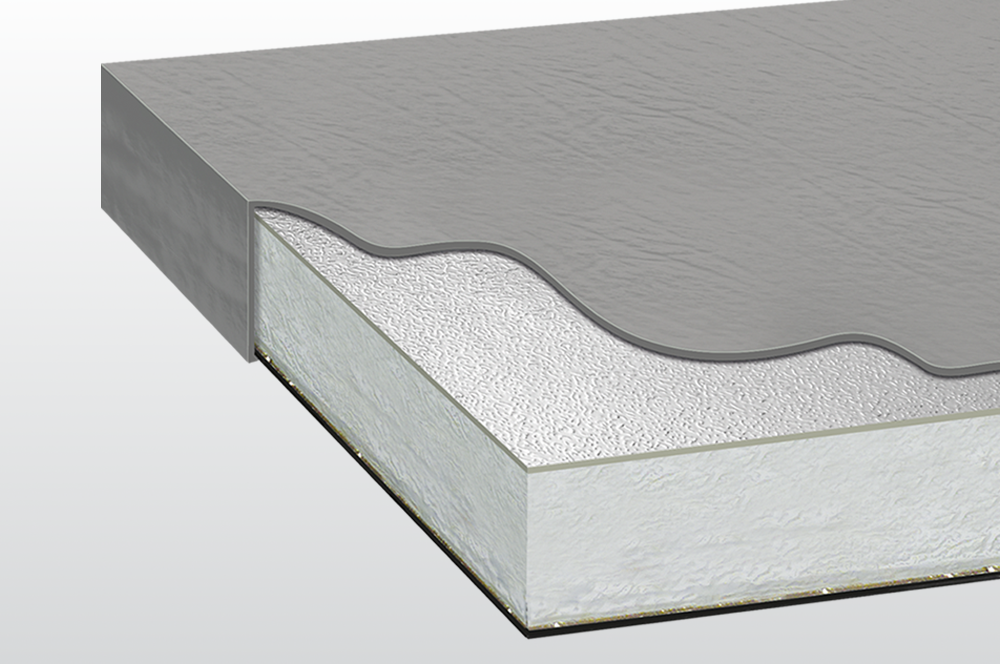

View detailsBauderVIP INV
