BauderGLAS Inverted Insulation
Inverted Insulation

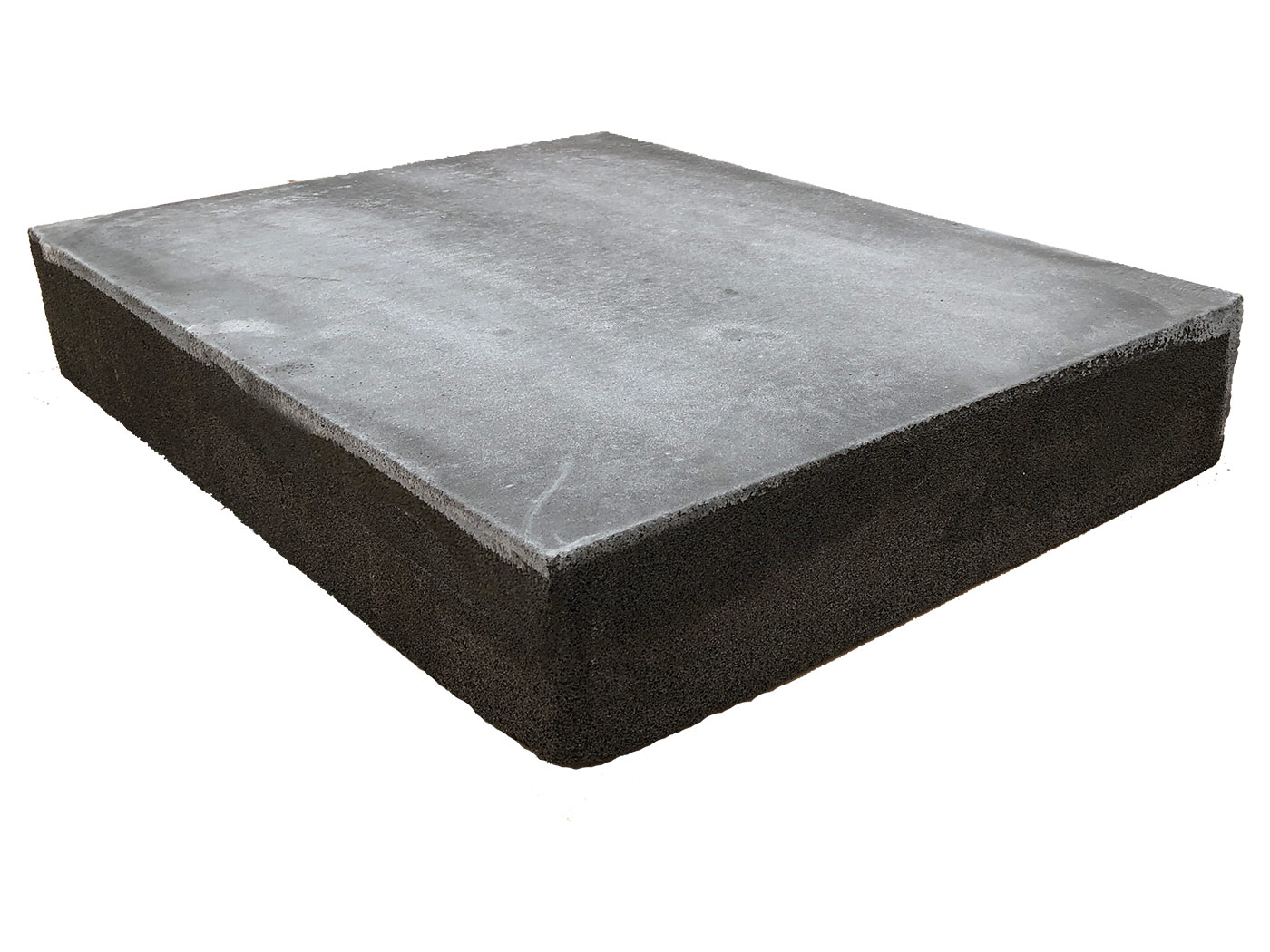

Cellular glass with a pre-applied inorganic coating on the topside. Both the core material and the coating have an A1 reaction to fire classification and are therefore non-combustible. Where more than one layer of insulation is required, BauderGLAS Slab T3+ will be used as the base layer.
This product is for use within inverted (protected membrane) roof systems and can be laid directly onto Bauder Hot Melt and Bauder Reinforced Bitumen Membranes. Contact our technical department for advice relating to other membrane types.
Use in conjunction with BauderJFRI WFRL prior to installing paving, decking, ballast or lightweight green or brown roofs.
Use in conjunction with BauderGLAS Upstand boards to exposed vertical upstands.
For a comprehensive specification contact Bauder technical department.
Product details
Characteristic | Test Method | Unit | Value |
---|---|---|---|
Facing | Cellular glass with a pre-applied inorganic coating on the topside. | ||
Length ± 2mm | EN 822 | mm | 600 |
Width ± 2mm | EN 822 | mm | 450 |
Thickness ± 2mm | EN 823 | mm | 100, 120*, 140, 160, 180* & 200 *made to order, min qty 100 m2 |
