BauderJFRI PREMIUM (300)
Inverted Insulation

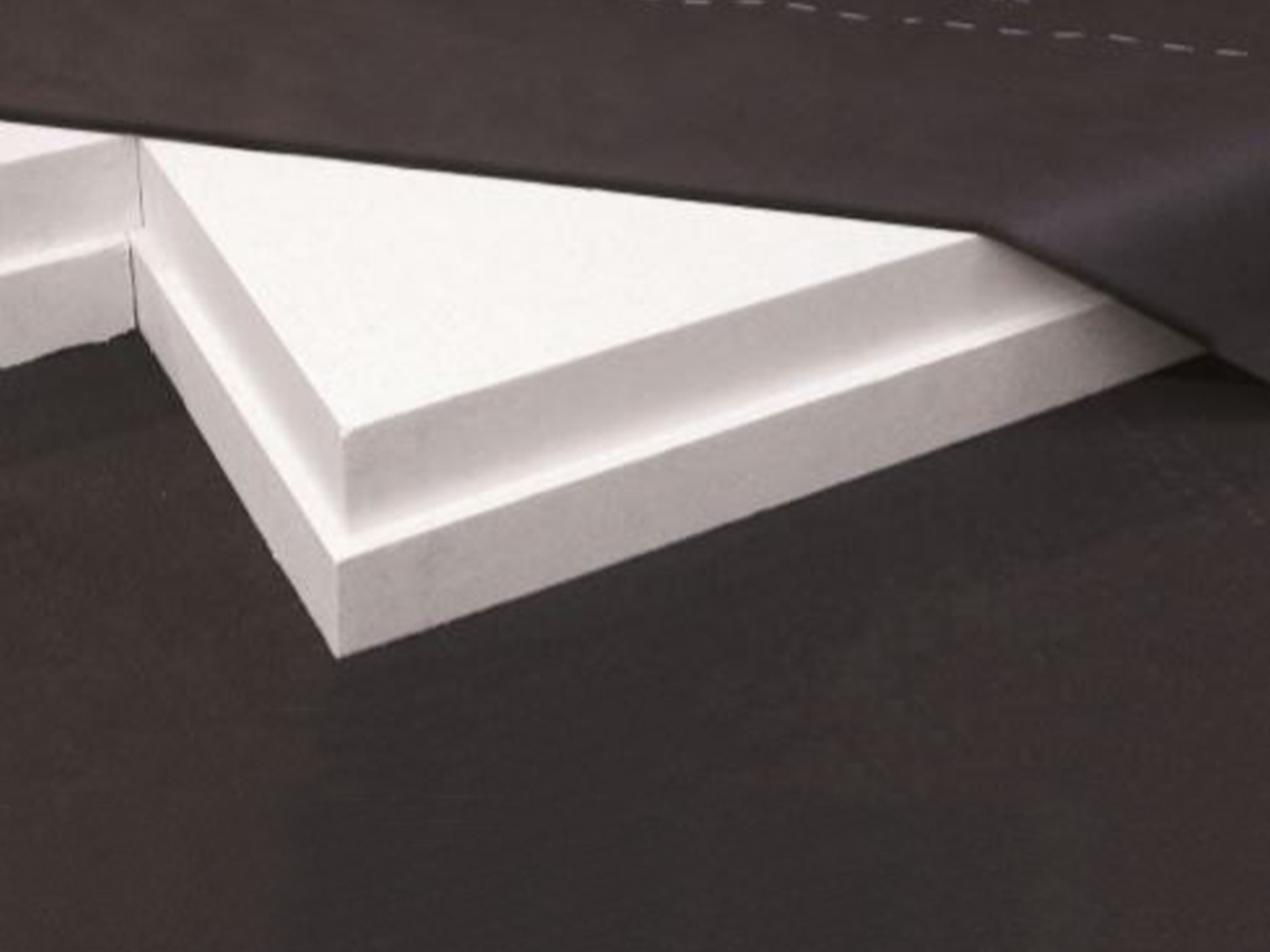

Rigid expanded polystyrene (EPS). Has a higher compressive strength than the BauderJFRI PREMIUM (200) and BauderJFRI PREMIUM+ grade. The product is rebated on all four sides to ensure thermal continuity.
This product is for use within inverted (protected membrane) roof systems and can be laid directly onto Bauder Hot Melt and Bauder bitumen-based Waterproofing Membranes. Contact Bauder technical department for advice relating to other membrane types.
Use in conjunction with BauderJFRI WFRL Membrane prior to installing paving, decking or ballast or Extensive, Brown, Biodiverse, Intensive Green, Biosolar and Blue Roofs.
Use in conjunction with BauderXPS or BauderROCK NC 56 mm Upstand Boards to exposed vertical upstands.
For a comprehensive specification contact Bauder technical department.
Product details
Characteristic | Test Method | Unit | Value |
---|---|---|---|
Facing | Top: Un-faced Bottom: Un-faced | ||
Board edge | Rebated | ||
Width | BS EN 822 | mm | 1,215 (including 15 rebate) |
Length | BS EN 822 | mm | 1,215 (including 15 rebate) |
Single thickness | EN 823 | mm | 100 to 240 mm in 5 mm increments (non-standard thicknesses are available as a special order) |
