BauderGREEN SUB-RE UK
Green and Blue roofs

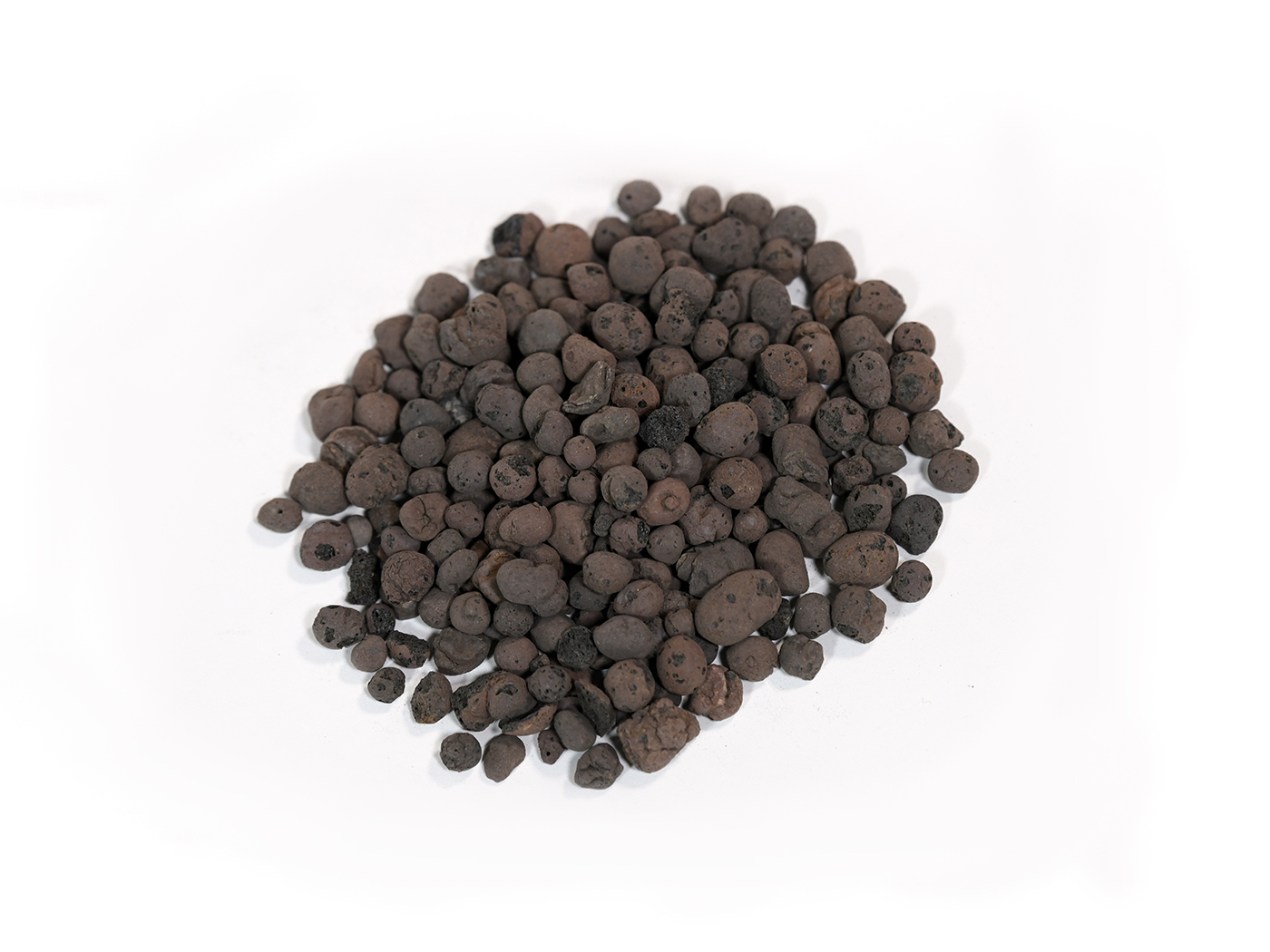

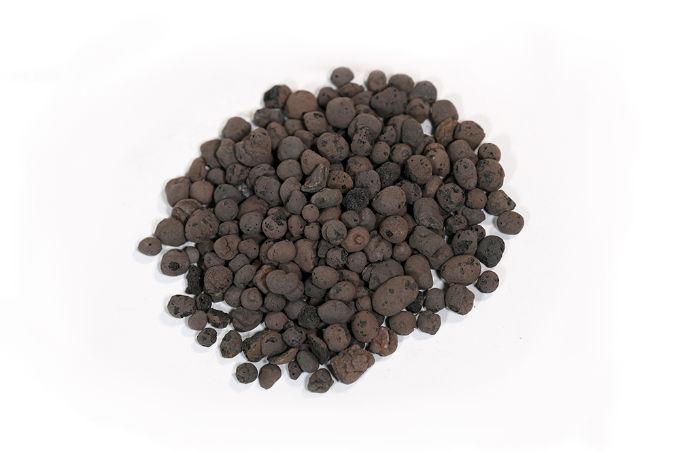

This expanded clay aggregate has been developed as a substrate/growing medium, to be used as part of the BauderBLUE STORMsub roof system. The single grade particles are used with other Bauder drainage products to provide a Sustainable urban Drainage Systems (SuDS) solution at roof level. The substrate does not contain any free silica or other known hazardous substances.
The SUB-RE UK substrate is typically used below a Bauder green roof build up. The SUB-RE UK substrate provides an additional depth of substrate for the vegetation in the green roof systems. The substrate’s large void ratio allows high levels of water storage making it a suitable blue roof void layer.
Additionally, it provides aeration with inherent water retention to help support green roof plants. Typically used with the Bauder RE 40 drainage board.
Product details
Characteristic | Test Method | Unit | Value |
---|---|---|---|
Size | EN 1848-1 | mm | 4-8 |
Weight (saturated) | Kg/m³ | 450 | |
Weight (dry) | Kg/m³ | 350 | |
Compressive Strength | EN 1848-1 | kPa | 320-620 |
Other matching results
BauderBLUE ST-B
Green and Blue roofs
View detailsBauderBLUE ST-HM
Green and Blue roofs
View detailsBauderBLUE SR-HM
Green and Blue roofs
View detailsBauderBLUE SR-B
Green and Blue roofs

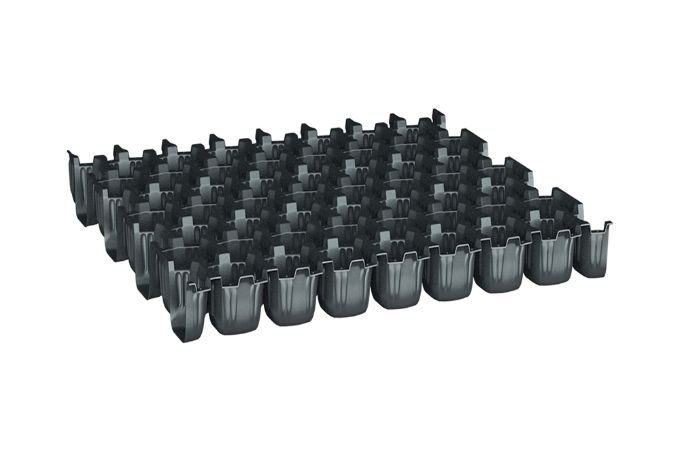

View detailsBauderGREEN RE 40
Green and Blue roofs
View detailsBauderGREEN SUB-RE UK
Green and Blue roofs

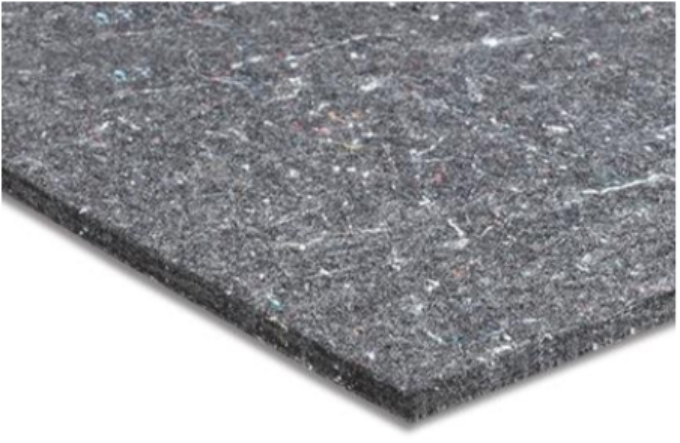

View detailsBauderGREEN FSM 600
Green and Blue roofs

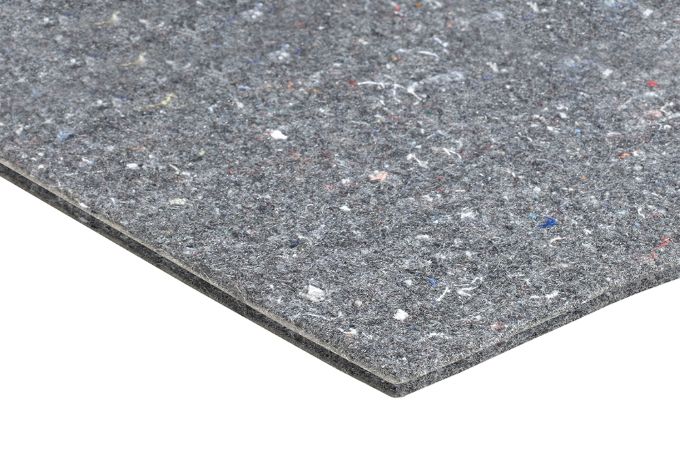

View detailsBauderGREEN FSM 1100
Green and Blue roofs
View detailsBauderGREEN SV 600
Green and Blue roofs

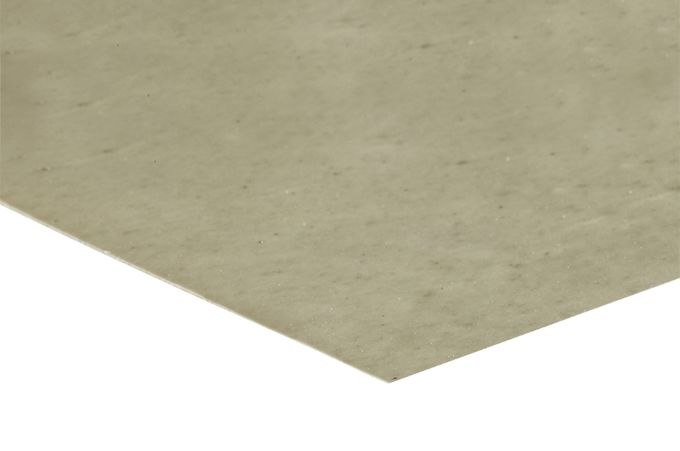

View detailsBauderGREEN PE 02
Green and Blue roofs

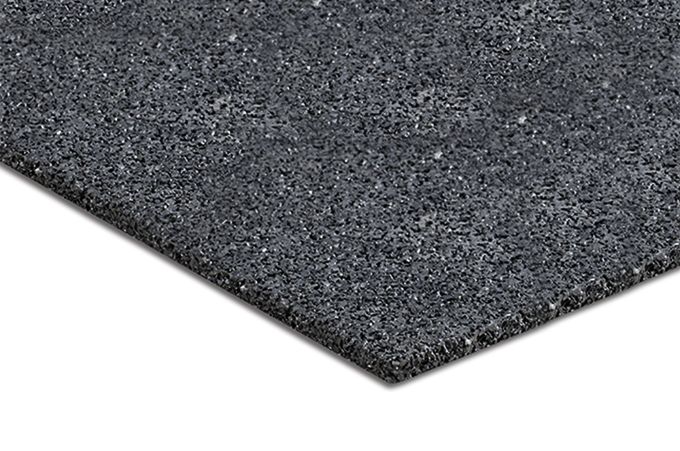

View detailsBauderGREEN GGM 6
Green and Blue roofs

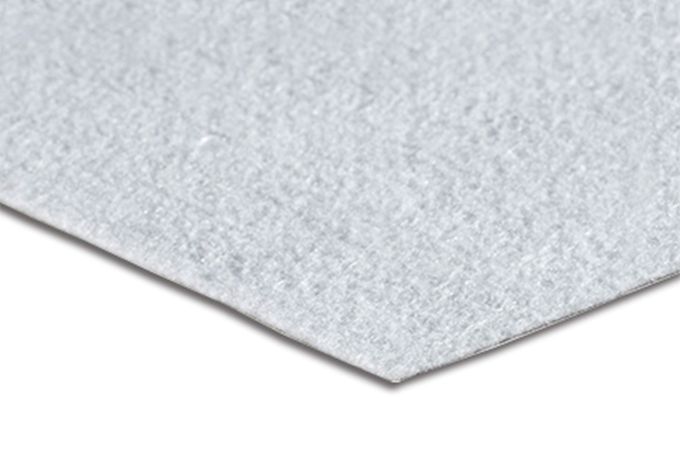

View detailsBauderGREEN FV 125 100
Green and Blue roofs

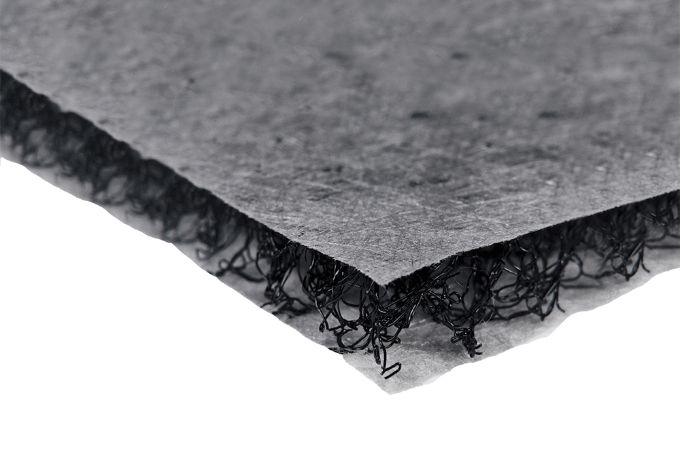

View detailsBauderGREEN SDF
Green and Blue roofs

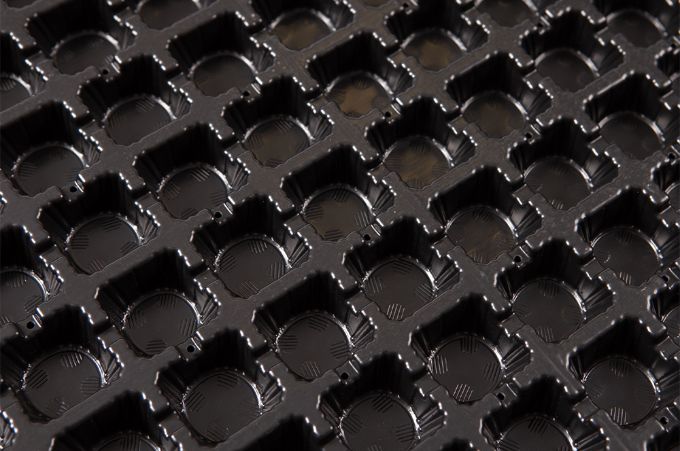

View detailsBauderGREEN DSE 20
Green and Blue roofs

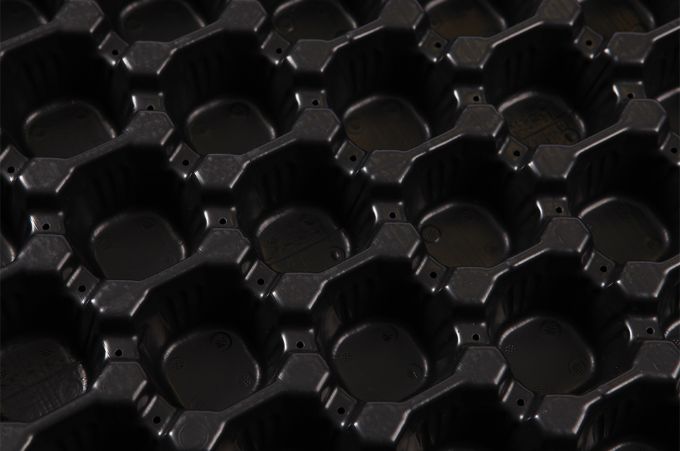

View detailsBauderGREEN DSE 40
Green and Blue roofs

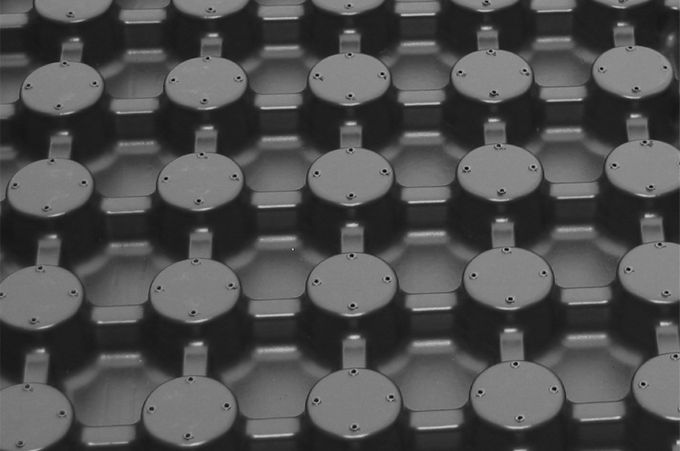

View detailsBauderGREEN DSE 60
Green and Blue roofs

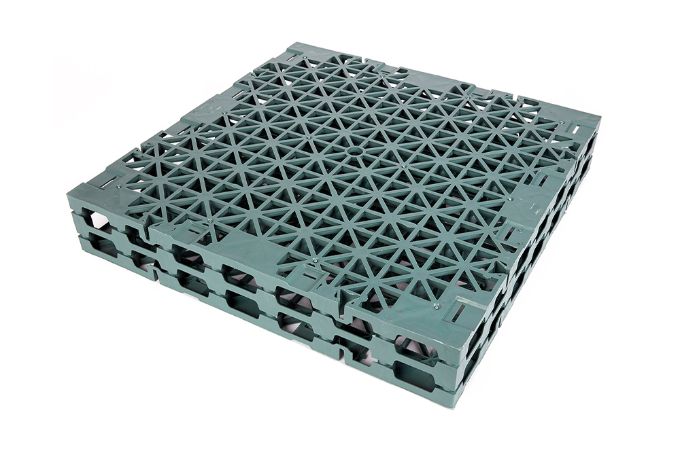

View detailsBauderGREEN RWR 100
Green and Blue roofs

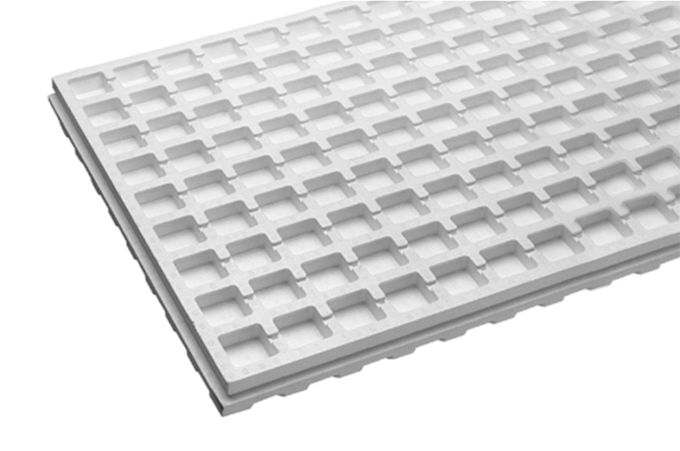

View detailsBauderGREEN WSP 50 & BauderGREEN WSP 75
Green and Blue roofs

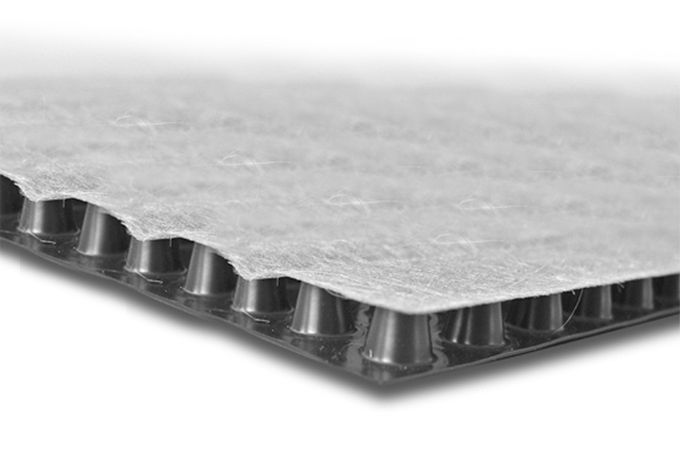

View detailsBauderGREEN DE NF 10
Green and Blue roofs

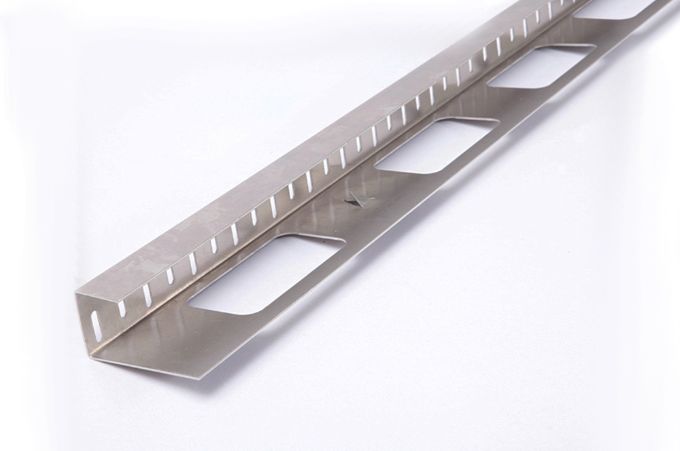

View detailsBauderGREEN AL 40
Green and Blue roofs

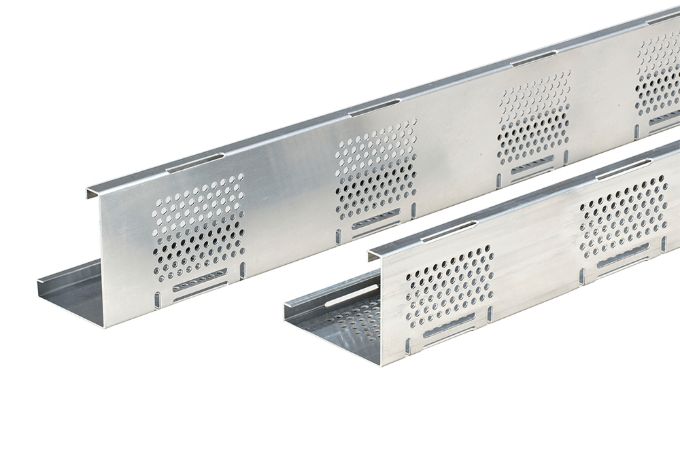

View detailsBauderGREEN KFL AL 100/80
Green and Blue roofs

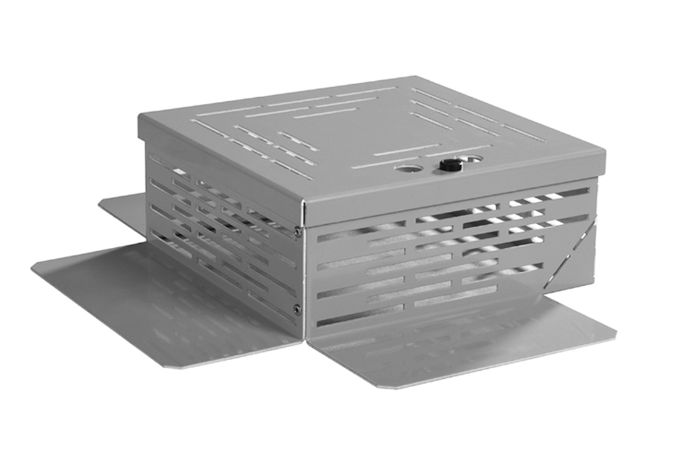

View detailsBauderGREEN KS ALU 250
Green and Blue roofs

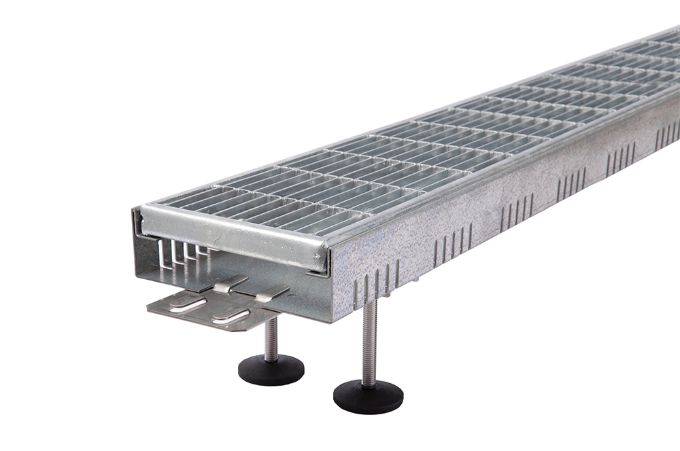

View detailsBauderGREEN ER MR 150/60
Green and Blue roofs

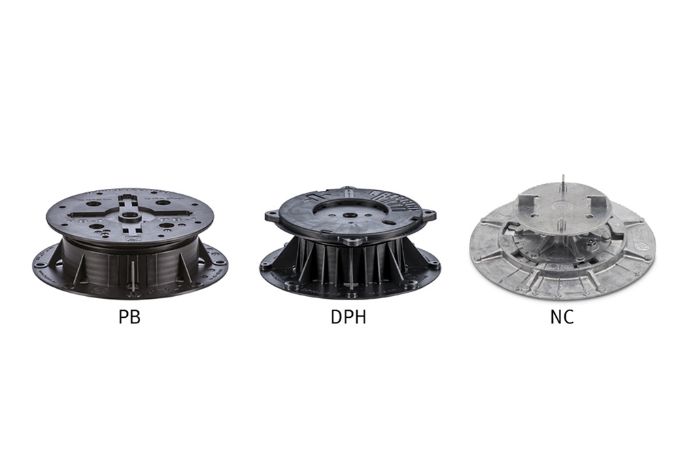

View detailsPedestal Support Systems
Green and Blue roofs
View detailsBauderGREEN DU UK
Green and Blue roofs

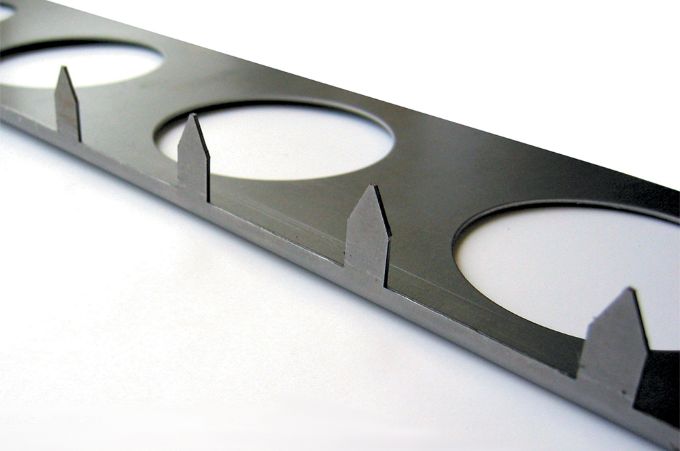

View detailsBauderGREEN RS 22
Green and Blue roofs
View detailsBauderGREEN SB
Green and Blue roofs

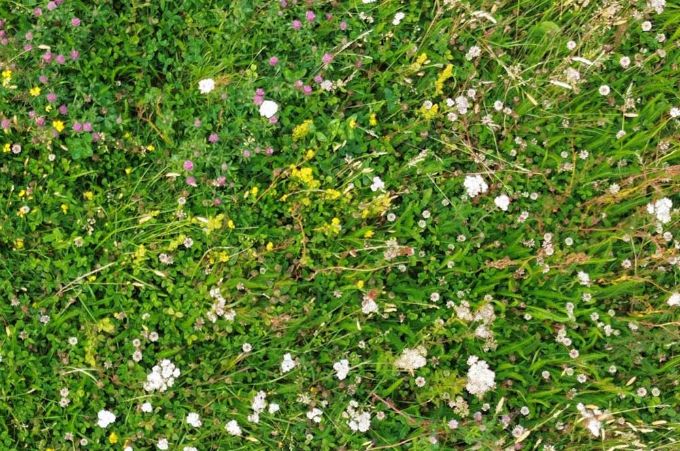

View detailsBauderGREEN WB
Green and Blue roofs

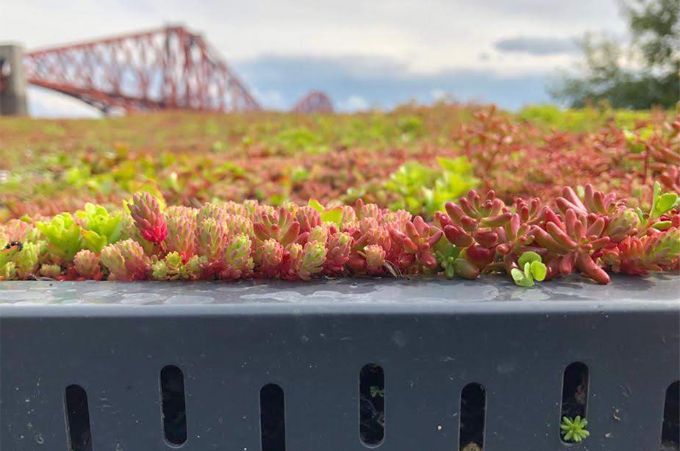

View detailsBauderGREEN XF 301
Green and Blue roofs

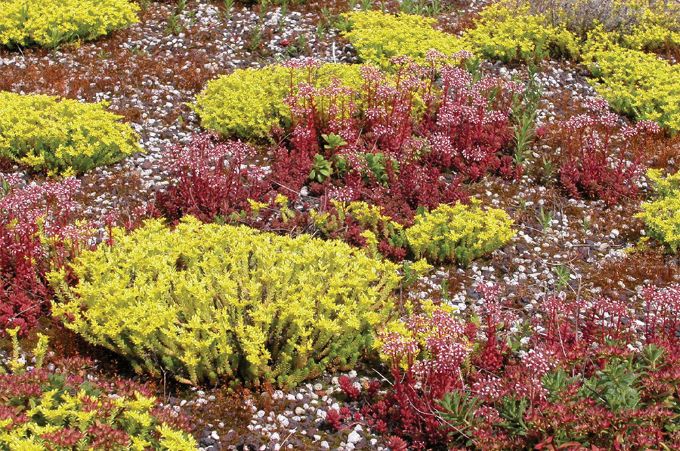

View detailsBauderGREEN Plugs
Green and Blue roofs

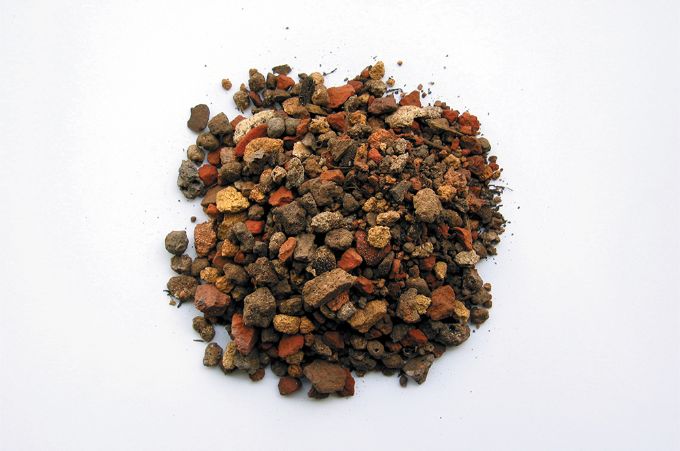

View detailsBauderGREEN SUB-EM UK extensive substrate
Green and Blue roofs

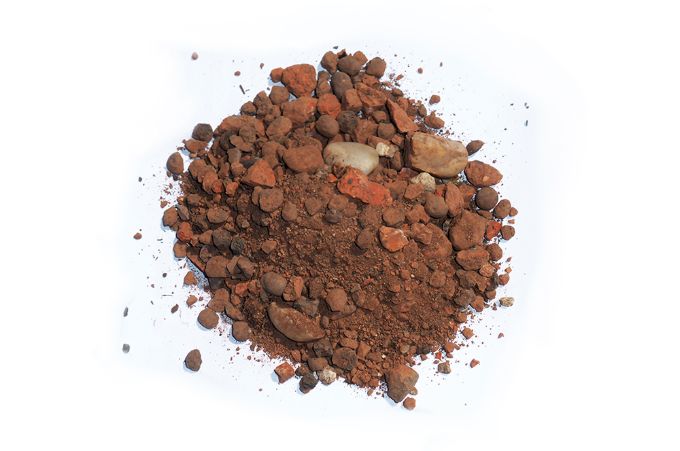

View detailsBauderGREEN SUB-BM UK biodiverse substrate
Green and Blue roofs

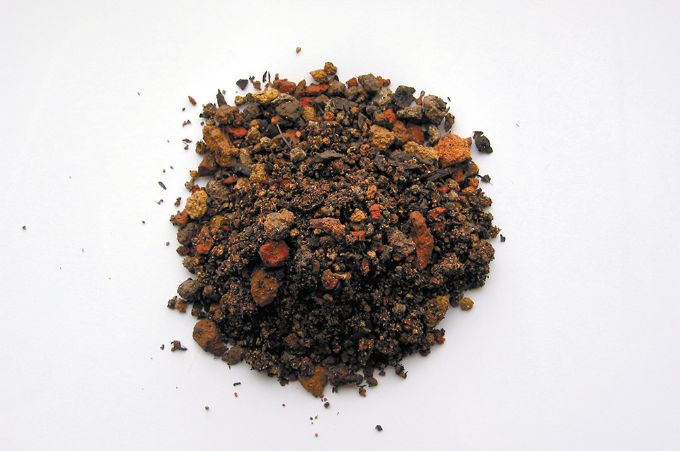

View detailsBauderGREEN SUB-IM UK intensive substrate
Green and Blue roofs

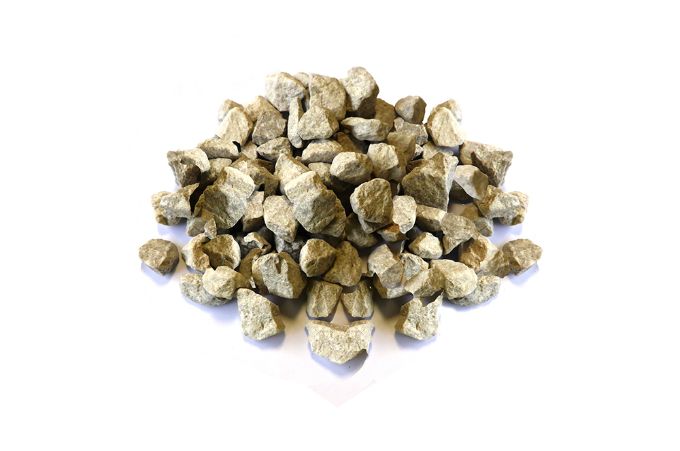

View detailsBauderGREEN SUB-MD UK
Green and Blue roofs

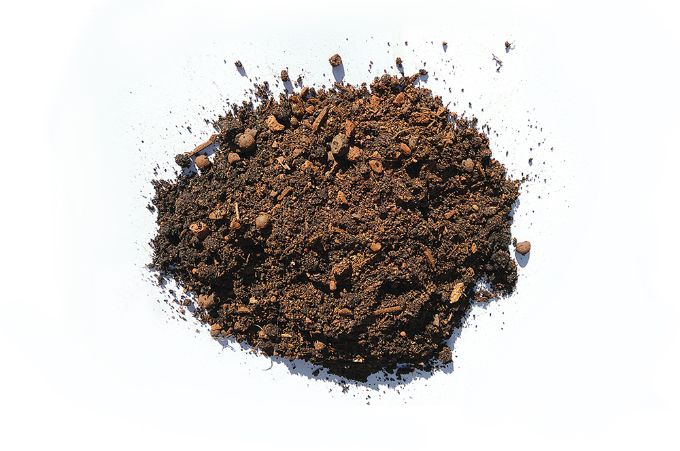

View detailsBauderGREEN SUB‐SBS UK
Green and Blue roofs
View detailsBauderGREEN Flora Seed Mixes
Green and Blue roofs

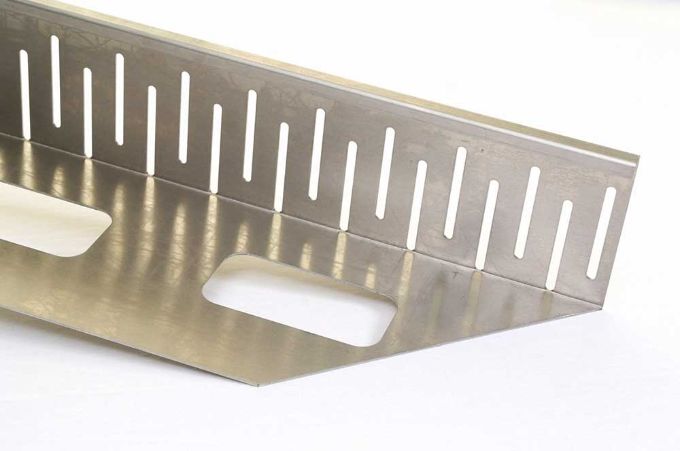

View detailsBauderGREEN AL 150
