BauderBLUE SR-B

BauderBLUE SR-B

Green and Blue roofs

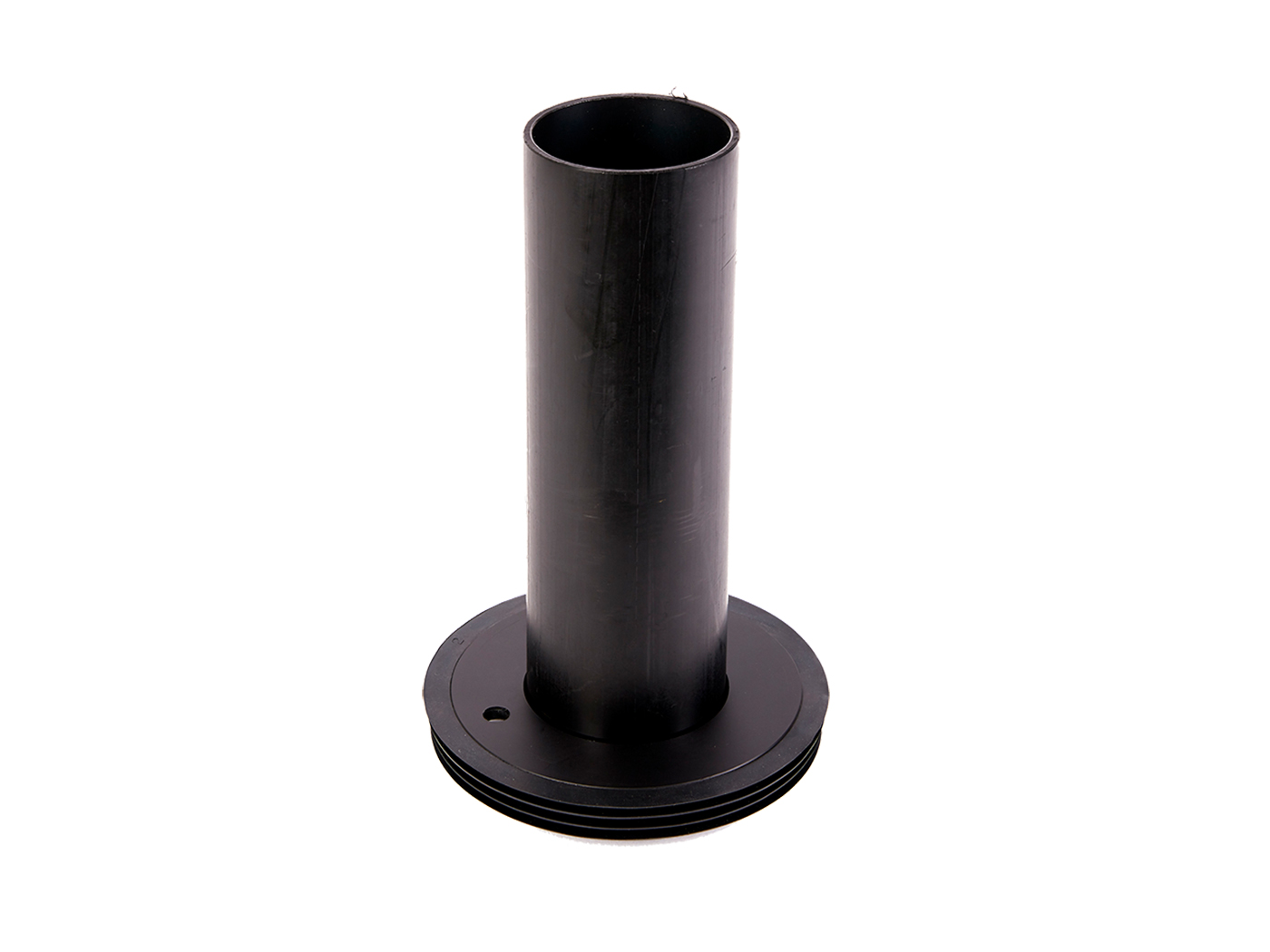

A bespoke blue roof flow restrictor, designed to be fitted into a Bauder bitumen 70mm vertical outlet, to control the discharge rate for a blue roof. The product consists of 4 parts (baseplate, overflow pipe and two EPDM seals). The number of drain holes and the height of the overflow are dictated by Bauder’s individual blue roof calculations.

Product details

Characteristic	Unit	Value
Material	-	Polyamide
Baseplate height	mm	30
Baseplate diameter	mm	176 (excluding outer seal)
Overflow pipe height	mm	250 max (cut down to H-Max)
Overflow diameter	mm	75 outer, 69 inner
