BauderGREEN AL 40

Green and Blue roofs

Bauder’s range of aluminium edge and drainage trims retain the vegetation on an extensive green roof. They are designed for use with BauderGREEN XF 301 and other BauderGREEN substrate-based systems.

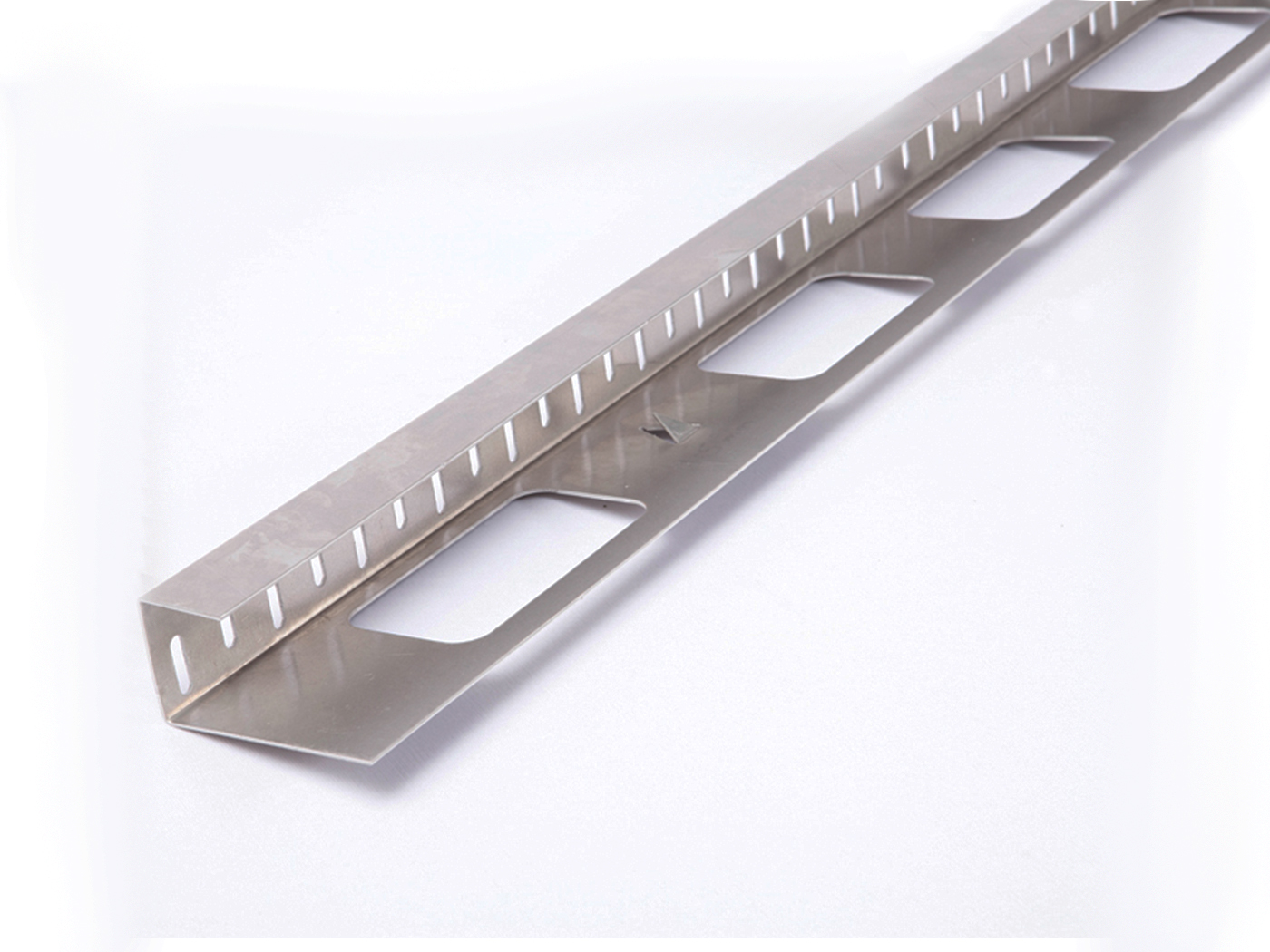

Perforated edge/drainage trims are used to frame and retain the green roof build up. The trims allow free movement of rainwater to aid drainage. AL 40 is specifically designed to be used with BauderGREEN XF301 sedum blanket on flat and pitched roofs. AL150 is specifically designed to be used with BauderGREEN SUB substrate-based, extensive green roof systems.

Product detail

CharacteristicTest MethodUnitValue
Material thicknessmm1.5 Aluminium
Trim heightmm150
Weightkg6

All further technical information is stated on the data sheet.
This product does not require a Declaration of Conformity (DoC) or Declaration of Performance (DoP).
