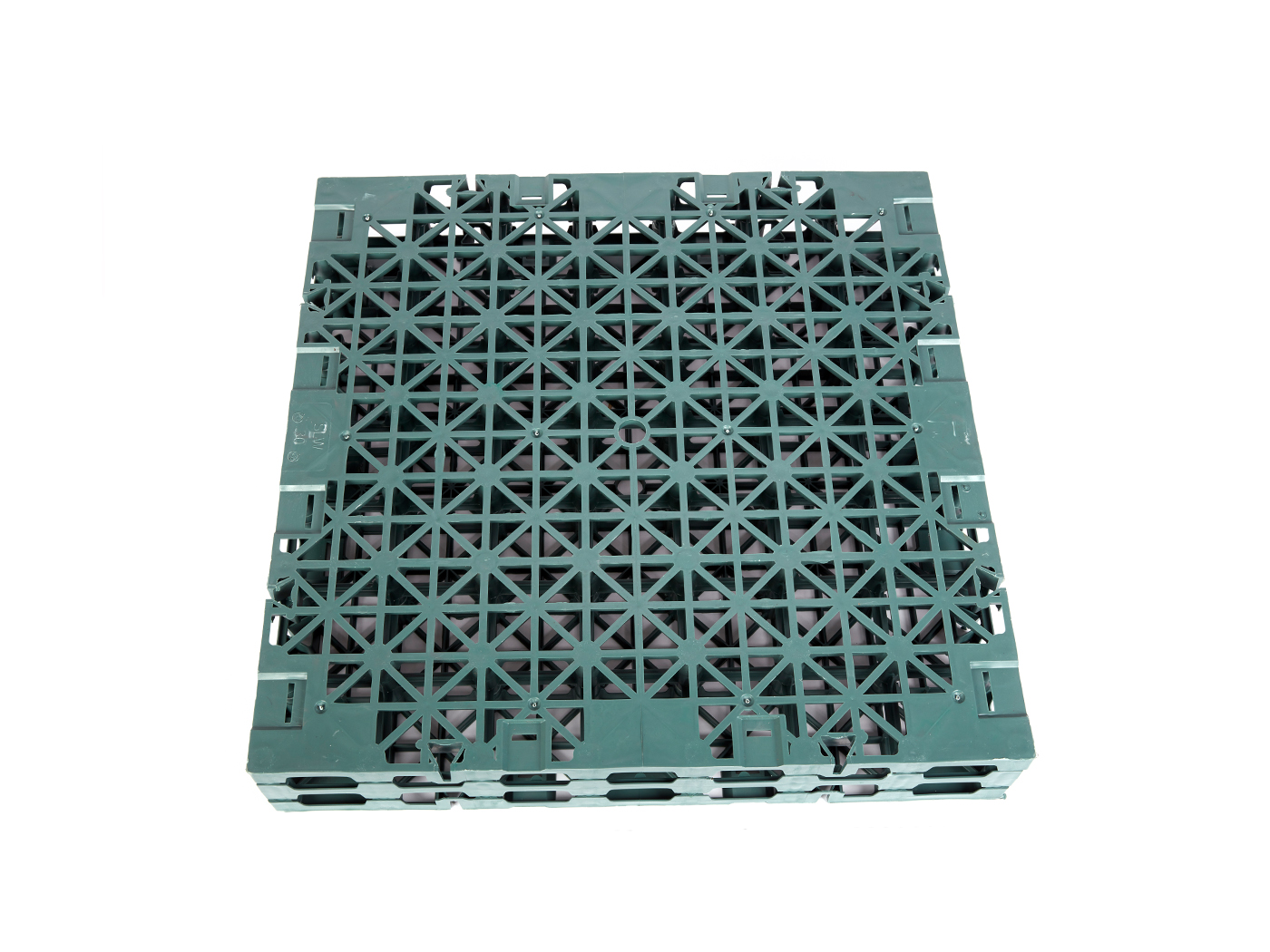

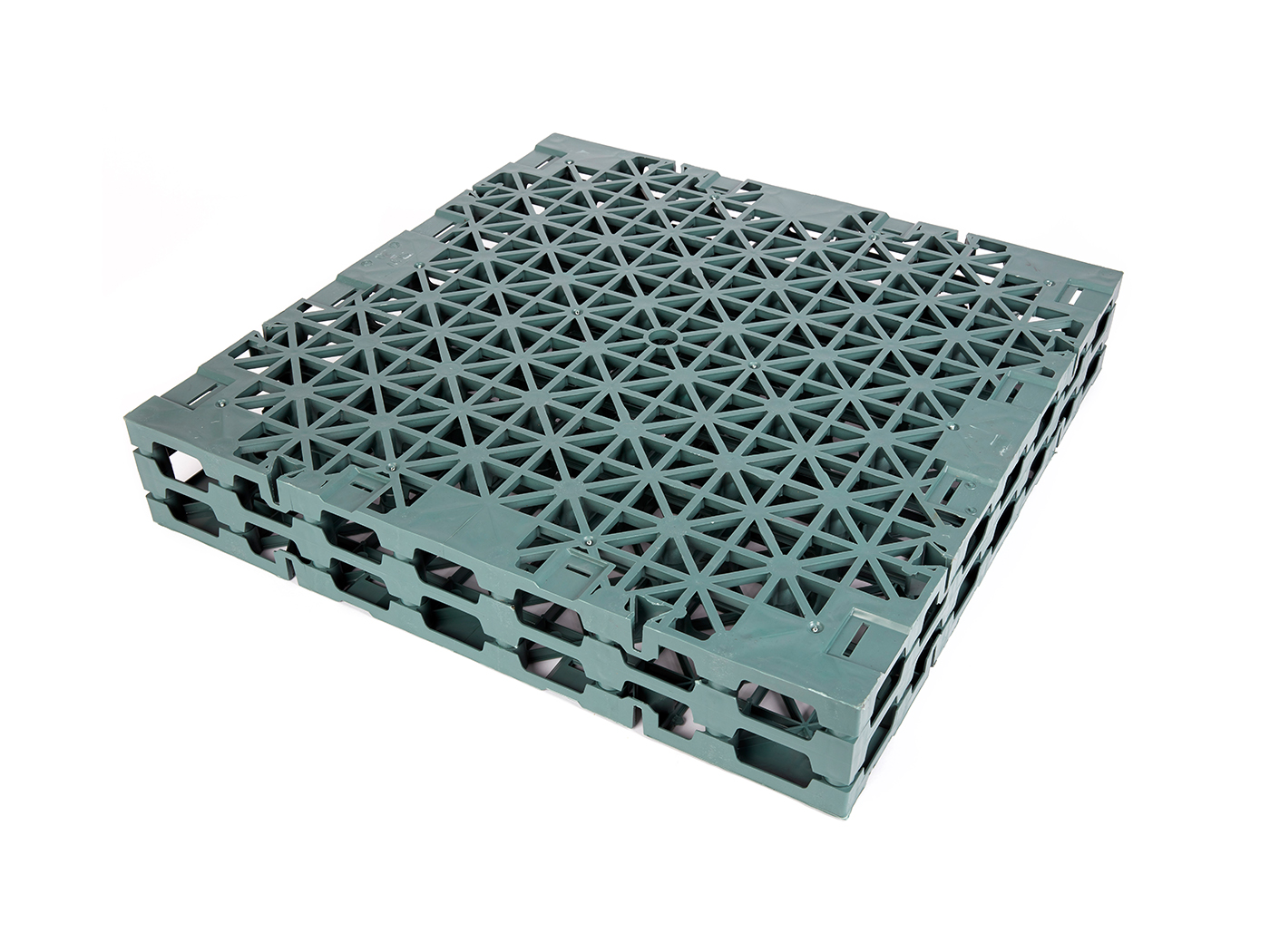

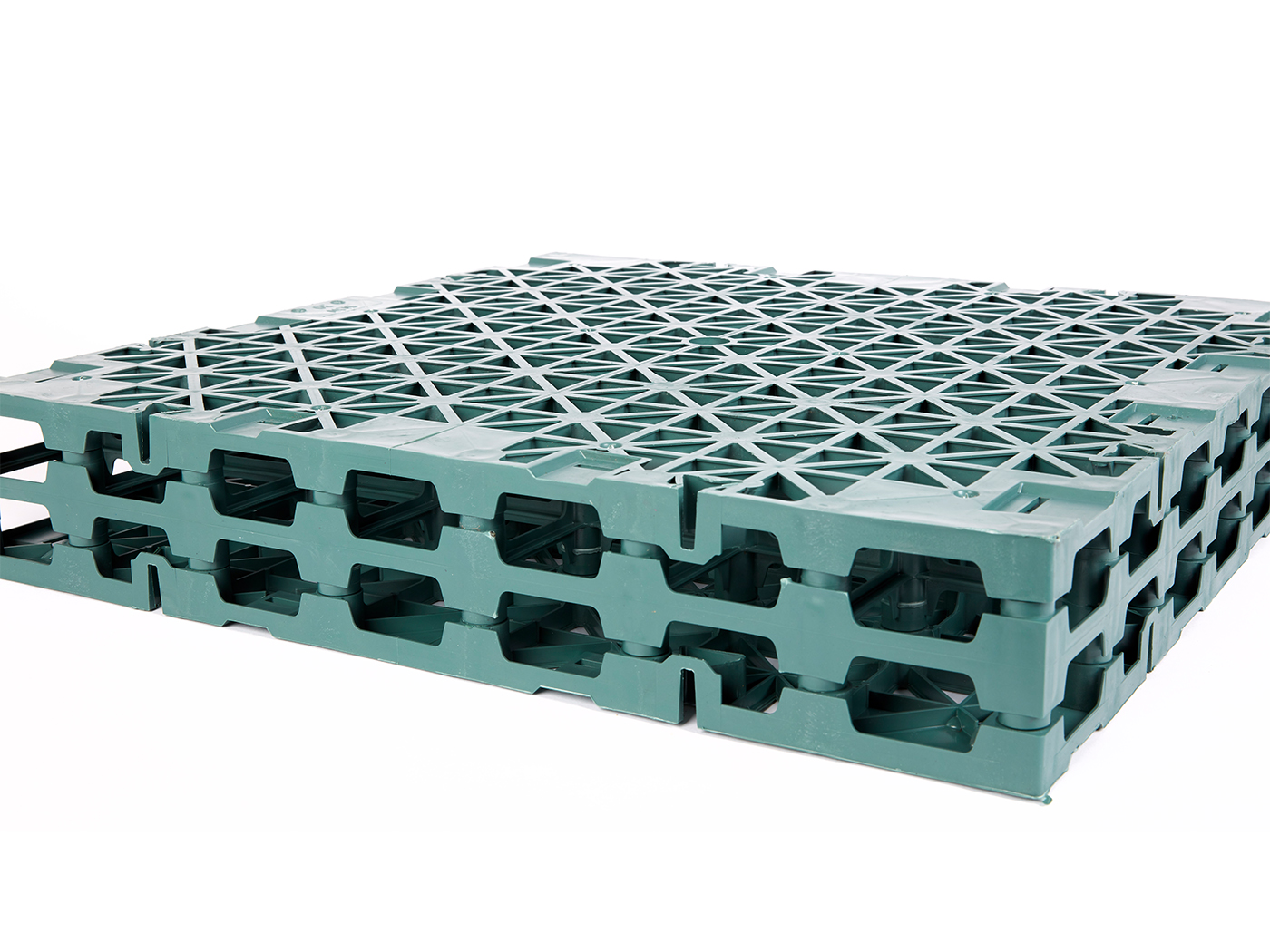

RWR 100 blue roof attenuation board
  • RWR 100 blue roof attenuation board
  • RWR 100 blue roof attenuation board
  • RWR 100 blue roof attenuation board

BauderGREEN RWR 100

Green and Blue roofs

Multi-directional drainage layer. Used primarily in Bauder Blue Roof Systems.

Designed to hold stormwater during severe rain events. The product is over 95% void. It has excellent compressive strength for use under green roofs and hard landscaping surfaces. Attenuation Cell 100 is laid on a protection layer above the completed waterproofing to provide continuous drainage within hard and soft landscaping. The Cross Connectors connect the cells together horizontally, the Shear connectors connect two layers of cells should they be required.


Product details

CharacteristicTest MethodUnitValue
Weight (dry)

Per piece
kg/m²

2.9

8.05
Weight (saturated)Per piece
kg/m²
2.9

8.05
Water Storagem² 0.34 per piece (≥94.4%)
Total capacity would be >91ltrs/m²
Depthmm100
Sizem0.6 x 0.6
Approximate coverage0.36 (2.77 pieces per m²)

All further technical information is stated on the data sheet.
This product does not require a Declaration of Conformity (DoC) or Declaration of Performance (DoP).
