BauderROCK Tapered Insulation
  • BauderROCK Tapered Insulation

BauderROCK Tapered Insulation

Tapered Insulation

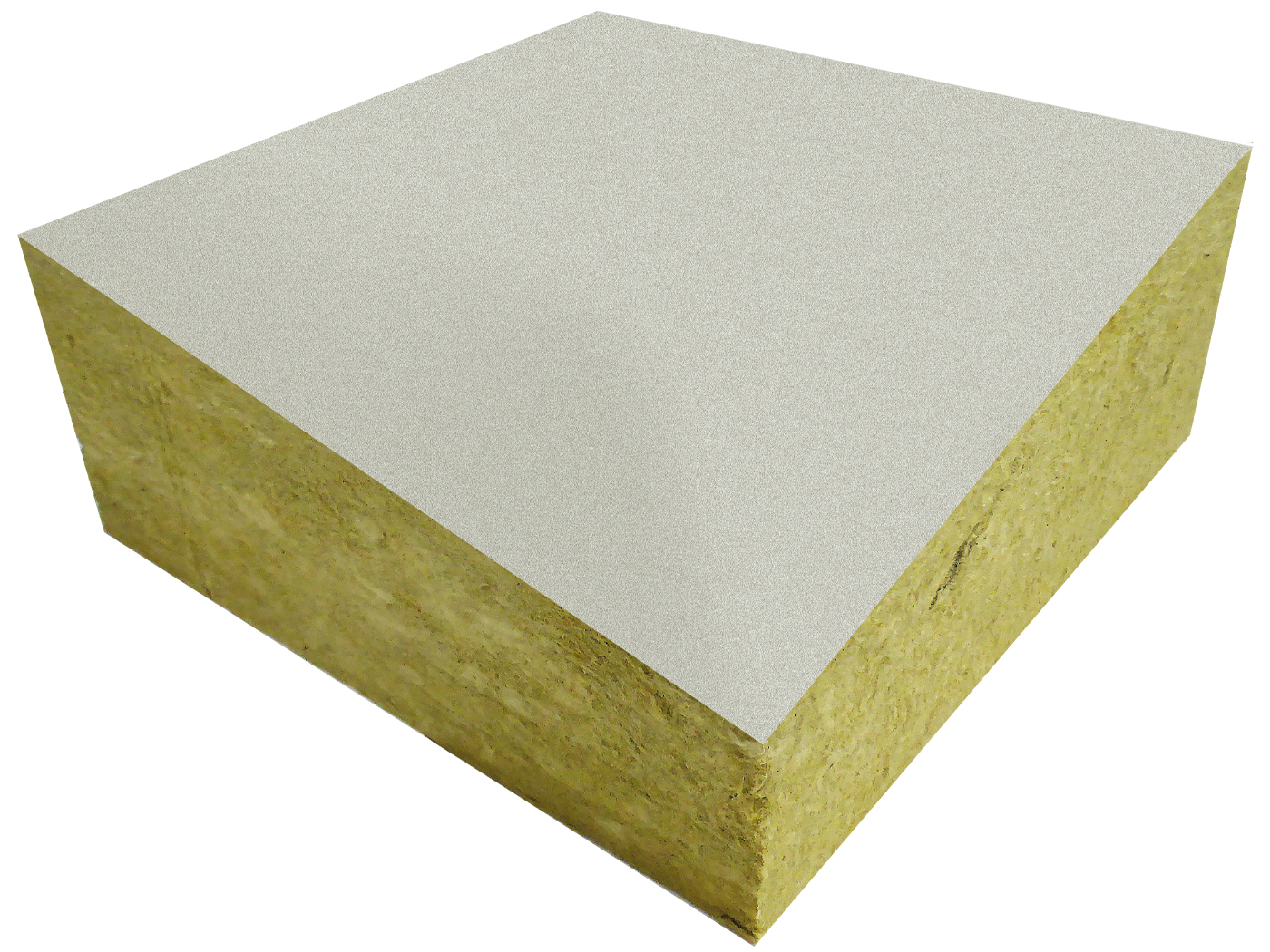

BauderROCK is a dual density mineral wool insulation board with a multi-purpose facing applied to the top surface to allow waterproofing membranes to be mechanically fixed, torch-applied or adhered. The dual density composition provides a good compressive strength, whilst keeping the overall weight to a minimum. The product is non-combustible with superior acoustic performance. The underside of the board is un-faced, so bare Rock. Where more than one layer of insulation is required to hit the target u-value, an un-faced base layer is used.


Product Information

Facing

Top: Glass fibre fleece
Bottom: Raw (un-faced)

Board edge

Square (not rebated)

Product details

CharacteristicTest MethodUnitValue
  • External dimension
  • (L x W)
EN 822mm1,200 x 1,000
ThicknessEN 823mmVaries depending on fall and board size in conjunction with the tapered design un-faced 120 and 150 mm will be used as base layers in a multi-layer scheme

All further technical information is stated on the data sheet.
