BauderPIR FA G16 Tapered Insulation
Tapered Insulation

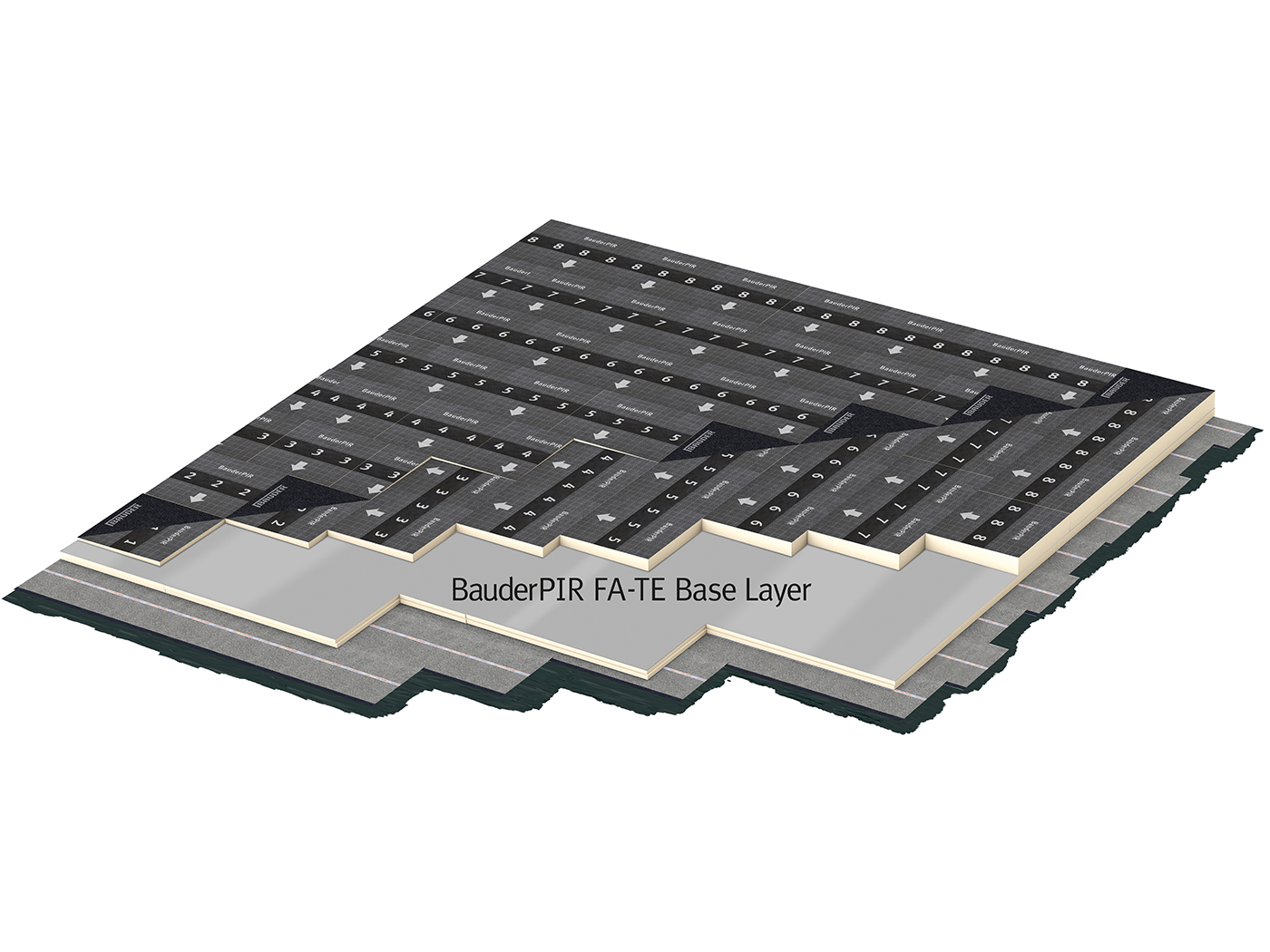

Rigid polyurethane foam board faced on both sides with aluminium foil. The top facing features a number and arrow to indicate board size and direction of fall and also has a printed grid pattern to aid cutting on site.
Product Information
Facing
Top: Aluminium foil
Bottom: Aluminium foil
Board edge
Square (not rebated)
Product details
| Characteristic | Test Method | Unit | Value |
|---|---|---|---|
| External dimension (L x W) | EN 822 | mm | 1,200 x 1,200 |
| Thickness | EN 823 | mm | 30/50, 50/70, 70/90, 90/110, 110/130, 130/150, 150/170, 170/190 |
