BauderECO FF

Flatboard Insulation

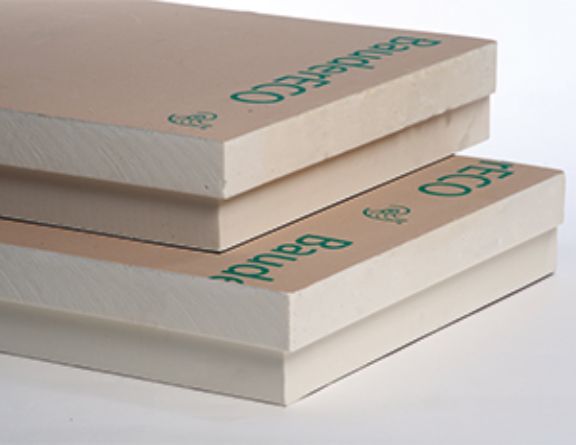

BauderECO FF is a rigid foam thermoset Polyisocyanurate (PIR) board for the thermal insulation of flat roofs.

The boards consist of a biomass balanced insulation core comprised of 80% biomass and renewable inorganic raw materials, recycled raw materials from milling/sawing (1%) and utilises calcium carbonate from crushed shell which is waste from the food industry, incorporated with a glass fleece for the facing on both sides. The insulation board has rebated edges to reduce the risk of thermal bridging at the bridge joints.

Thermal insulation for use within Bauder Total Roof System and Bauder Thermofol mechanically fixed warm roof system to provide efficient thermal insulation.

The insulation can be used on a variety of deck types and with a range of appropriate Bauder waterproofing systems. Can be adhered to the AVCL or mechanically fixed through to the deck.


Product Information

Facing

Top: Crushed shell/glass fleece
Bottom: Crushed shell/glass fleece

Board edge

Rebated 15mm

Product details

CharacteristicTest MethodUnitValue
External dimensionEN 822mm1,200 length x 600 width (1,185 x 585 with rebate)
Thickness*EN 823mm80, 125, 160
Weight-Kg/m³30

*These are the only thicknesses available and can be used in combinations of the three thicknesses to hit specific U-values.

All further technical information is stated on the data sheet.
