BauderVIP TE
Flatboard Insulation

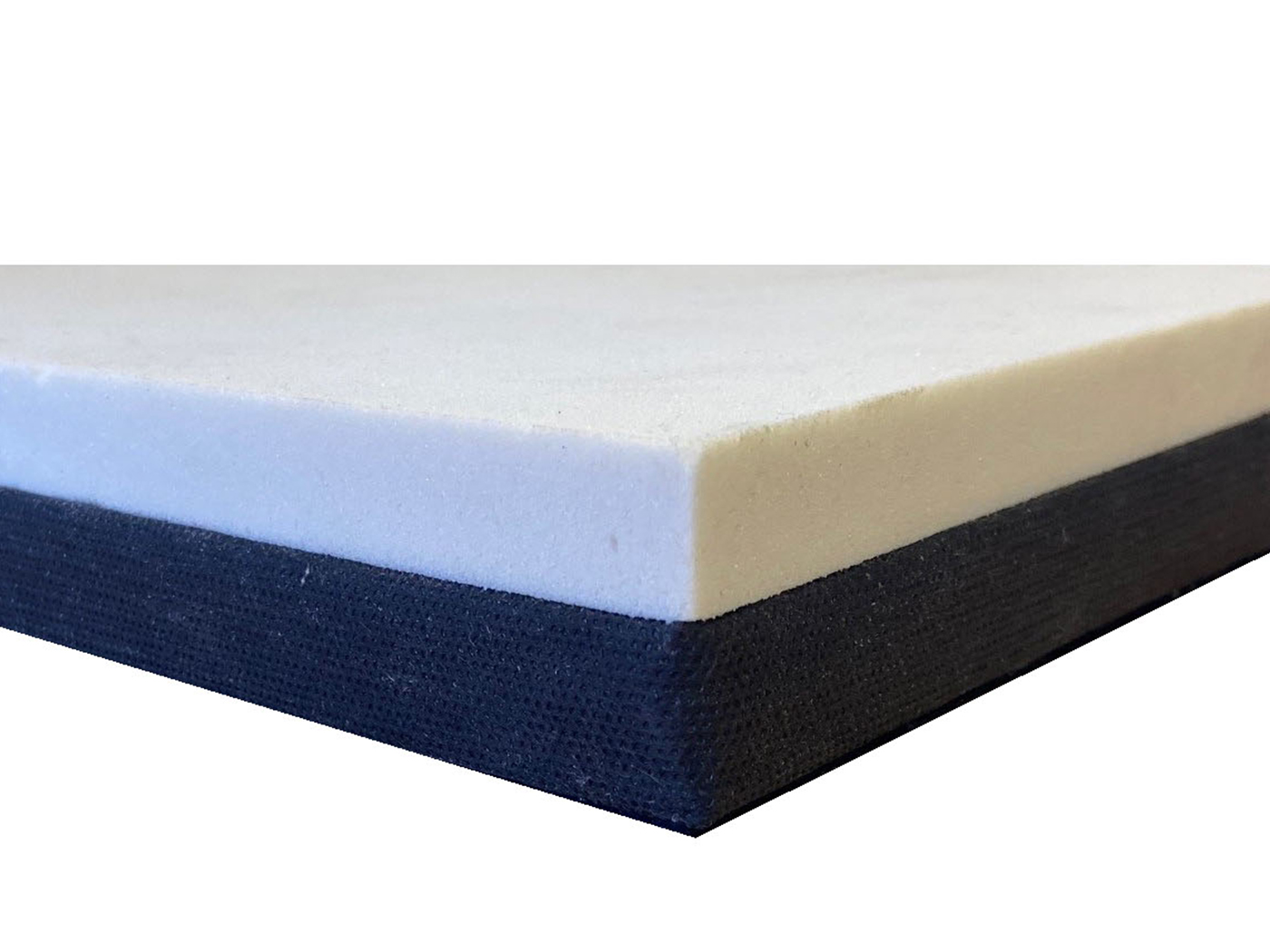

BauderVIP TE is a vacuum insulated panel with a high thermal performance. The good insulating properties achieved by this product come from the high-performance pyrogenic silica core. This core is surrounded by a multi-layer high-barrier film, and then the air is removed from the silica so that a vacuum is created. The vacuum core is then protected on the top side by a high-density 17 mm PIR and the underside is protected by a 3 mm rubber granule mat.
Product Information
Facing
Top: BauderPIR 17 mm
Bottom: Rubber granule mat 3 mm
Board edge
Straight (not rebated)
Product details
Characteristic | Test Method | Unit | Value |
---|---|---|---|
External dimensions (L x W) | EN 822 | mm | 1,000 x 1,000 or 1,000 x 500 |
Thickness of VIP core | EN 823 | mm | 40 or 60 |
Thickness of PIR top layer | EN 823 | mm | 17 |
