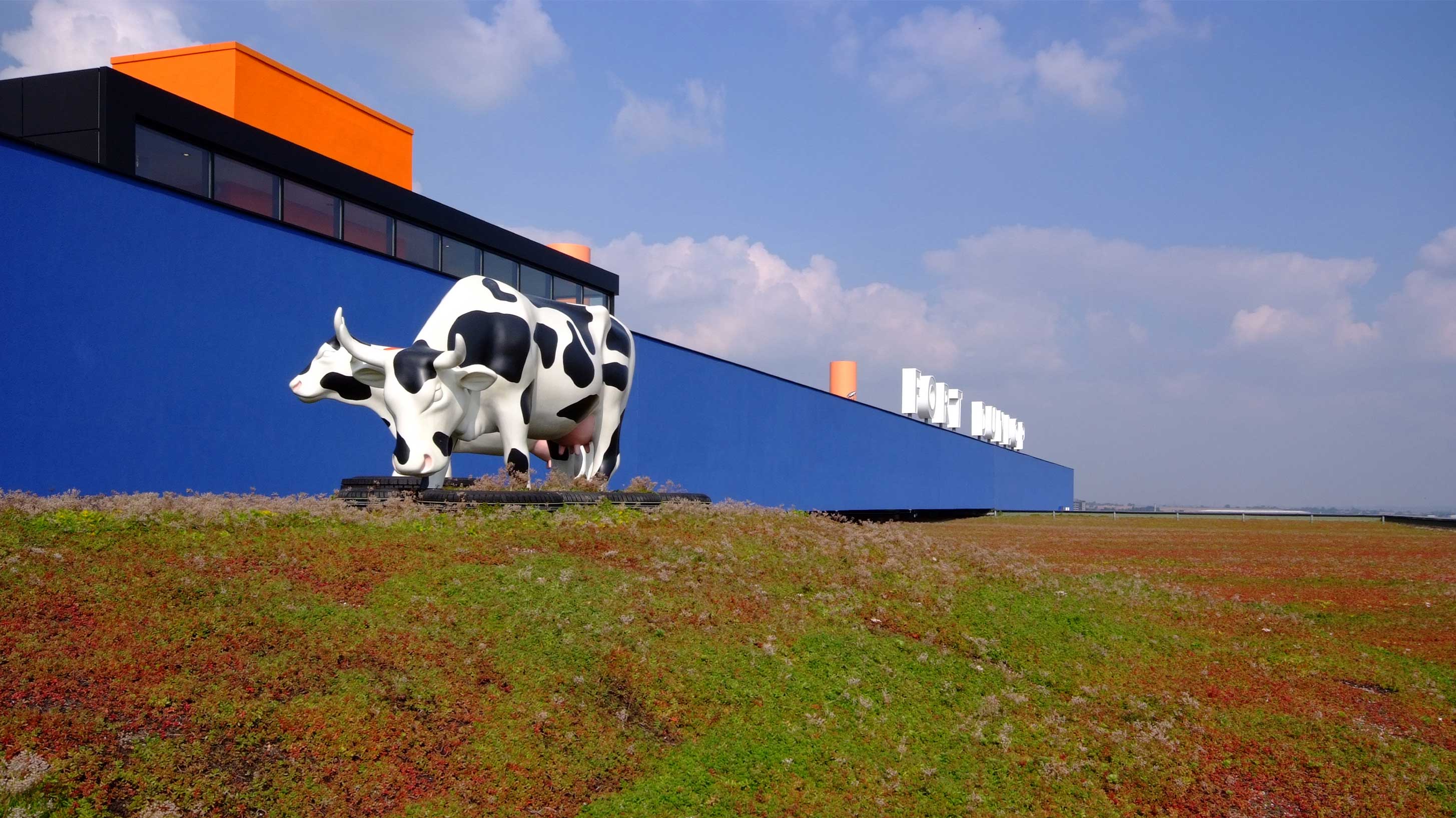

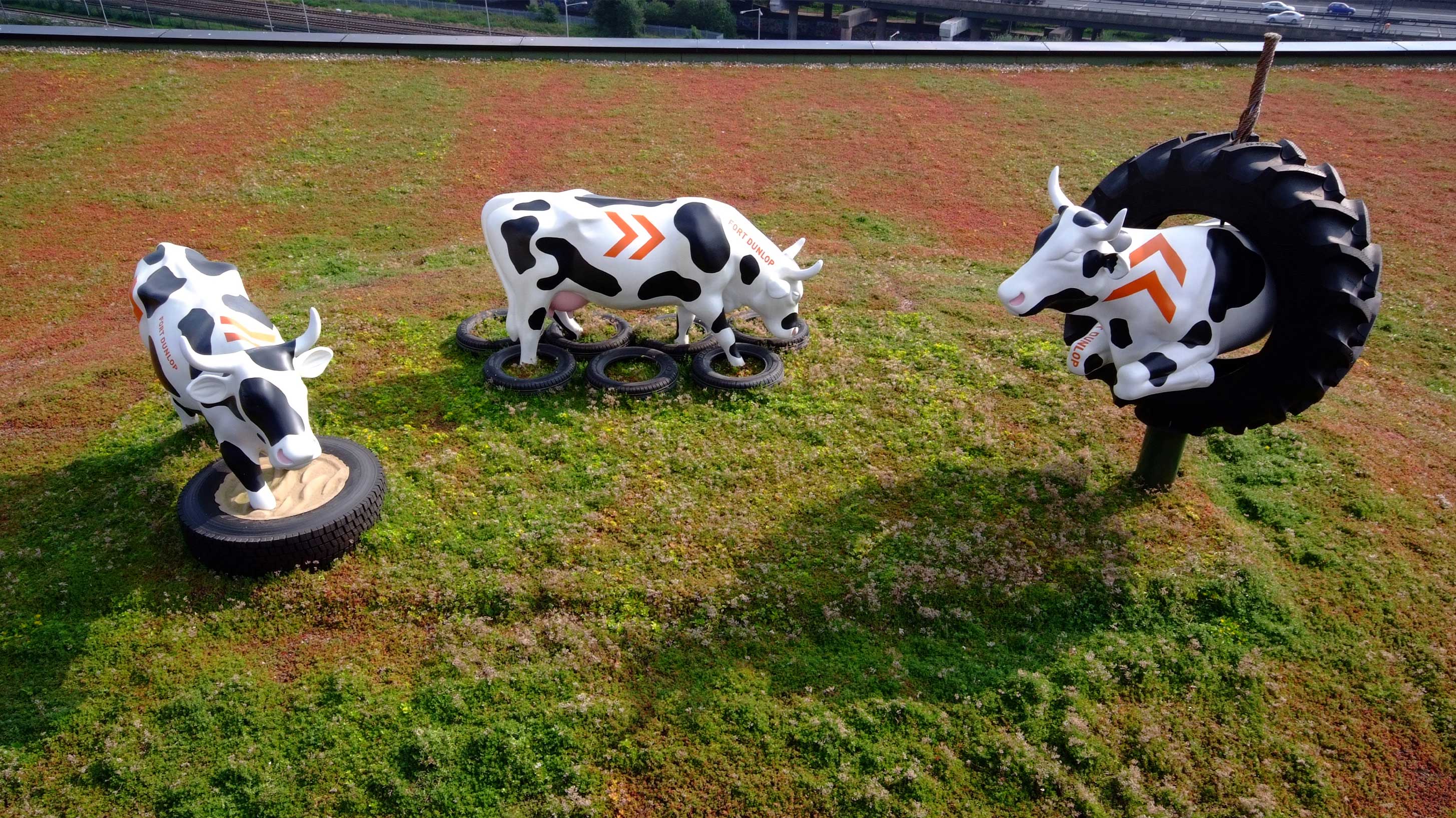

A Cow statue, located at Fort dunlop with green sedum system

Fort Dunlop

Bauder Total Green Roof System (BTGRS)

Project Type:
Refurbishment
Sector:
Commercial
Environmental Focus:
Extensive Green Roof
System:
Reinforced Bitumen Membrane, Green Roof
Location:
West Midlands

Synopsis

During the recent regeneration in and around Birmingham, innovation has been a key factor; a theme optimised by the redevelopment of the Dunlop Tyres warehouse which has been transformed into 45,000m² of office space and a 6,000m² hotel.

  • Modern architectural rooftop with wildflower blanket to provide environmental benefits
  • Haberdashers’ Boys’ Pre-Preparatory School with Bauder total green roof system
  • New Morden building for Waitrose
  • Sedum system
  • Sedum system on roof

Bauder Building VBoard

Location

Bury St Edmunds, Suffolk

Waterproofing system

Thermofol PVC System

Project

West Suffolk College, Australia House

Roof size

1,650 m²

Specifier

Pick Everard Architects

Approved contractor

C-Eco Roofing Ltd

TypeRefurbishment

The specification

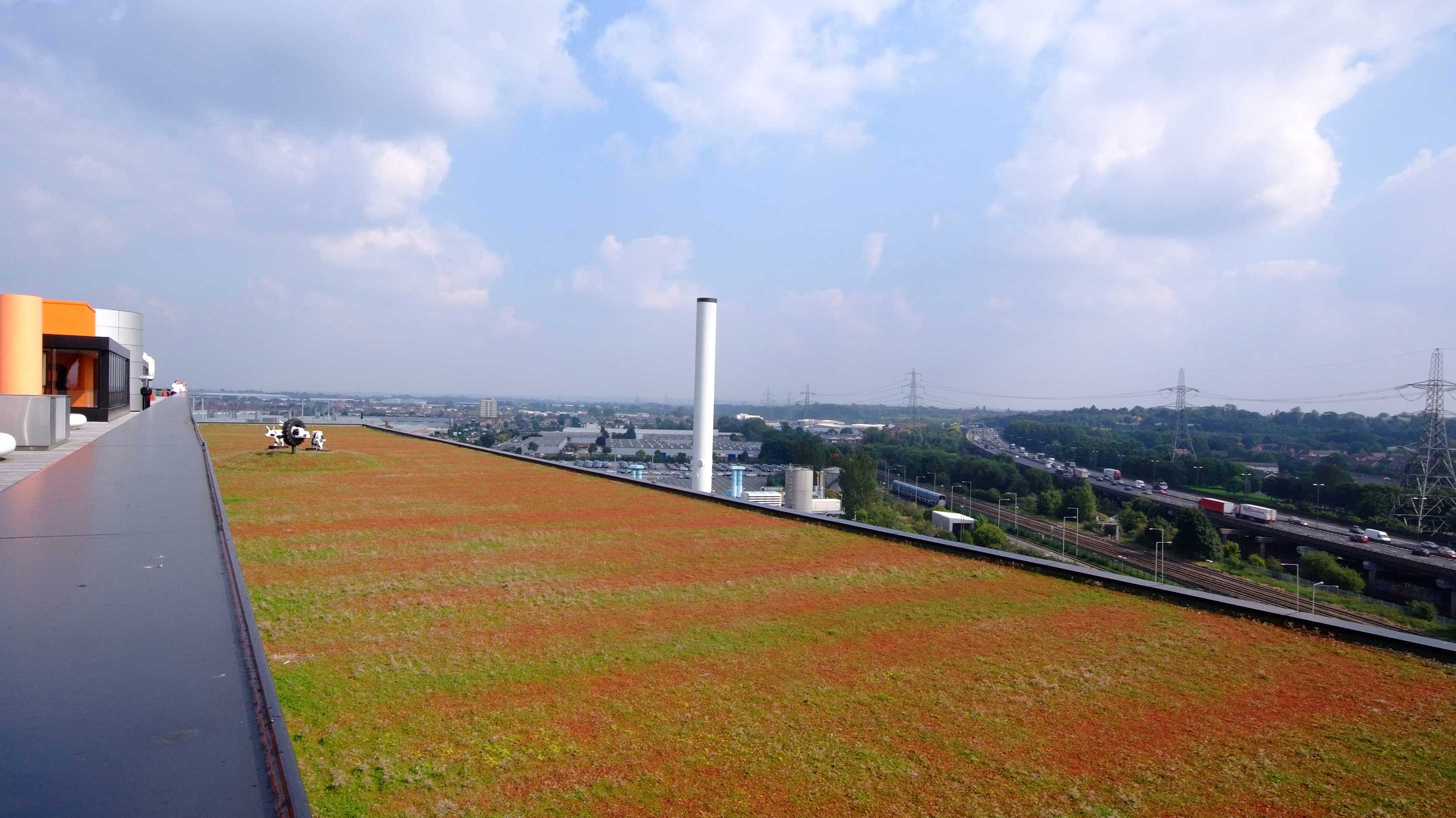

Practical challenges such as the reduction of noise pollution and maximising the building’s lifespan were all met by the Bauder Total Green Roof System with an extensive landscaping of sedum. The planting scheme provided instant coverage as the sedum was laid as pre-cultivated vegetation mats.

Green roofs have excellent acoustic qualities for both external sound (up to 3dB) and internal noise (up to 8dB). This proved essentially in the selection of the Xero Flor blanket due to the proximity of Fort Dunlop to Birmingham Airport.

The result

The entire solution provided a watertight installation in conjunction with a 20-year guarantee whilst making the structure both environmentally friendly and aesthetically pleasing.

System Build Up

Bauder Total Green Roof System (BTGRS) with Bauder XF 301 Sedum System

Bauder Total Green Roof System (BTGRS)

Bauder Total Green Roof System (BTGRS)

BTRS is a fully bonded system suitable for new build and refurbishment projects within warm and inverted roof constructions with a choice of insulations; also used as a system to overlay an existing roof that is thermally reliable and still meets current standards. The system uses BauderPLANT E when a green roof is specified to form the Bauder Total Green Roof System (BTGRS).

Visit our Technical Centre for more information
Thickness (mm)5.2
Weight (kg/m2)6 (mass per unit area)

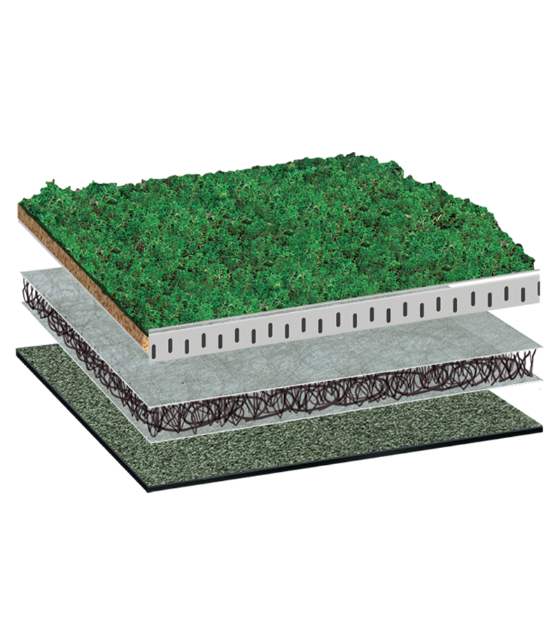

Bauder XF 301 Sedum System

Bauder XF 301 Sedum System

Bauder XF 301 Single Layer Sedum System is lightweight. The system is suitable for both new build construction and retrofit refurbishment projects.

Visit our Technical Centre for more information
Thickness (mm)28 system only / 34-44 incl. vegetation
Weight (kg/m2)<44 (maximum saturated weight)
