Roundwood Park School roof with Solar Panels and rooflights

Roundwood Park School

Bauderflex bituminous system with BauderSOLAR and Bauder rooflights

Project Type:
Refurbishment
Sector:
Education
Environmental Focus:
Solar PV
System:
Reinforced Bitumen Membrane, Photovoltaic
Location:
East of England

Synopsis

A number of the building’s roofs at Roundwood Park School needed refurbishing to prevent further water ingress entering the classrooms below. The client wanted the new waterproofing system to be of high quality and provide falls to the roof to help mitigate ponding water. A no capital outlay PV solution and new rooflights were also desired as part of the works to optimise the roofs functionality.

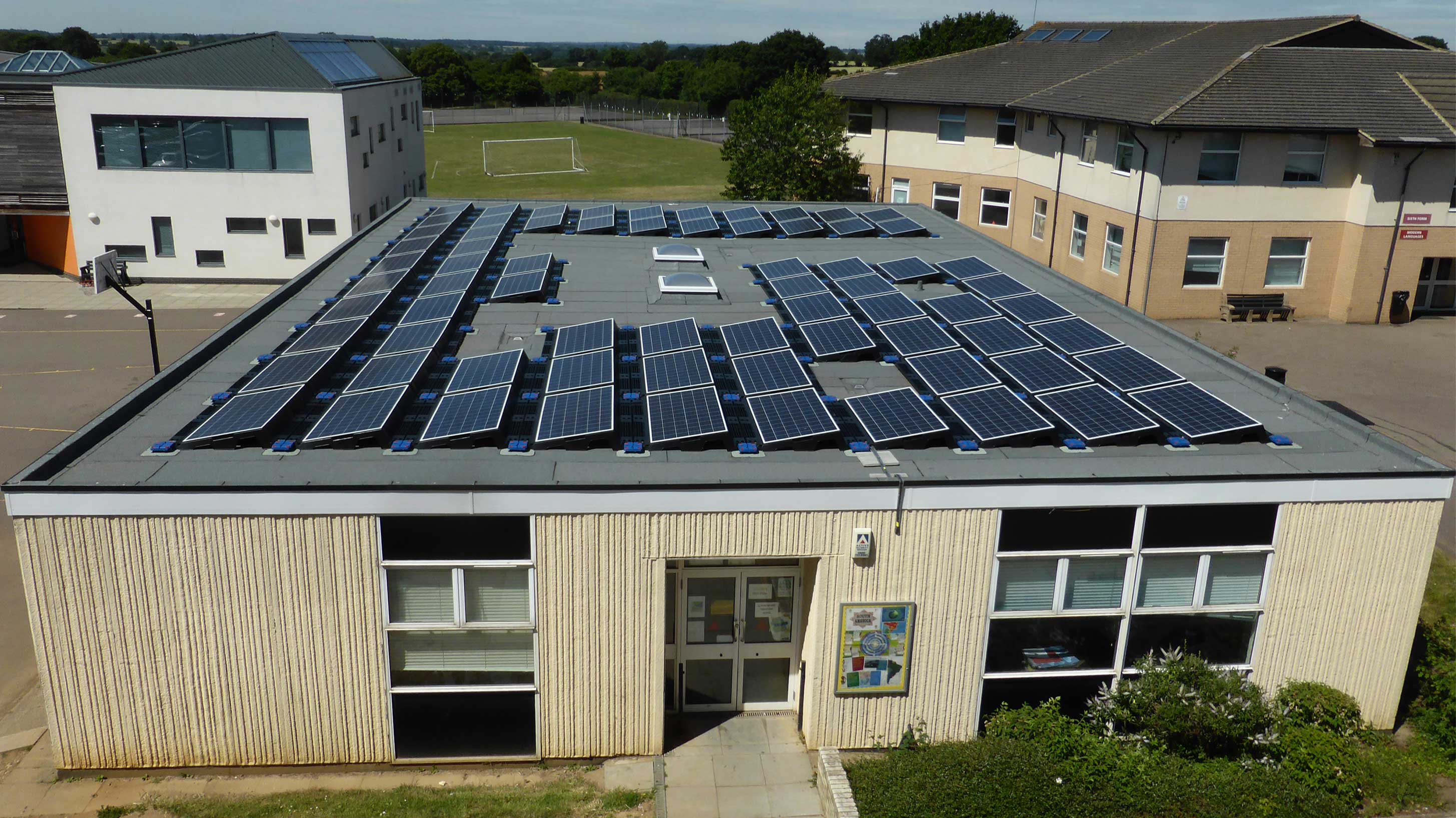

  • Roundwood Park School roof with Solar Panels and rooflights

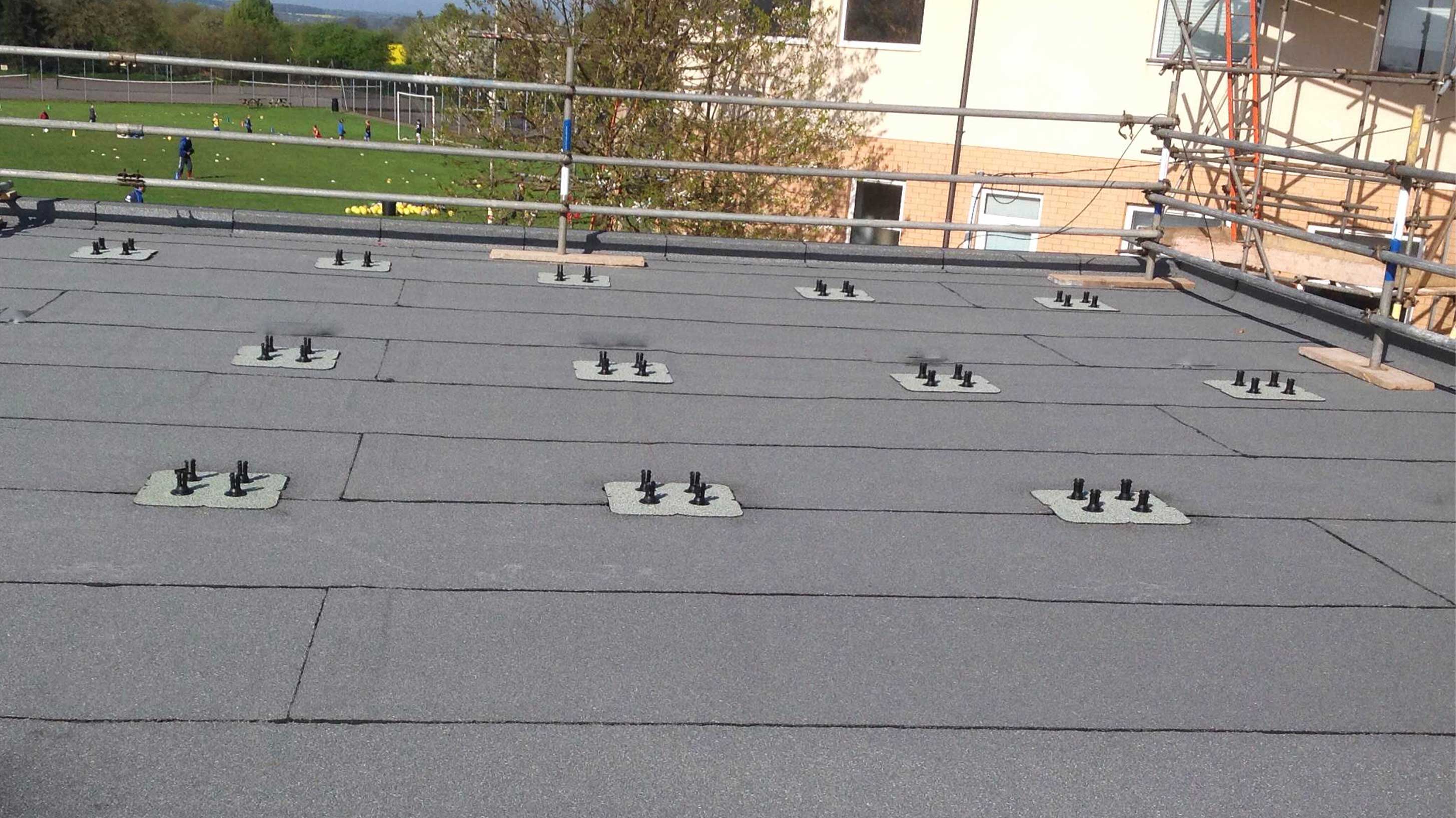

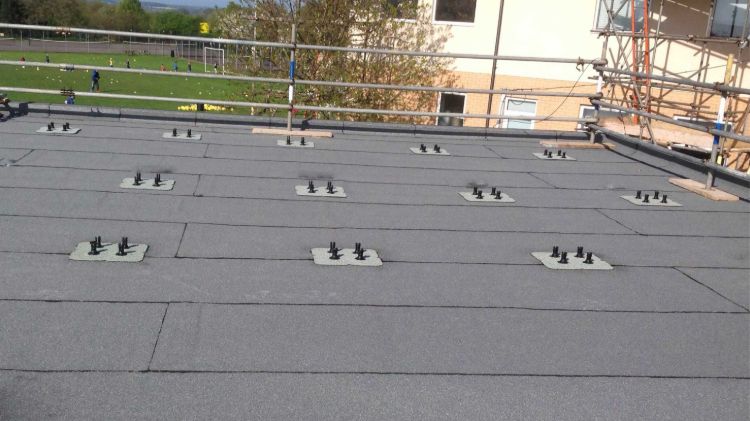

  • Roof of Roundwood Park School being prepared for BauderSOLAR installation

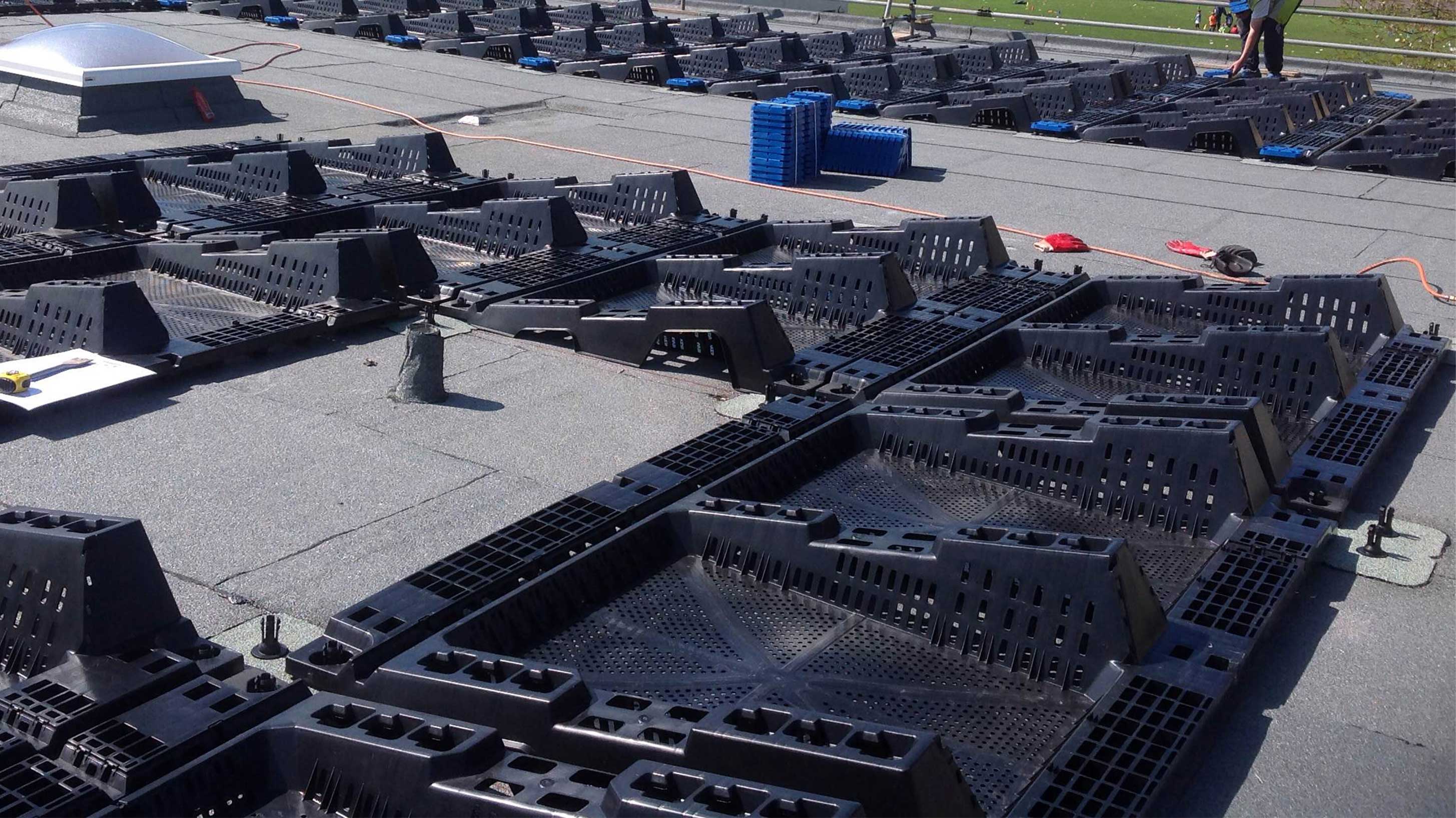

  • Roof of Roundwood Park School being prepared for BauderSOLAR fitting

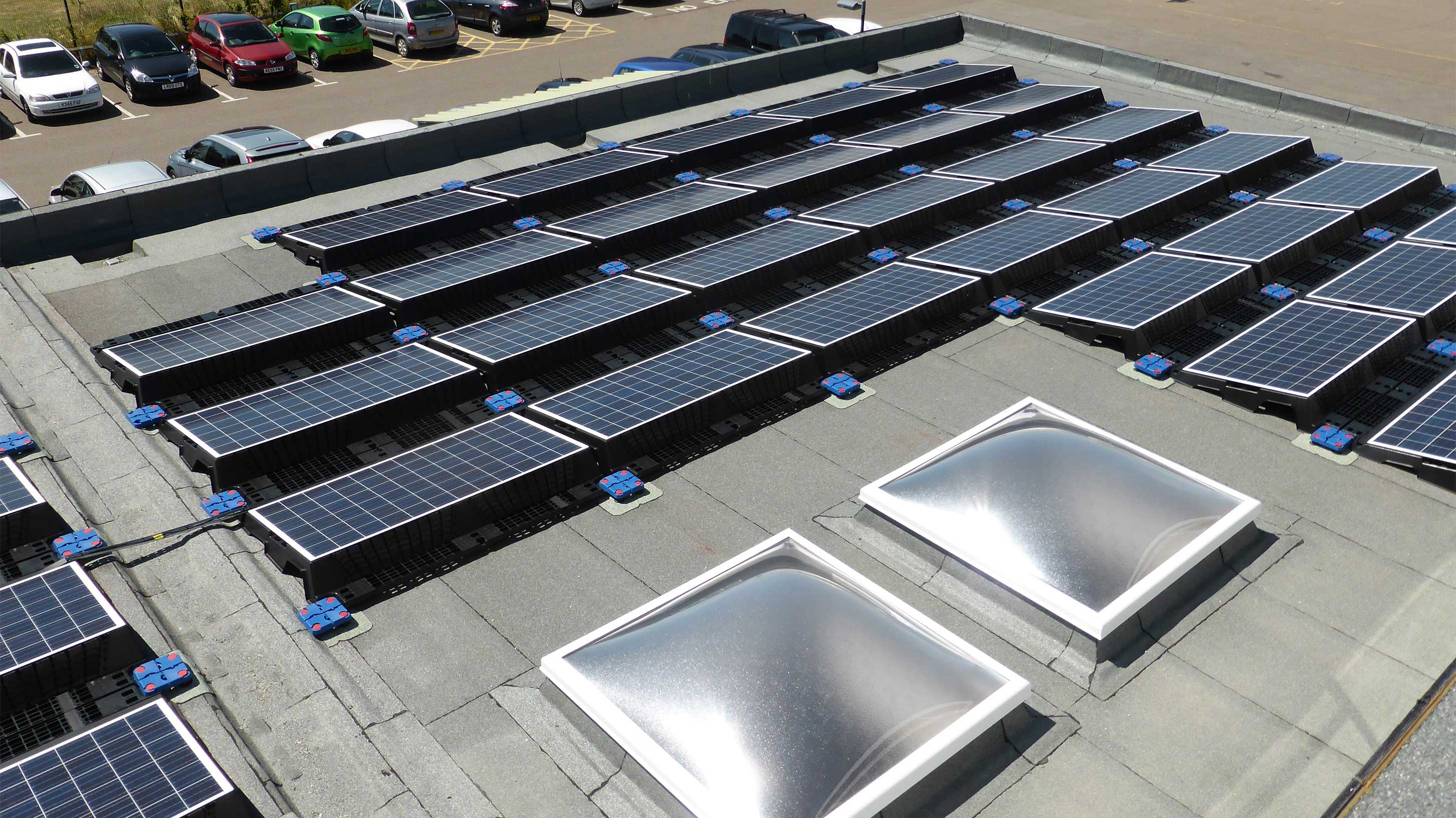

  • Roundwood Park School roof with Bauderflex bituminous system with BauderSOLAR and Bauder rooflights

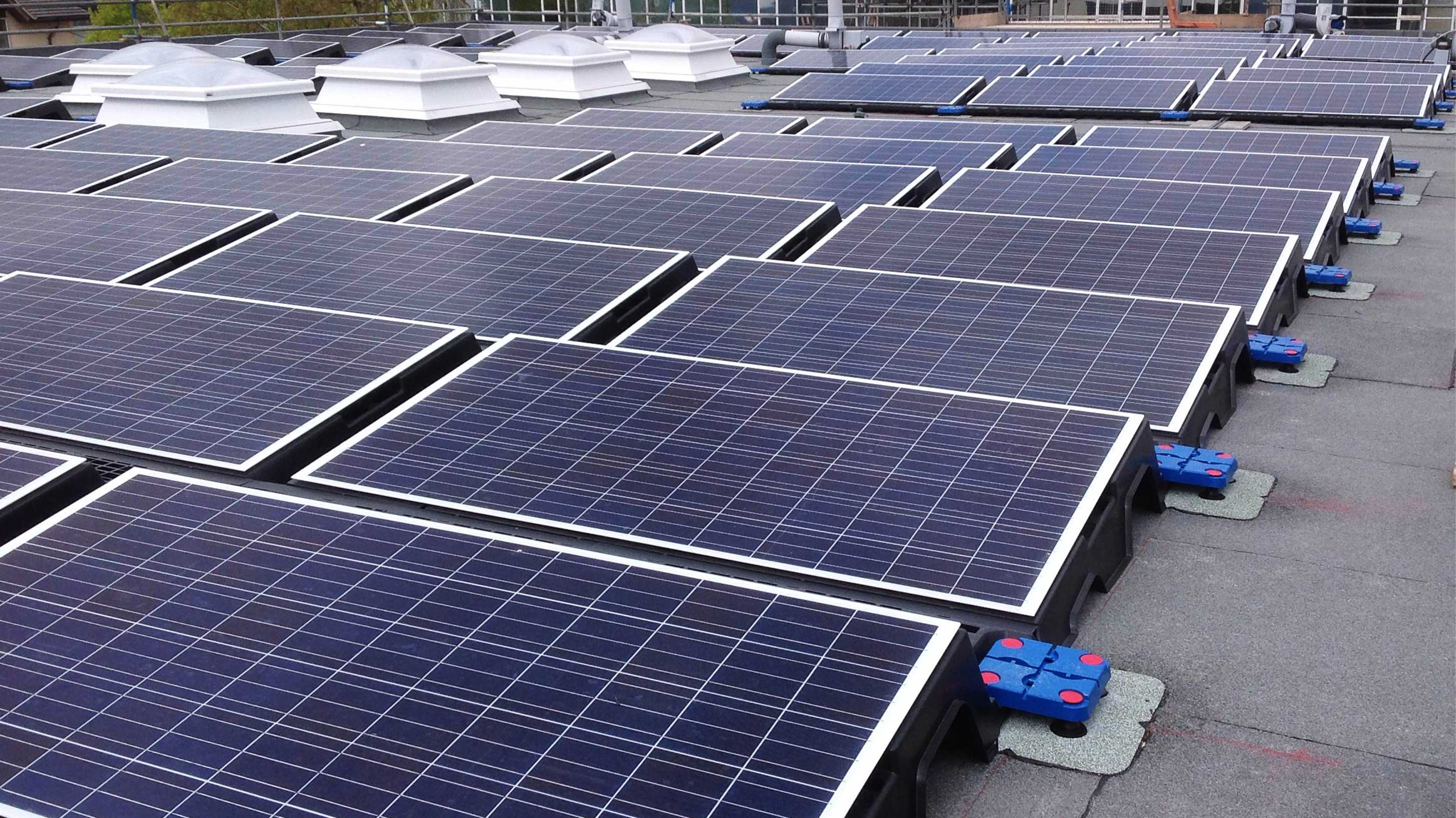

  • Roof of Roundwood Park School with BauderSOLAR fitted

Buader Building Board

Project

Roundwood Park School

TypeRefurbishment
LocationHarpenden
Rood size5,200 m2
Specifier

Wilby & Burnett

Approved contractor

Span Roofing Contractors Ltd

PV funding facilitator

Evogreen Plc

The specification

All the roof areas were waterproofed with Bauder’s reinforced bituminous system Bauderflex. The system build-up included Bauder’s highly efficient BauderPIR T G tapered insulation providing the required falls to the roof without incorporating them into the structure. 67 Bauder rooflights were also fitted providing essential daylight and ventilation to the building interior.

Bauder’s solar PV system was installed consisting of 470 PV modules whose individual performance can be monitored online; enabling the school to generate at least 130.28 megawatt hours of solar power each year. Bauder worked with sustainable energy funding specialists Evogreen to ensure Roundwood can enjoy all the associated financial benefits of their PV system without any up-front capital costs.

Products applied

Bauderflex system:
This bituminous membrane is resistant to high levels of structural and thermal movement.

Bauder solar PV system:
Our PV system was installed with 470 PV modules being fitted.

Bauder rooflights:
Bauder rooflights are fully compatible with all Bauder waterproofing systems and hold BBA certification.

Project challenges

The school remained open throughout the project creating logistical challenges. However, all roofing works were timed so as not to cause any disruption to ongoing work at the school.

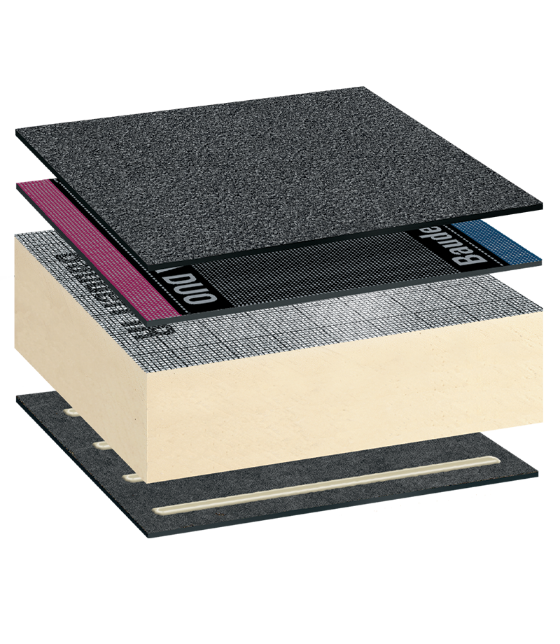

System Build Up

Bauder Reinforced Bituminous Waterproofing System

Bauder Reinforced Bituminous Waterproofing System

Bauder Reinforced Bituminous Waterproofing System

with BauderSOLAR and BauderROOFLIGHTS

Our Bauderflex system offers an alternative to the specifier on a tighter budget as it uses thinner elastomeric bitumen membranes compared to BTRS and BTRS PLUS.
