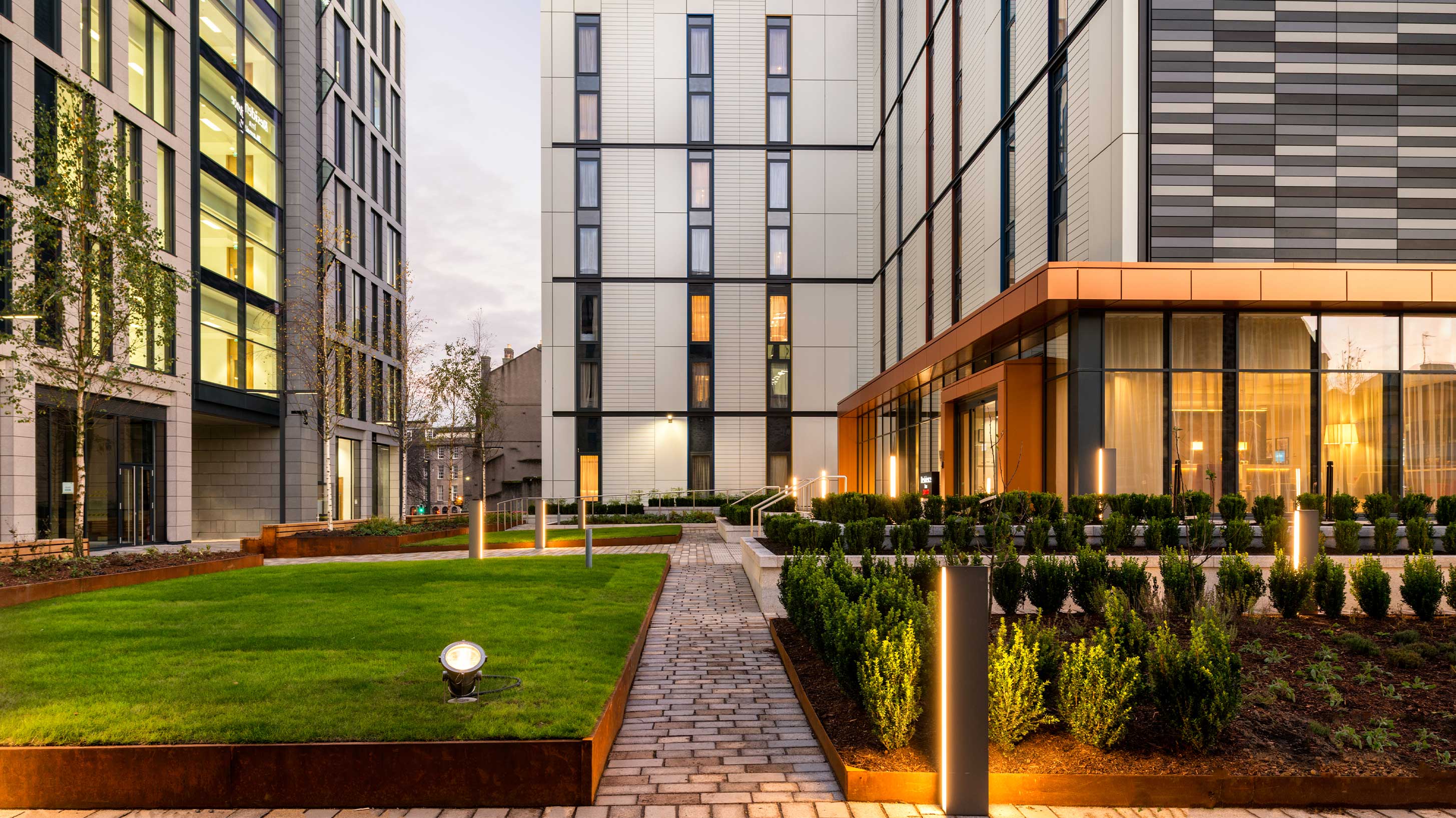

sunset view of Marischal-Square, a modern building in Aberdeen

Marischal Square

Bauder Bakor Hot Melt structural waterproofing

Project Type:
New Build
Sector:
Commercial
Environmental Focus:
Intensive Green Roof
System:
Hot Melt
Location:
Scotland

Synopsis

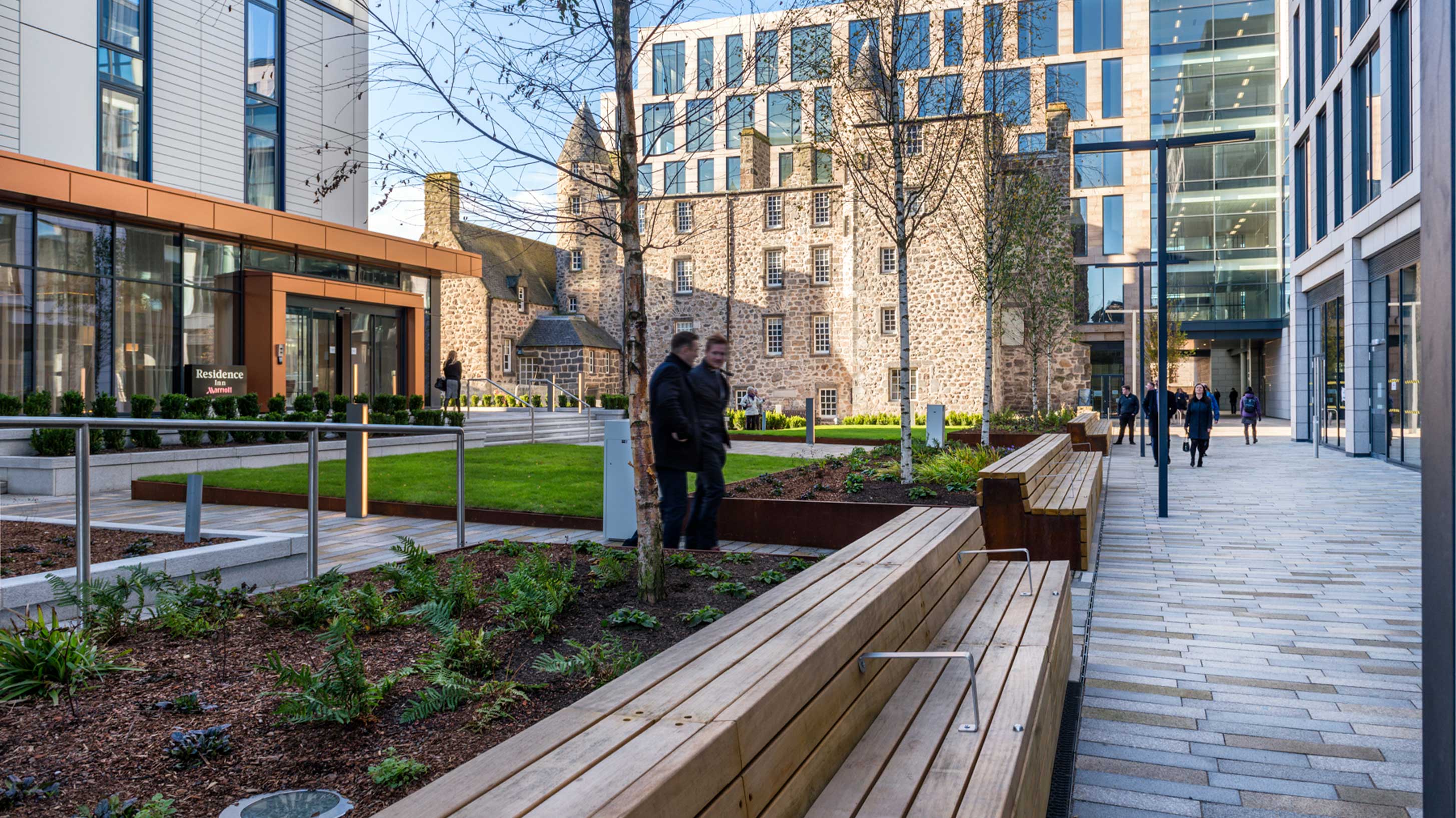

Marischal square is a mixed use complex in the centre of Aberdeen based on the site of the former council headquarters building, St. Nicholas House. In 2011 Muse Developments undertook a £107m redevelopment of the site creating space for two new office buildings, seven restaurants and café bars, a 126-room hotel, a modern civic space and a new public space area in between the new buildings.

  • Modern architectural rooftop with wildflower blanket to provide environmental benefits
  • Haberdashers’ Boys’ Pre-Preparatory School with Bauder total green roof system
  • New Morden building for Waitrose
  • Sedum system
  • Sedum system on roof

Bauder Building Board

Location

Bury St Edmunds, Suffolk

Waterproofing system

Thermofol PVC System

Project

West Suffolk College, Australia House

Roof size

1,650 m²

Specifier

Pick Everard Architects

Approved contractor

C-Eco Roofing Ltd

TypeRefurbishment

The specification

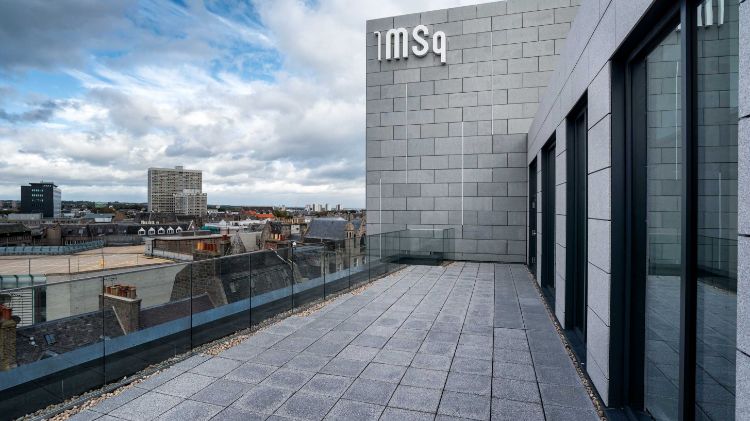

With large parts of the new roofing areas being accessible terraces and areas which will experience a significant amount of foot traffic, the Bauder hot melt structural system was a natural choice. The system was combined with hard and soft landscaping to provide the different aspects of the various terraces, stairways, podium decks and rooftops.

The Bauder Hot Melt structural waterproofing system is ideally suited as a waterproofing system beneath paved or ballasted surfacing, car parks, podiums, plazas, green roofs and substructures.

Project challenges

A key challenge for this project was the fact that Muse Developments and Morgan Sindall, who were working jointly on the development, were looking for a single source waterproofing. Bauder proved to be the perfect fit, covering and delivering all elements of the waterproofing systems.

The result

Approved contractor Briggs Amasco carried out the works on the 5,400m² of the separate roof areas, whilst expert Bauder site technicians carried out a total of 26 site visits over the duration of the project to ensure the quality of the installations. Following a final inspection, Bauder was able to issue a 20 year product and workmanship guarantee on the project.

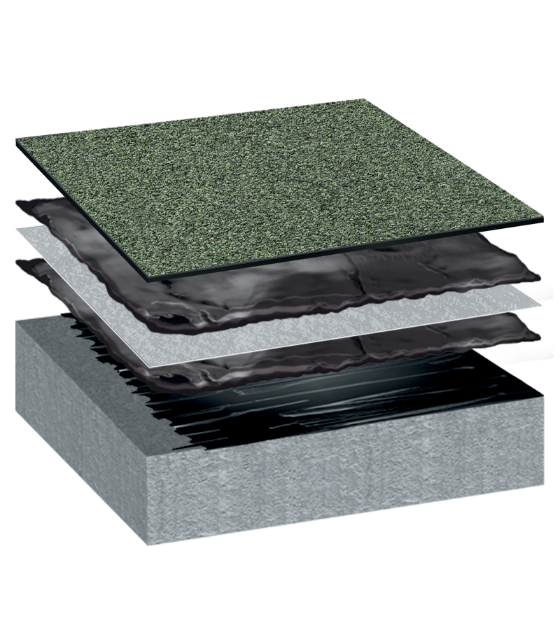

System Build Up

Bauder Bakor 790-11 waterproofing system

Bauder Bakor Hot Melt structural waterproofing

Bauder Bakor Hot Melt structural waterproofing

Visit our Technical Centre for more information
