Modern refurbished building with bauder total roof system installed

90 Hills Road

Bauder Total Roof System (BTRS)

Project Type:
Refurbishment
Sector:
Commercial
Environmental Focus:
Insulation Proficiency
System:
Reinforced Bitumen Membrane
Location:
East of England

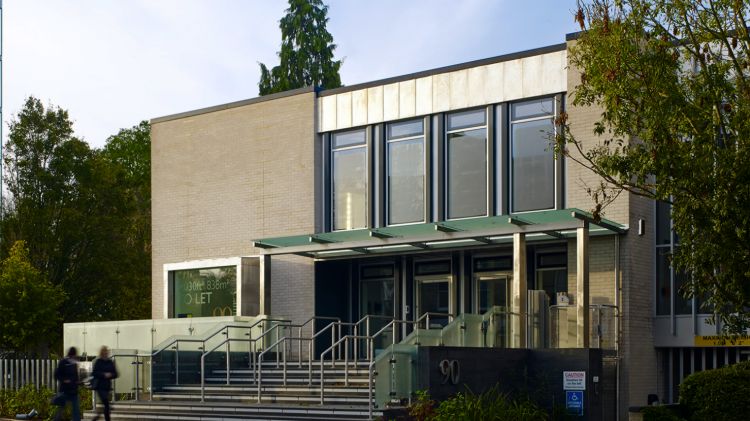

  • Modern refurbished building with bauder total roof system installed

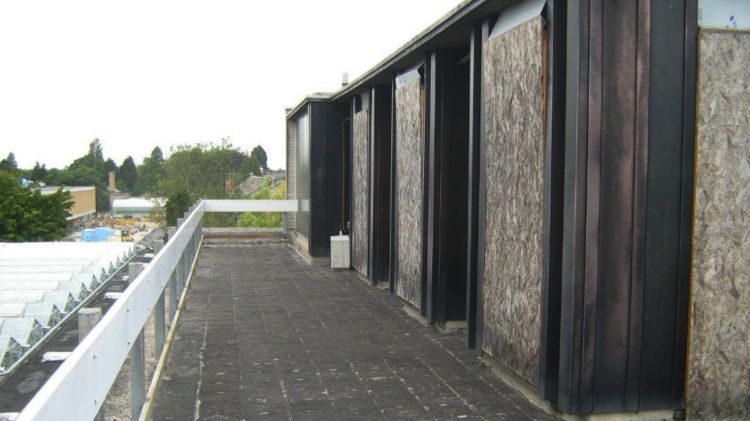

  • Building rooftop being refurbished

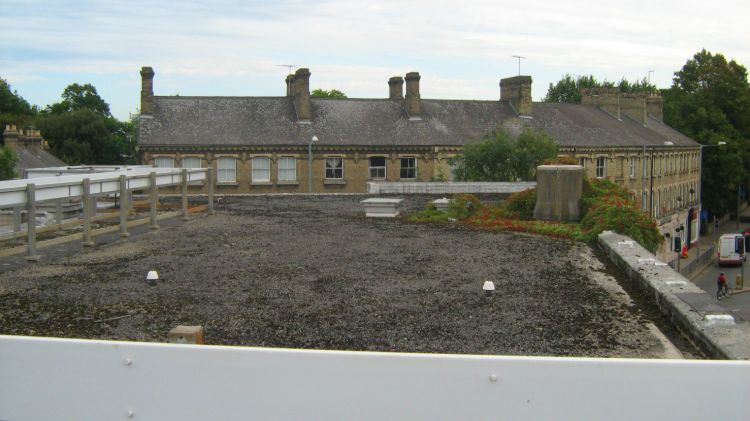

  • Building rooftop under construction

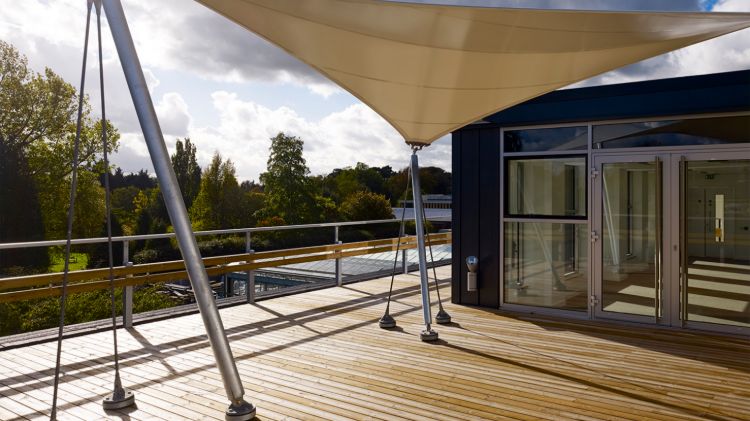

  • Modern rooftop with Canopy

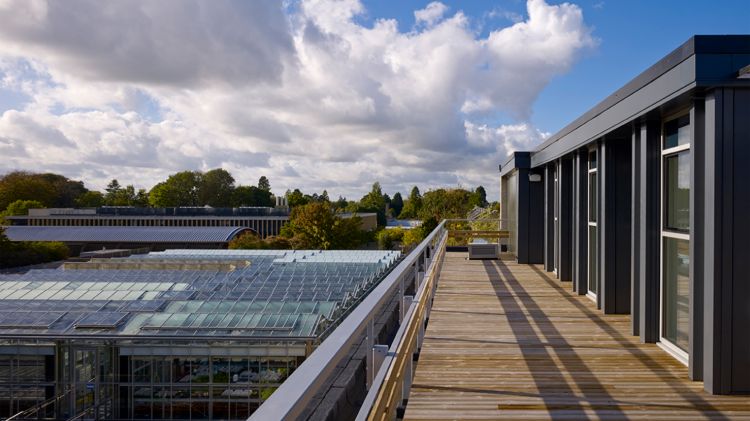

  • Modern building space with greenery surrounding it

Bauder Building Board

Project

90 Hills Road

TypeRefurbishment
LocationCambridge
Roof size

700 m²

Specifier

Barber Casanovas Ruffles Ltd

Main contractor

Morgan Sindall Construction Plc

Approved contractor

Voland Asphalte Company Ltd

The specification

Bauder Total Roof System (BTRS) was specified since it is durable, robust and can withstand permanently sited loads of up to 2000Kg/m². The system build-up included 140mm BauderPIR FA-TE insulation for superior thermal performance, ensuring the roof achieved the required 0.17 U-Value.

Products applied

Bauder Total Roof Sytem (BTRS):
Fully integrated bituminous waterproofing, featuring modified bitumen membranes and high-performance insulation.

BauderPIR FA-TE:
Flatboard insulation containing rigid polyisocyanurate (PIR).

Project challenges

The roof area was complex due to balustrade penetrations, low upstands, redundant rooflight units and intricate detailing requirements. Work hours had to be agreed with local residents to keep disruption to a minimum and insulation upgrades were necessary to satisfy building regulations. The client also wanted a roof canopy and lift shaft installed through the new waterproofing, which would need to withstand regular foot traffic and obviously remain watertight.

Despite the design and logistical challenges encountered, the new roof system was delivered on time and to budget transforming the building in terms of appearance, performance and functionality.

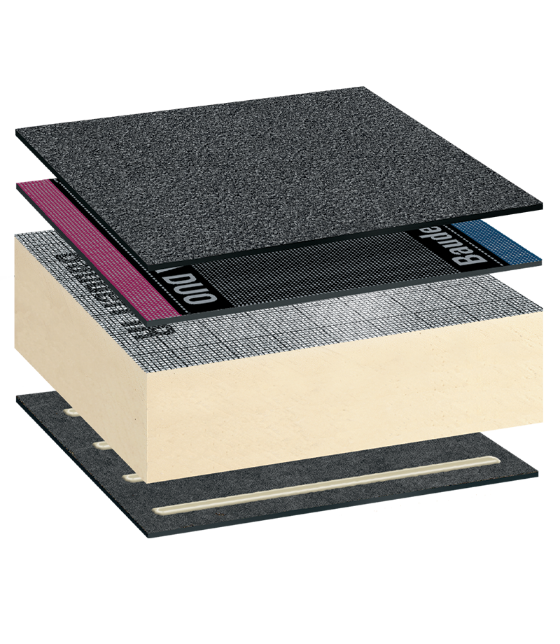

System Build Up

Bauder Total Roof System (BTRS)

Bauder Total Roof System (BTRS)

Bauder Total Roof System (BTRS)

Our long-established Bauder Total Roof System (BTRS) incorporates elastomeric bitumen membranes for strength and durability on flat roofs.

Visit our Technical Centre for more information
Thickness (mm)5.2
Weight (kg/m2)0.25

Advocacy

Project specifier, Barber Casanovas Ruffles Ltd:

“The delivery and technical support provided was incredibly efficient and professional throughout. All issues experienced were dealt with swiftly by Bauder, ensuring progress wasn’t hindered on site.”
