University roof with bauder thermofol pvc single ply roof system with Infill Overlay System

Profiled PIR Infill Overlay System

Upgrade the thermal performance of an existing metal profile roof with PIR insulation and single ply waterproofing.

Profiled PIR Infill Overlay System

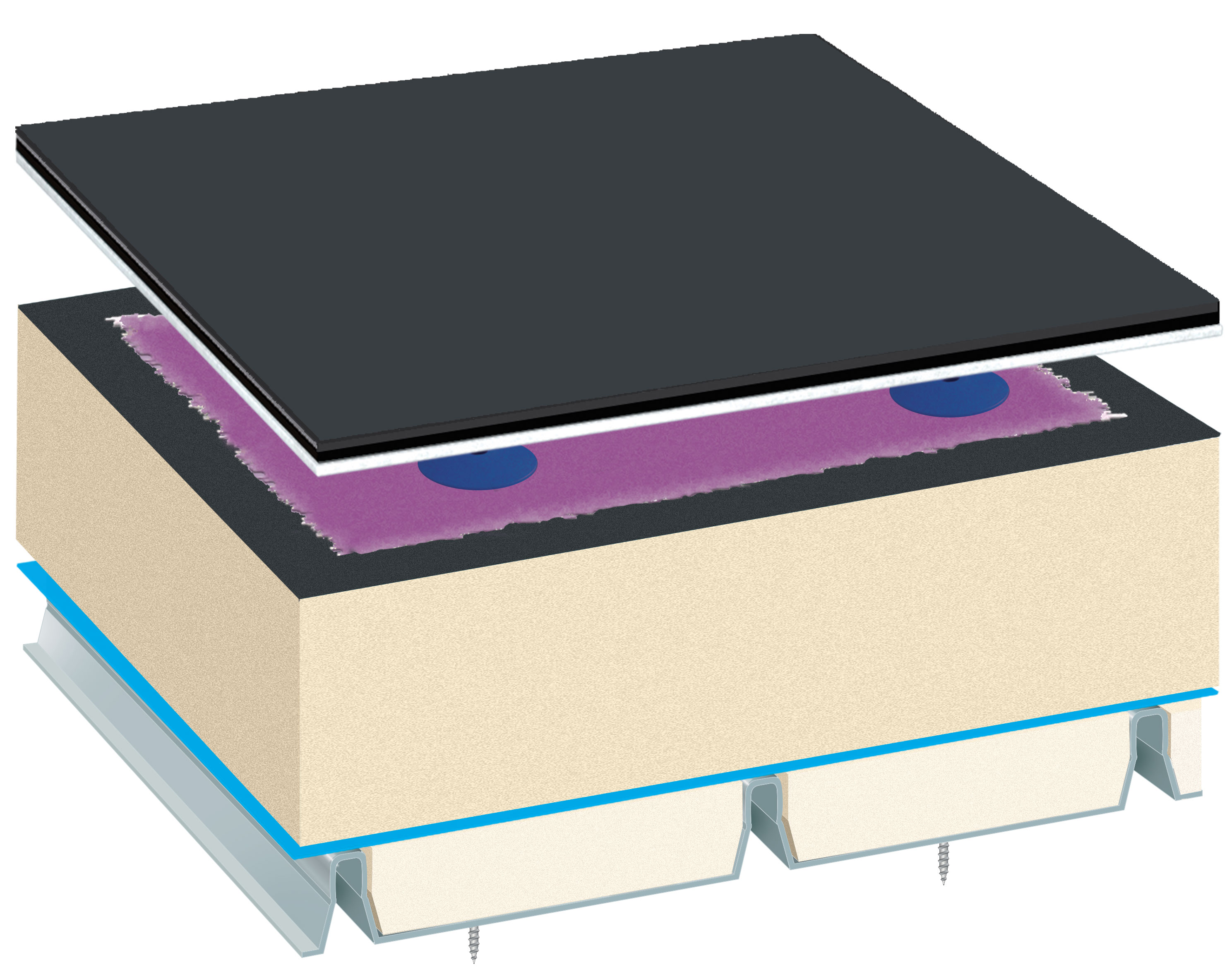

The system incorporates a PIR insulation infill that is cut to match profiled sheet metal and roof structures. The system then adds a BauderPIR FA flatboard insulation and a single ply membrane to complete the overlay solution.

Profiled PIR Infill Overlay System

When to specify

The Profiled PIR Infill Overlay System is primarily intended for refurbishing profiled sheet metal roofs whilst also increasing their thermal performance, bringing the construction up to current building regulation requirements.

The PIR insulation infill boards are cut on-site to ensure they match the existing sheets and can support the FA PIR. U-values are calculated using the thickness of both the PIR infill and FA PIR flatboard insulation boards.

Plus points
  • Overlay system for upgrading thermal properties of an existing profiled sheet metal roof.
  • Suitable for use with Thermofol (PVC) & Thermoplan (FPO) systems.
  • Single source supply of all components.
  • FM Approved Assemblies for Thermofol as defined on the FM online database ‘RoofNav’.
  • A comprehensive range of guarantee packages to suit project and cover requirements.
  • The system will bring the construction up to current building regulation requirements.
Assessments and verifications
  • BBA Certificate 06/4354 for Thermofol and 04/4120 for Thermoplan:
    Fire classification BROOF(t4) to BS EN 13501-5 tested to TS 1187 test 4 for external fire exposure on defined permutations of product build up.
    Fire properties – membranes deemed “unrestricted” in certain circumstances as categorised in the BBA certificate.
    Service life > 30 years for a Thermoplan system and >35 years for Thermofol.
  • EPD Certification:
    Our membranes and insulations have recognised environmental product declarations (EPD).
  • Benefits:
    Cost-effective compared to stripping and renewing waterproofing.
    Different thicknesses of insulation are available to deliver U-value required by the project.
    Lightweight solution (circa 6kg/m2 for 140mm PIR with single ply overlay).
    Minimal interruption to the internal workings of the building.
Download specification resources
Profiled PIR Infill Overlay system
Total Thickness (mm)193.66
Total Weight (kg/m2)8.0

Profiled PIR Infill Overlay system

In-depth and up-to-date product-specific technical data is available for each element within a system.

Download system summary:

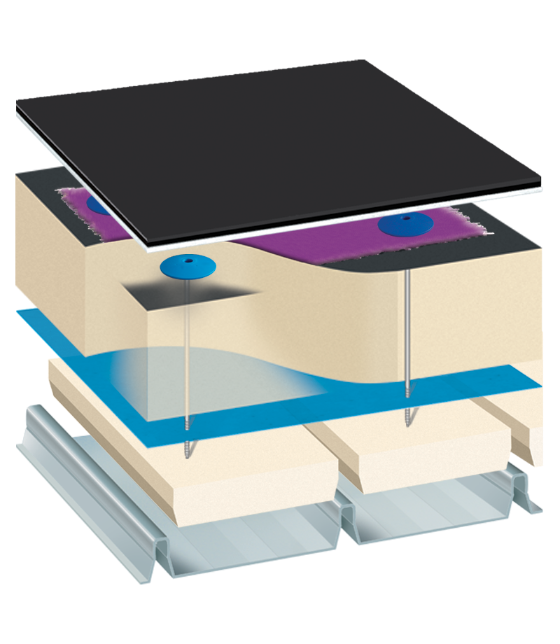

BauderThermofol PVC Single Ply - PIR infill installation

Visit our Technical Centre for more information
Thickness (mm)3.5mm
Weight (kg/m2)2.0

Approvals, certification and guarantee

  • Comprehensive range of guarantee packages to fulfil cover requirements for the project (dependent on system/product selection). For more information contact us for a sample guarantee outlining cover level, terms and conditions.
  • Service life > 30 years for a Thermoplan system and >35 years for Thermofol.
  • Fire classification BROOF(t4) to BS EN 13501-5 tested to TS 1187 test 4 for external fire exposure on defined permutations of product build up.
  • Fire properties – membranes deemed “unrestricted” in certain circumstances as categorised in BBA certificate.
Certifications

Examples

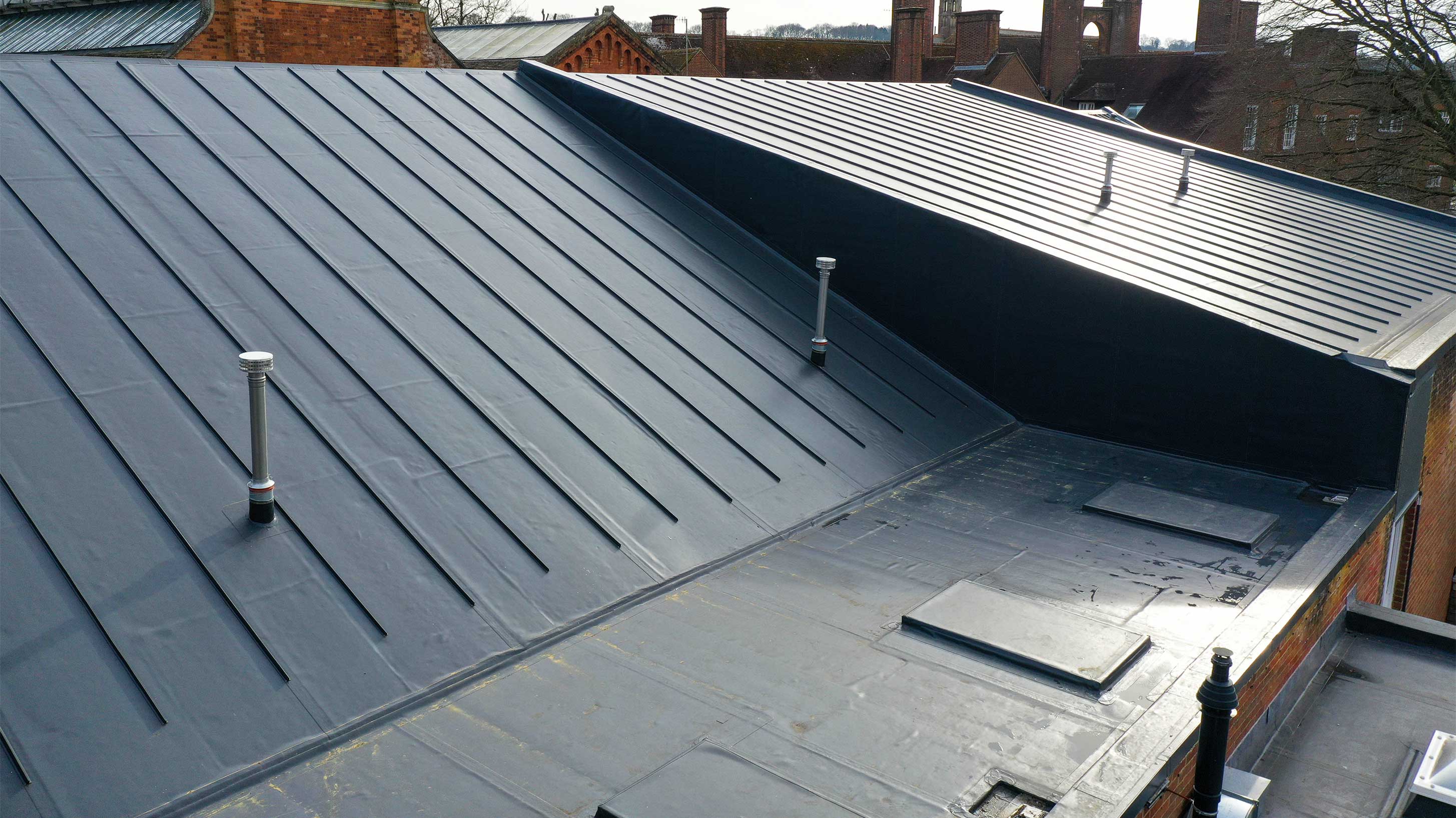

  • Roof of Marlborough College with Bauder Thermofol single ply waterproofing system installed

    Marlborough College, Thermofol PVC System with Profile Overlay

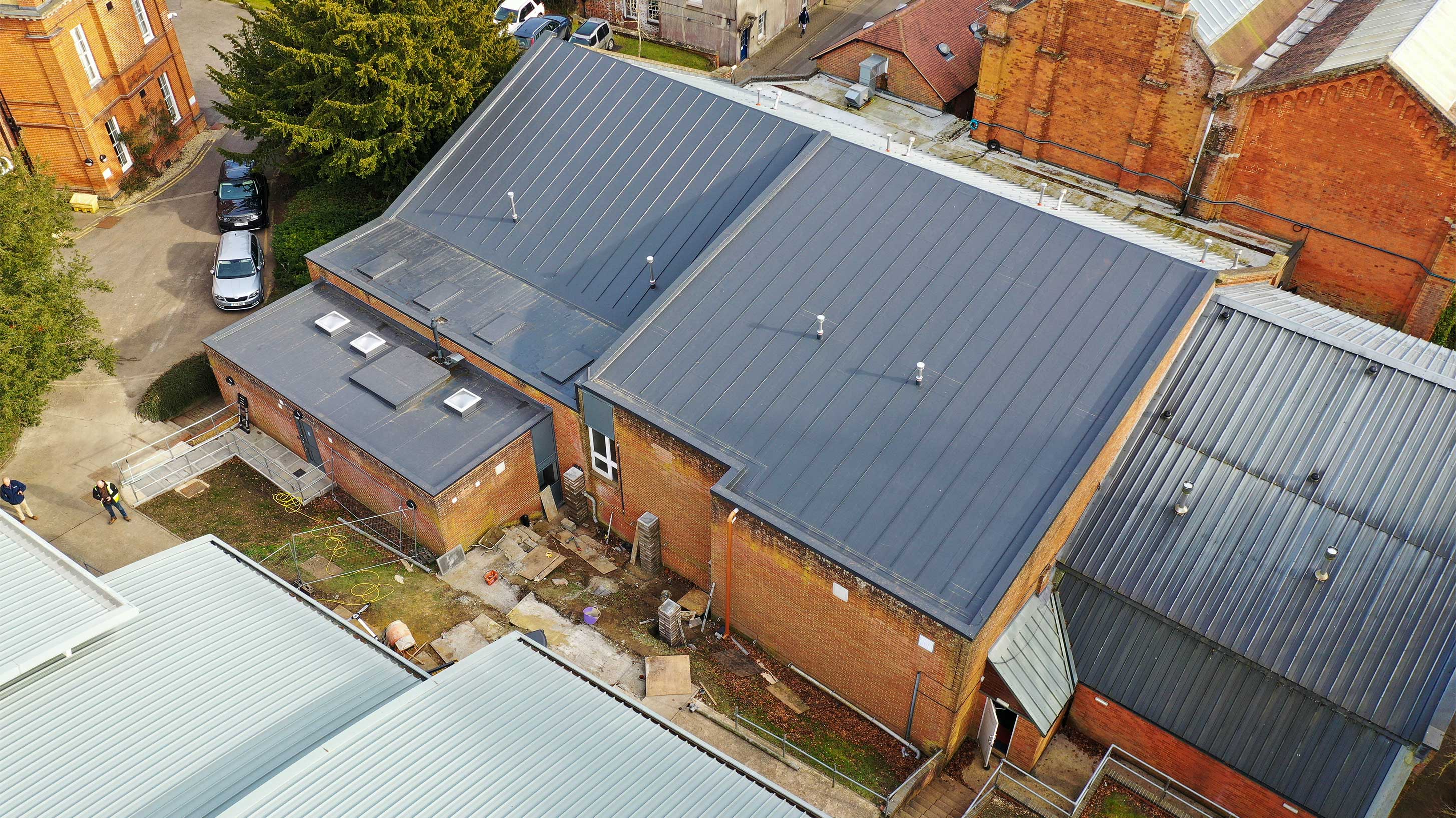

  • Aerial view of Roof of Marlborough College with Bauder Thermofol single ply waterproofing system installed

    Marlborough College, Thermofol PVC System with Profile Overlay

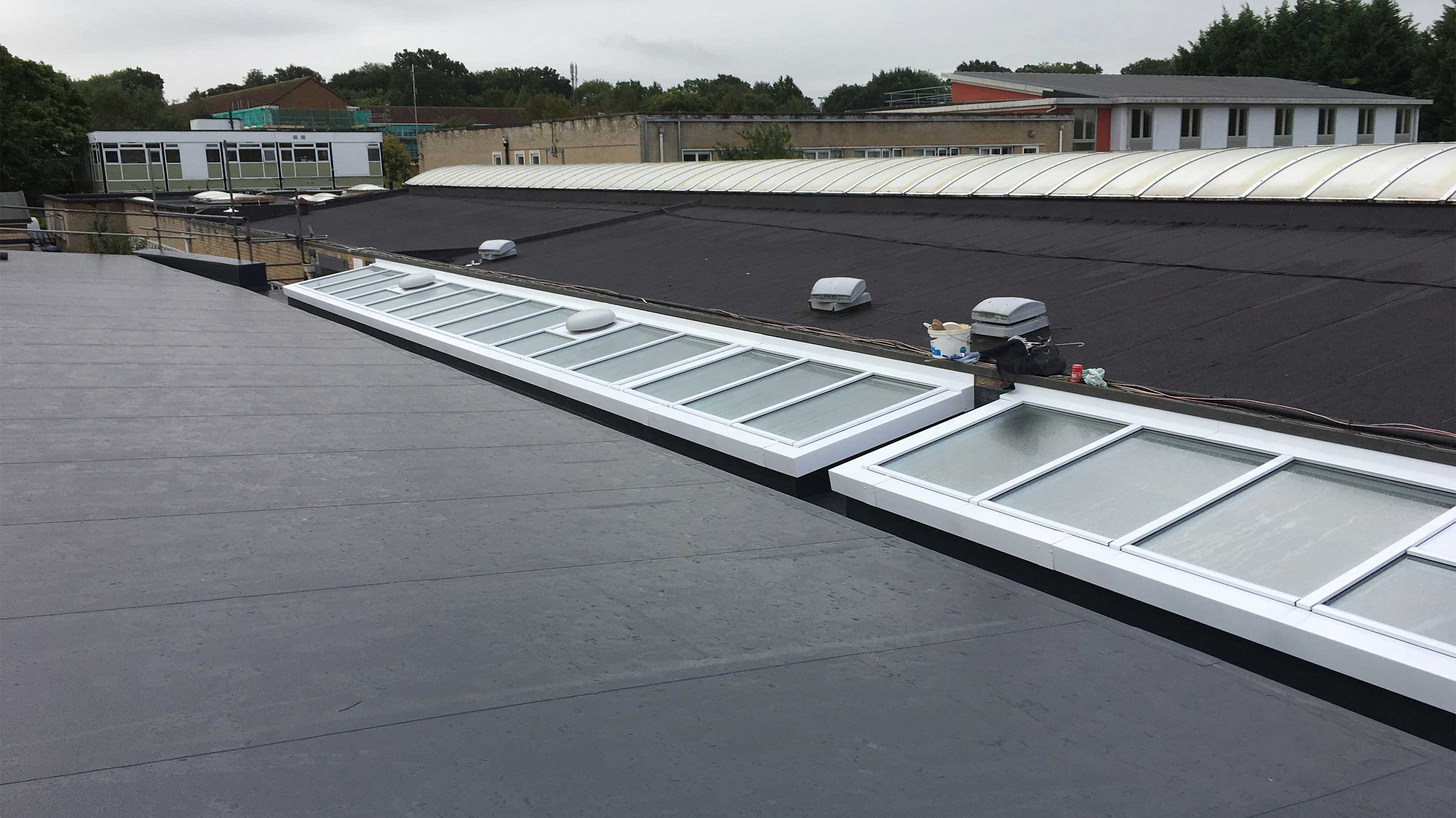

  • Roof of George Abbott School with Bauder Thermofol single ply waterproofing system installed with Bauder Euroglaze rooflights

    George Abbott School, Thermofol PVC System with Profile Overlay

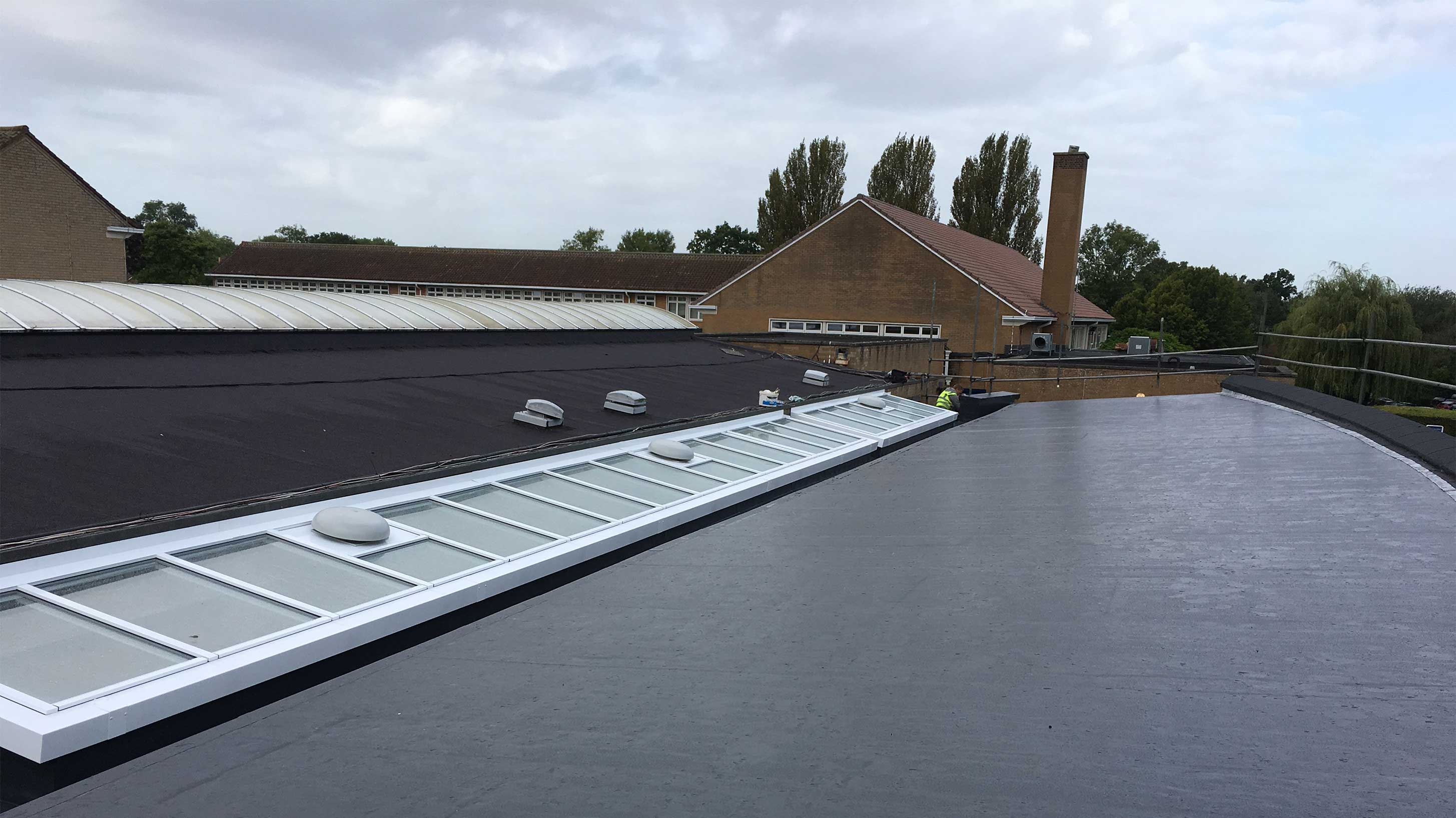

  • Roof of George Abbott School with Bauder Thermofol single ply waterproofing system installed with Bauder Euroglaze rooflights
