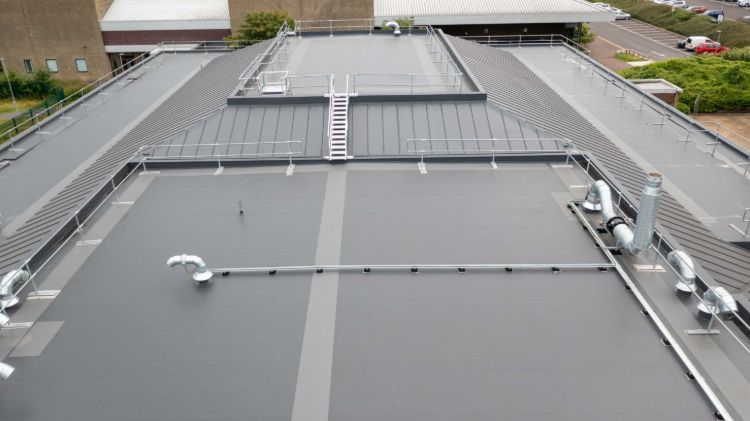

Aerial view of University of West England W Block

University of West England W Block

BauderThermofol PVC single ply waterproofing system with profiled infill overlay system

Project Type:
Refurbishment
Sector:
Education
Environmental Focus:
Insulation Proficiency
System:
Single Ply
Location:
South West

Synopsis

The University of West England is a higher education provider, located in Bristol. W Block, situated in the main Frenchay campus had become dated, therefore the building undertook a full refurbishment to transition into a modern faculty centre for fine print research.

The existing single ply waterproofing and composite panels were aged and failing, therefore the specifier’s main objectives with this refurbishment project, were to source a lightweight waterproofing solution and thermally upgrade the roof.

This project was shortlisted by the Single Ply Roofing Association (SPRA) for Best Refurbishment 2021 and Best Sustainability 2021.

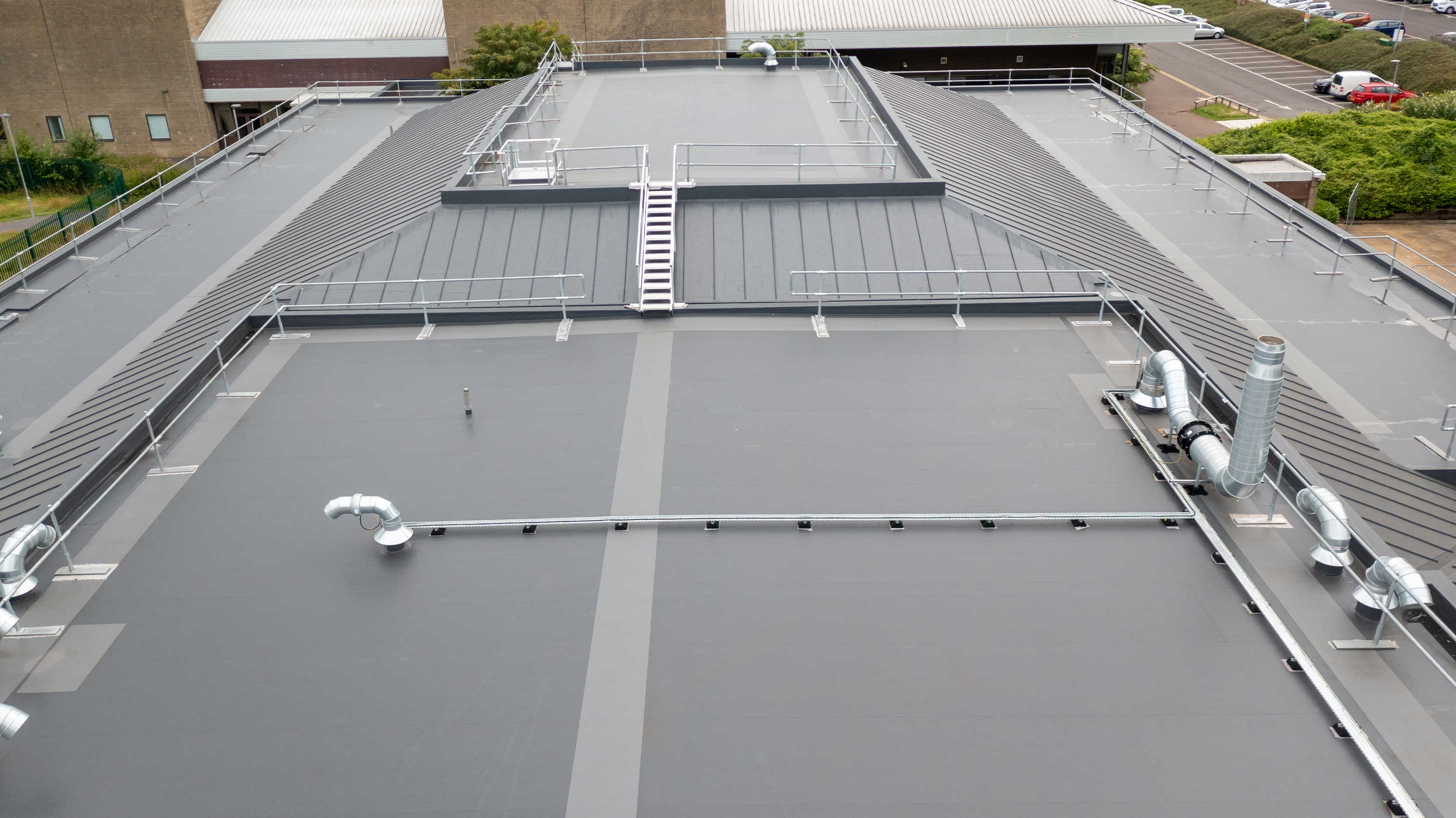

  • Aerial view of University of West England W Block

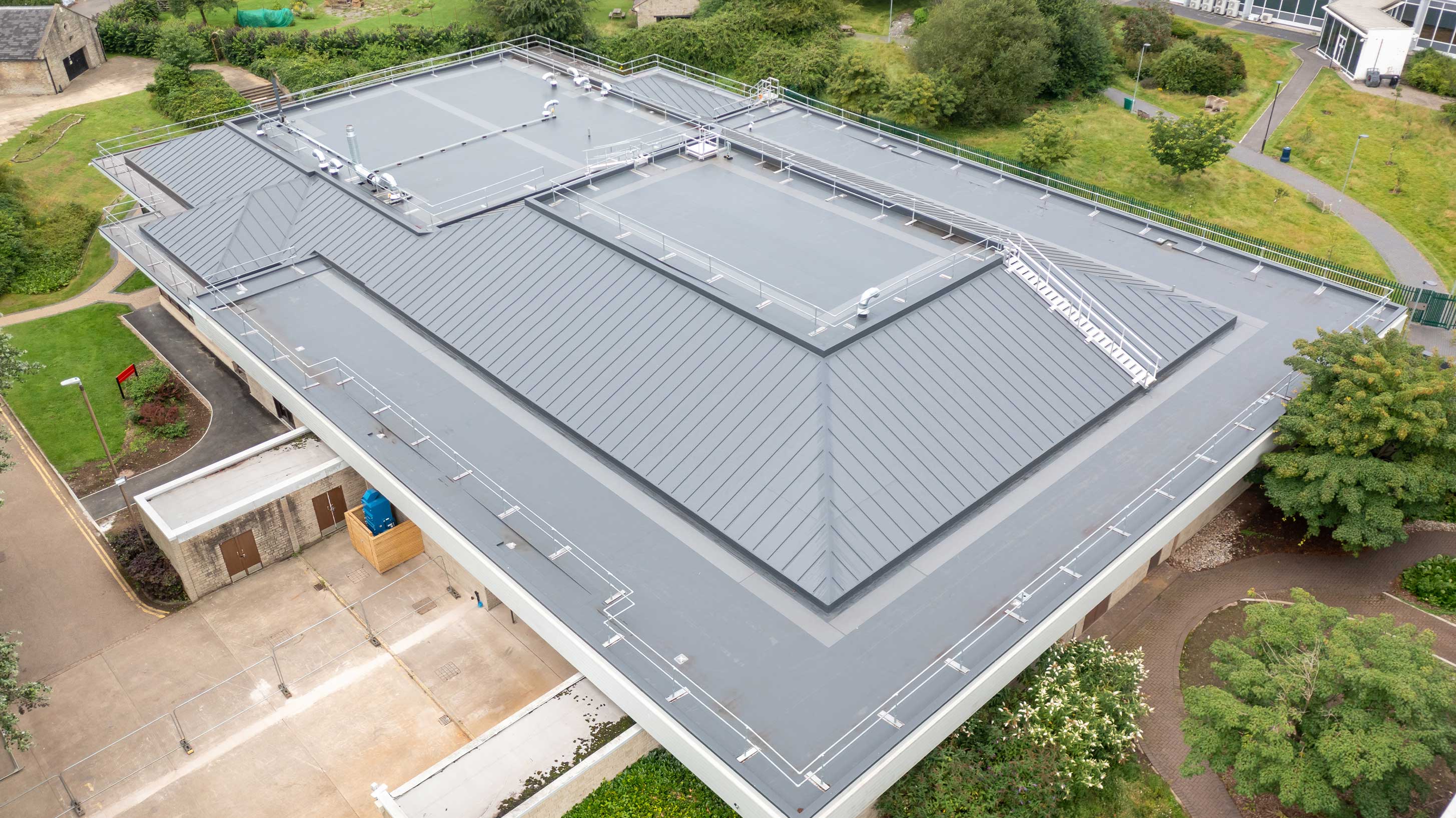

  • Aerial view of University of West England W Block

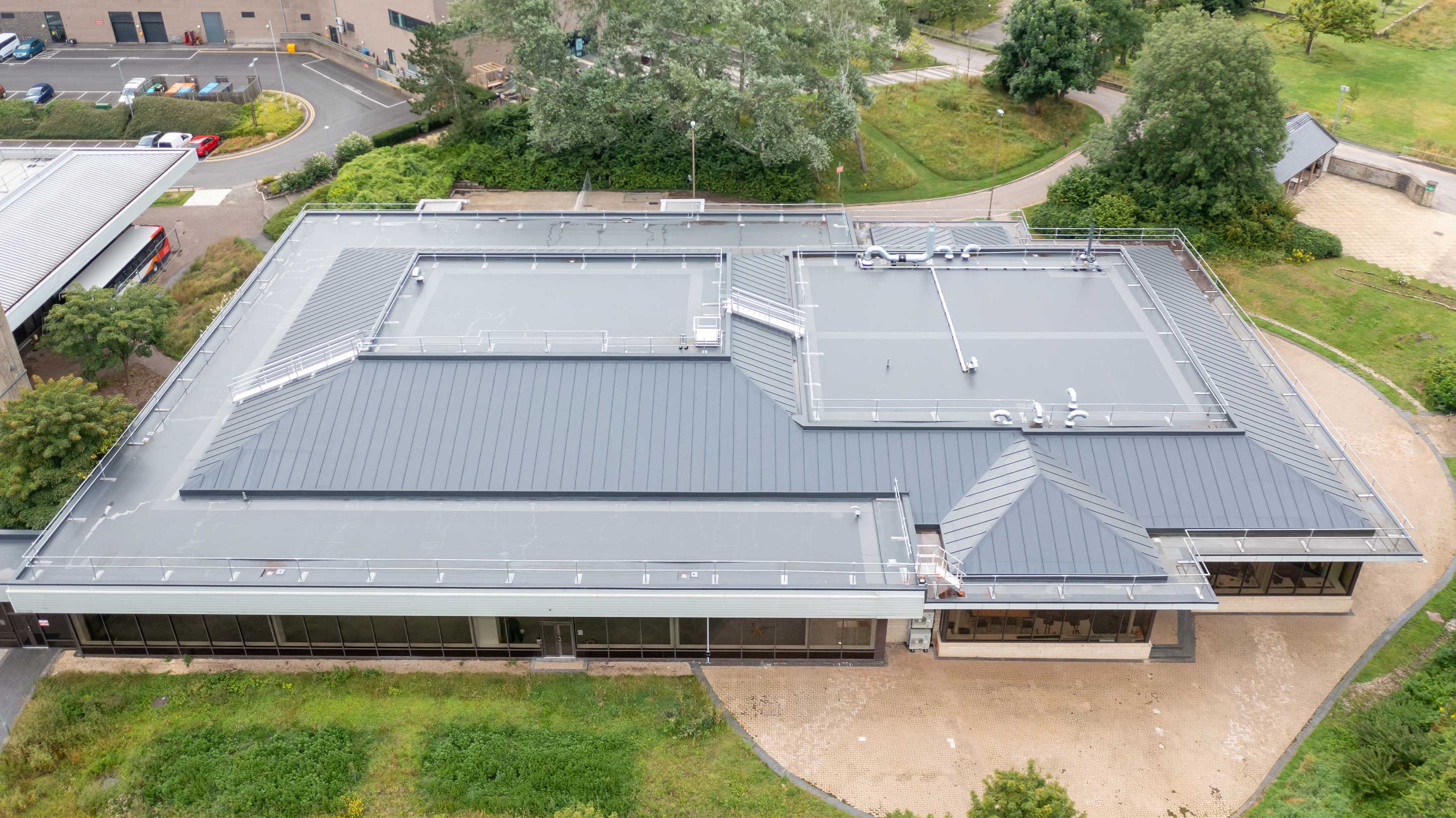

  • BauderThermofol PVC single ply system with profiled infill overlay system shown on University of West England W Block

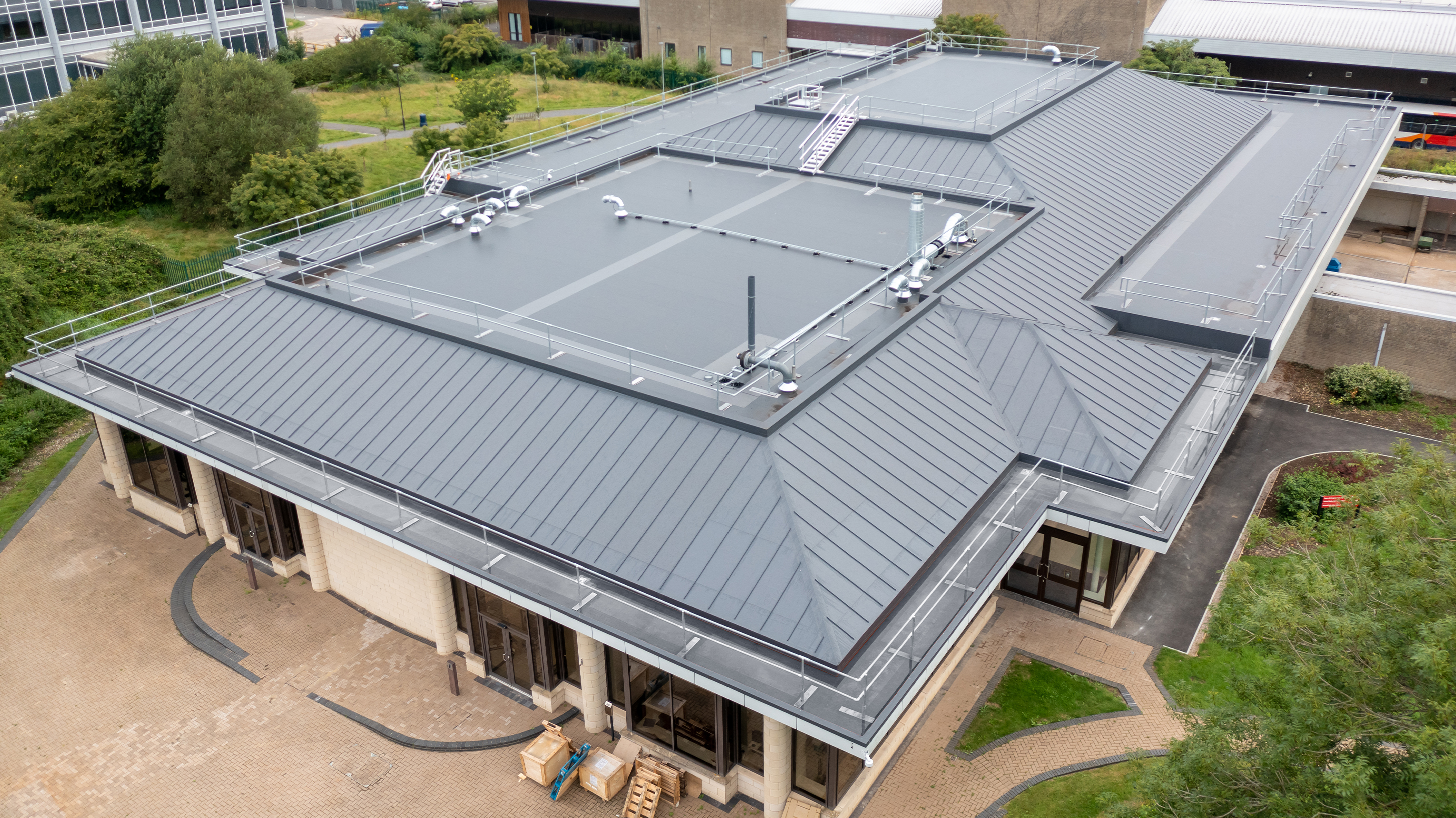

  • BauderThermofol PVC single ply system with profiled infill overlay system shown on University of West England W Block

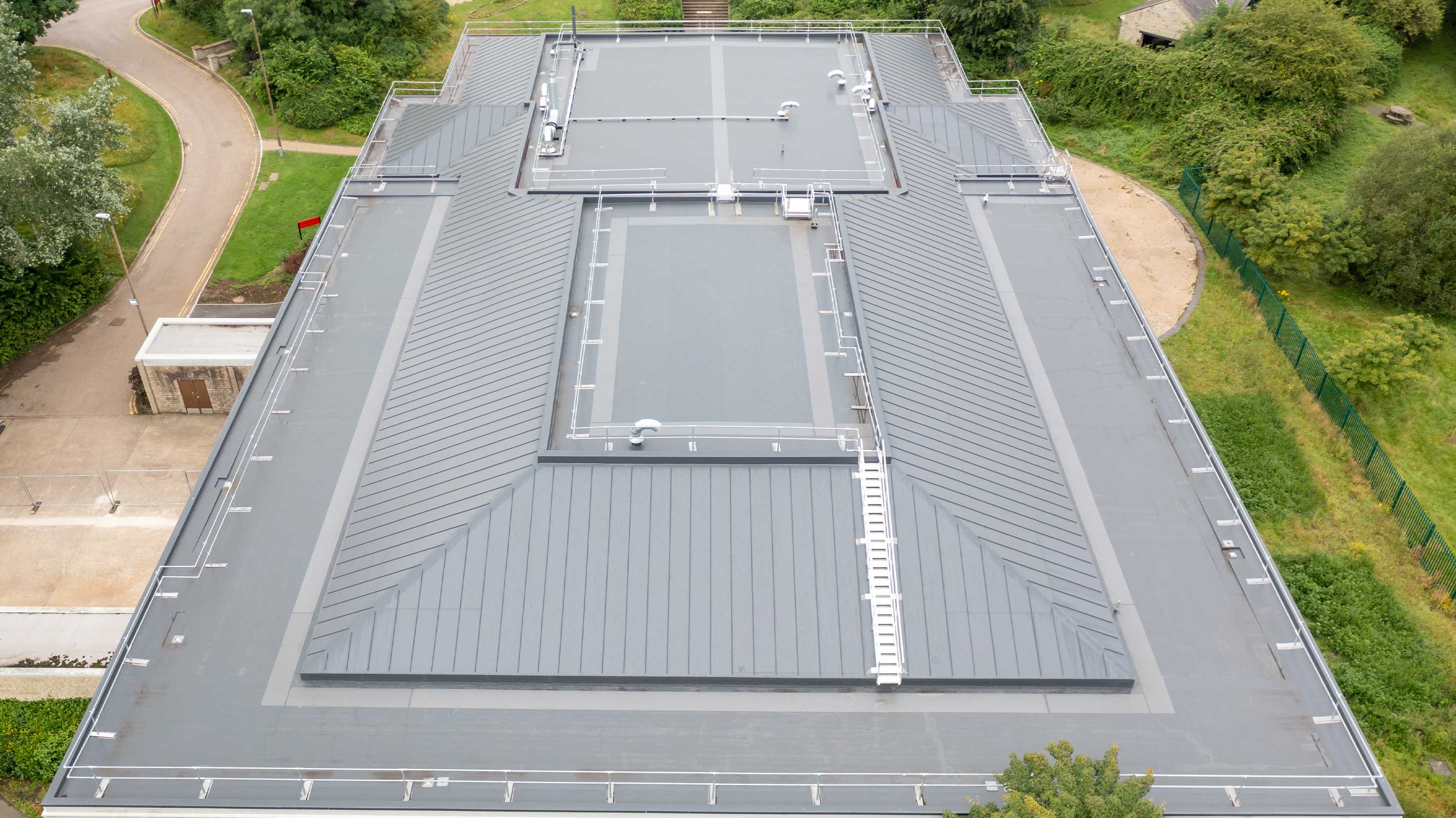

  • Aerial view of University of West England W Block

Bauder Building Board

Location

Bristol

TypeRefurbishment
Specifier

John Perkins Construction

Project

University of West England – W Block

Roof size

3,177 m2

Approved contractor

Urban Roof

The specification

Bauder Thermofol single ply system was chosen to overlay the existing single ply and pitched composite panels due to its lightweight properties and versatility. This membrane can successfully join the existing single ply and metal composite panels together to form one continuous roof covering inclusive of a thermal upgrade.

Project challenges

One of the main challenges during this refurbishment project was the weather, as the work was being carried out mid-winter. Roofing adhesives should be stored in temperatures between 5-25˚c . When adhesives are cold, their viscosity can increase making the product thicker and more difficult to apply. Initially an adhesive membrane attachment was specified, but to overcome the challenge caused by cold temperatures, the method of membrane attachment was changed to mechanically fastened.

The result

During the installation, the existing composite panels were overlaid with trough infills to create a flat surface where insulation was mechanically fastened above. The existing single ply areas were overlaid with solely the Bauder FA insulation. Bauder Thermofol membrane was then mechanically fastened over the entire area. Decorative profiles to replicate standing seams were then installed to the pitched area.

Our infill overlay system is primarily intended for refurbishing profiled sheet metal roofs or increasing the thermal performance of existing insulated cladding systems. This system provides a high compressive strength, simplicity of installation and excellent thermal performance.

At the specification stage, U-value calculations were carried out to determine the minimum thickness of insulation needed to ensure that the roof satisfies the current building regulations. This calculation also identified that the existing coverings could be re-used as the air & vapour control layer. By doing this, the client benefitted from cost savings resulting from the reduction in substantial amounts of labour and materials. Not only was the roof thermally upgraded, but the completed project was aesthetically pleasing. On completion, a full system product & workmanship guarantee was issued for the new roof.

The client benefitted from:

  • This system achieving fire classification BROOF (t4) and verified by the BBA as ‘unrestricted’ and suitable for use on any part of a roof.
  • The insulation infill solution being suitable for use with Thermofol (PVC) and Thermoplan FPO systems,
  • BBA certified product,
  • Single source supply,
  • One point guarantee,
  • No building interruption,
  • More cost effective than recladding.

System Build Up

BauderThermofol PVC Single-ply Waterproofing System with Bauder Profiled PIR Infill Overlay System

BauderTHERMOFOL PVC Single Ply Waterproofing System

BauderTHERMOFOL PVC Single Ply Waterproofing System

with Bauder Profiled PIR Infill Overlay System.

Our Thermofol PVC system includes polymers to create a flexible waterproofing membrane that is heat welded.

Our Profiled PIR Infill Overlay System is specific to match the profiled sheet metal and roof structure that it will overlay. The system then adds a BauderPIR FA flatboard insulation and a single-ply membrane to complete the overlay solution.

Visit our Technical Centre for more information
Thickness (mm)1,5(-5/+10%)
Weight (kg/m2)0.25
