Modern Animal Hospital with intensive landscaping

Small Animal Hospital

Bauder intensive landscaping and substrate system

Project Type:
New Build
Sector:
Healthcare
Environmental Focus:
Intensive Green Roof
System:
Reinforced Bitumen Membrane, Green Roof
Location:
Scotland

Synopsis

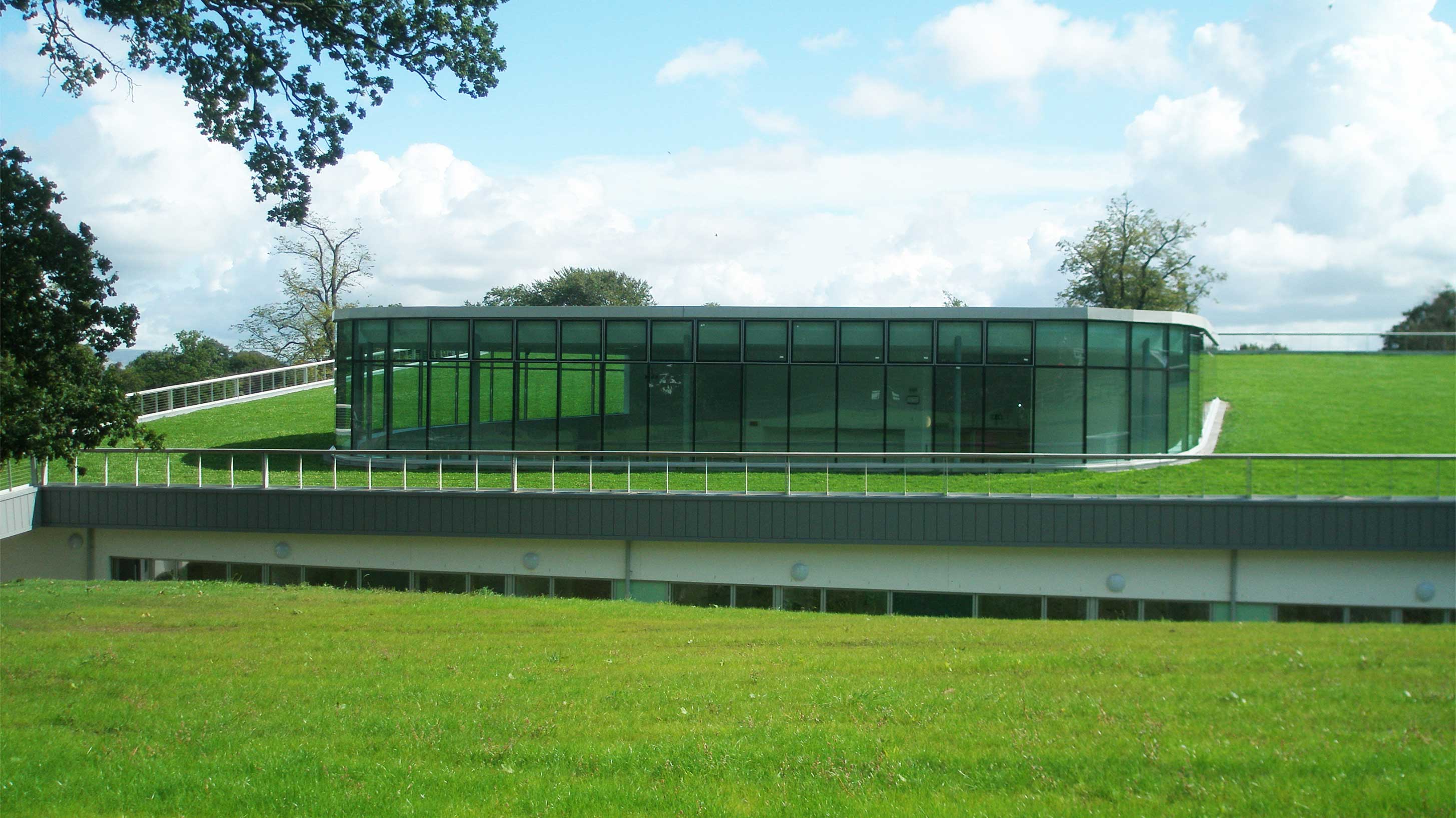

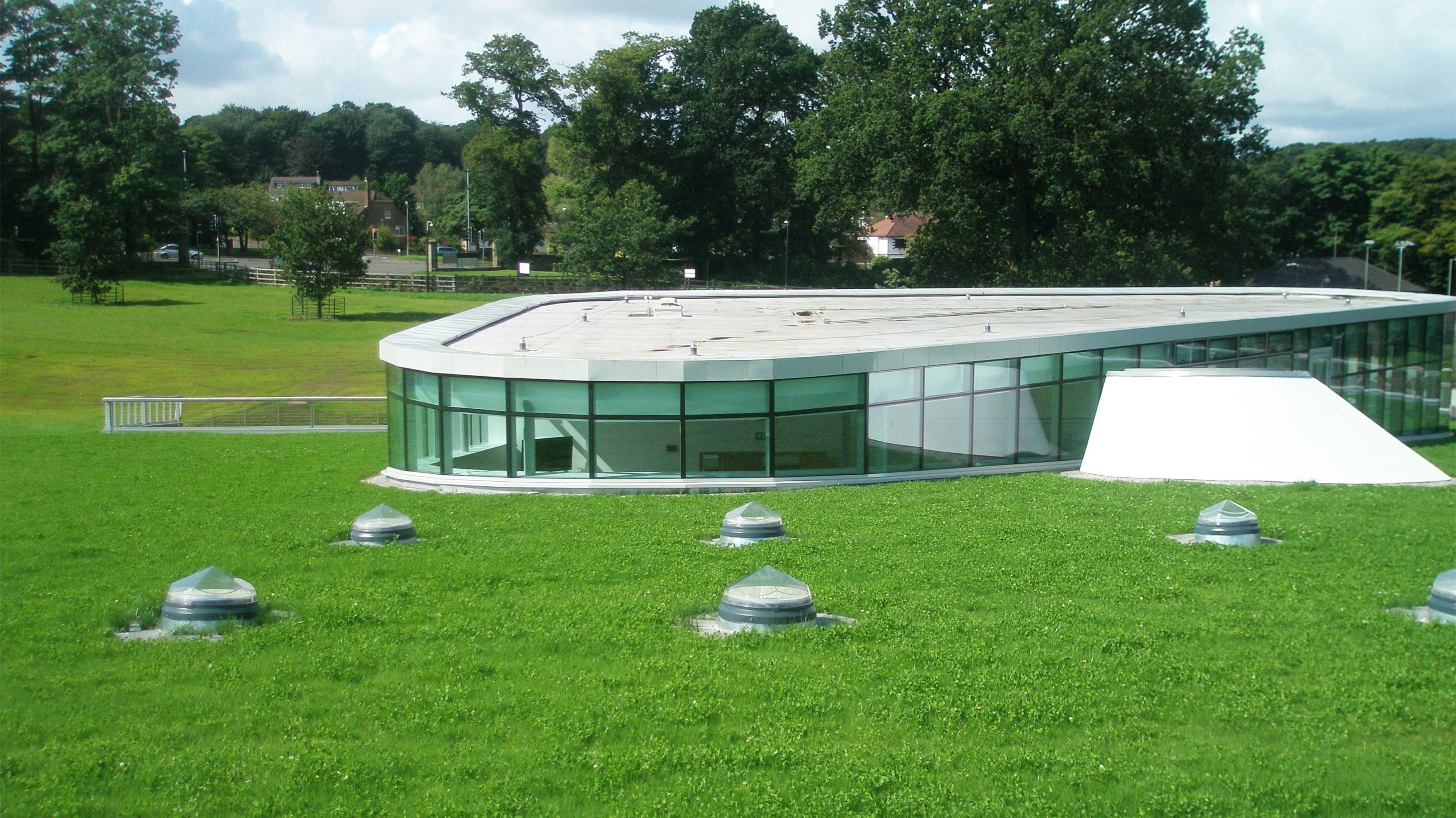

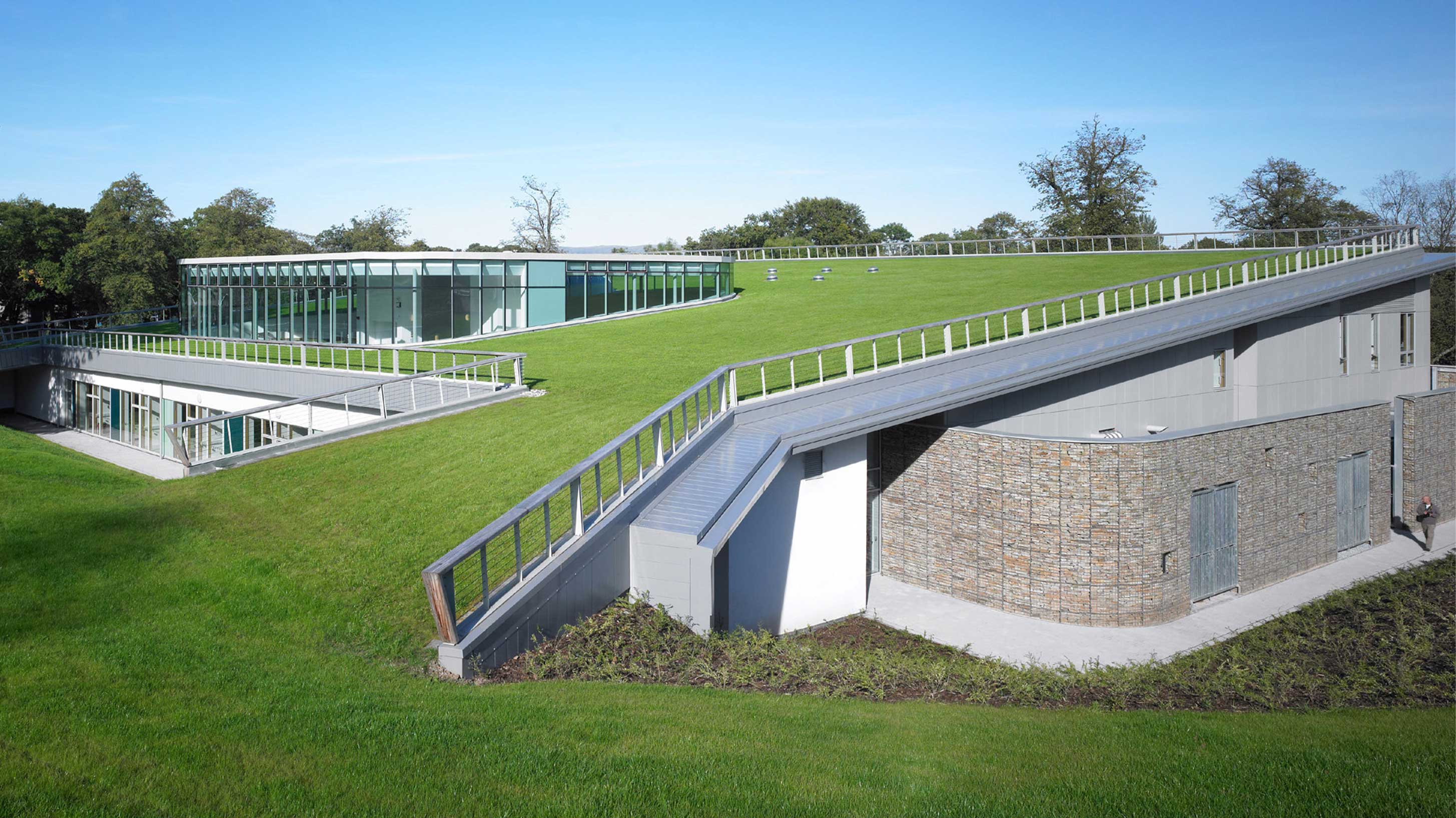

Set within the Garscube Estate, the hospital forms part of the University of Glasgow's faculty of veterinary medicine. Archial Group, the architect, designed the new build project with as minimal visual impact as possible, so the building was constructed within the side of a hill with a green roof. Towards the end of the roof’s construction a seeded grass finish was opted for.

Past experience proves that the open texture of traditional substrates can allow the seed to be blown off the roof and to migrate down into the growing medium to a point where it cannot germinate properly, creating a patchy finish. To prevent this, Bauder developed a specialist seed bed substrate mix to be used as a topdressing over their traditional intensive substrate, allowing the use of a grass seed mix that could easily blend with the surrounding grassland.

The seeds were dressed onto this top-dressing using traditional sowing techniques and equipment, which delivered both optimum germination and the swift establishment of a healthy, even greensward. The building seamlessly blends into its surroundings, inviting visitors to explore the roof top vantage.


  • Modern architectural rooftop with wildflower blanket to provide environmental benefits
  • Haberdashers’ Boys’ Pre-Preparatory School with Bauder total green roof system
  • New Morden building for Waitrose
  • Sedum system
  • Sedum system on roof

Bauder Building Board

Location

Bury St Edmunds, Suffolk

Waterproofing system

Thermofol PVC System

Project

West Suffolk College, Australia House

Roof size

1,650 m²

Specifier

Pick Everard Architects

Approved contractor

C-Eco Roofing Ltd

TypeRefurbishment

The specification

Past experience proves that the open texture of traditional substrates can allow the seed to be blown off the roof and to migrate down into the growing medium to a point where it cannot germinate properly, creating a patchy finish. To prevent this, Bauder developed a specialist seed bed substrate mix to be used as a topdressing over their traditional intensive substrate, allowing the use of a grass seed mix that could easily blend with the surrounding grassland.

Products applied

Bauder Seed Bed Substrate:

This substrate is a top-dressing growing medium, installed at a minimum depth of 25mm over either Bauder Biodiverse or Extensive substrates, when the roof is to be either seeded (with a non-Bauder Seed Mix) or to receive vegetation cuttings.

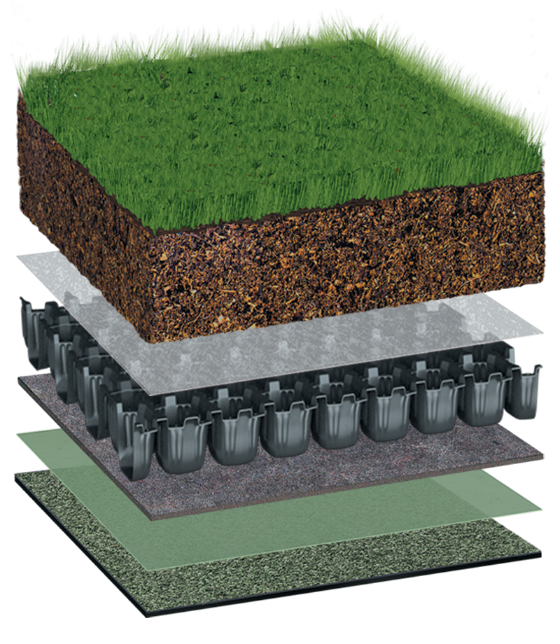

System Build Up

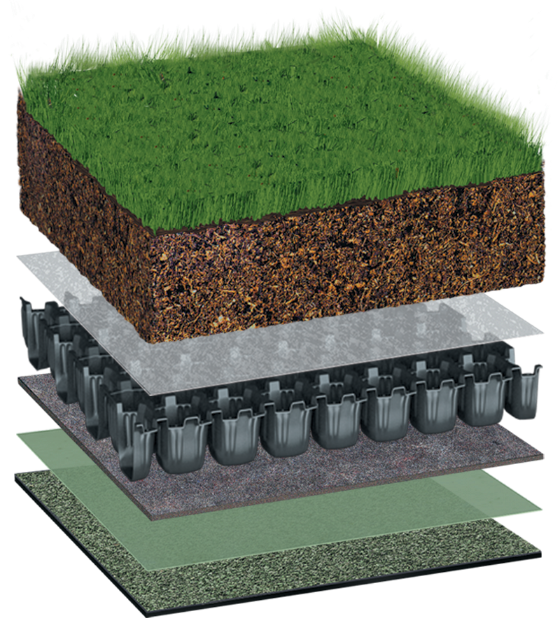

Bauder intensive landscaping and substrate system

BauderGREEN

BauderGREEN

Intensive landscaping and substrate system

Visit our Technical Centre for more information

Function

Seed bed substrate

Thickness (mm)-
Weight (kg/m2)<1,500 (saturated), 1,250 (dry)
