BauderSOLAR PV System

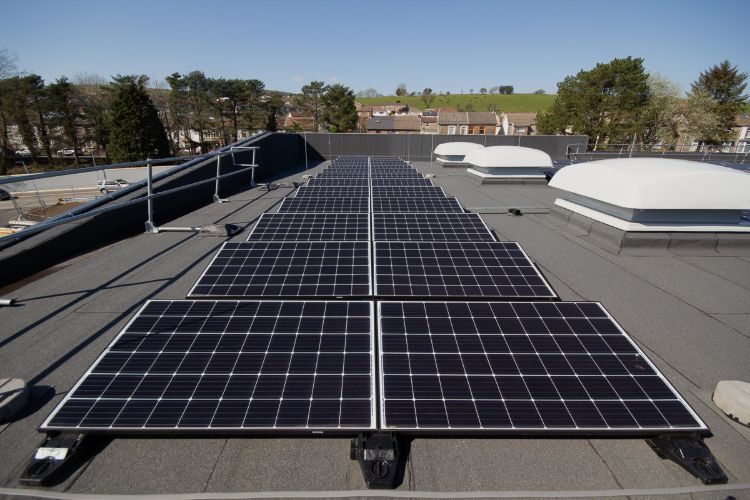

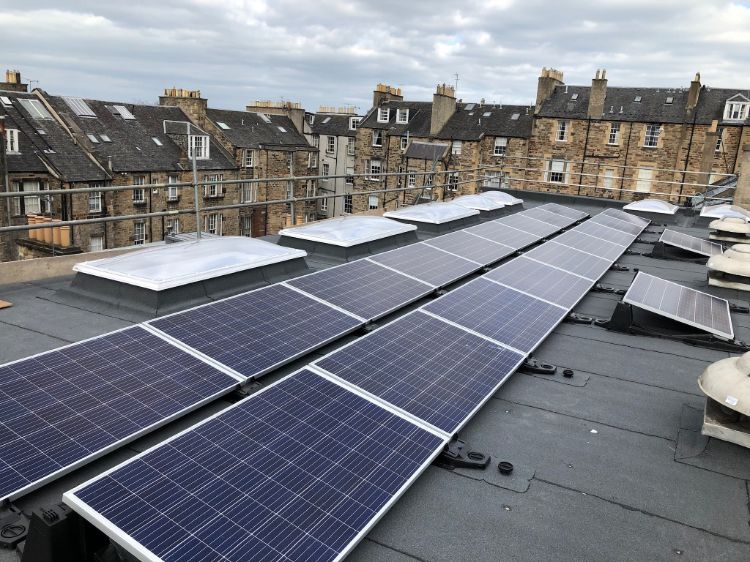

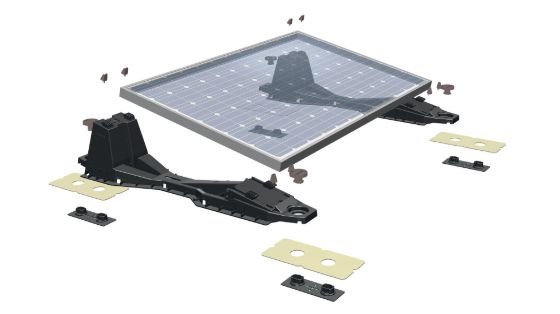

The BauderSOLAR photovoltaic solution for flat roofs features the integrated system in which the solar PV module and the substructure are combined to form a single unit, which is secured to the roof without any penetration of the waterproofing or roof deck. This ensures that the integrity of the roof is upheld throughout the installation of the PV array. The system is designed to be used in conjunction with Bauder single ply or bituminous membranes and is extremely lightweight at 9-12.5 Kg/m², depending on module selected.

  • Key Features
      Risk-free, zero penetration installation
      Single source for integrated design of waterproofing and PV
      Weighs just 9-12.5kg/sqm
      Range of modules delivering between 260-310wp per panel
      Panels designed to create a 12º angle
  • Benefits
      Integrity of waterproofing upheld as a result of drill-free installation
      Full guarantee covering waterproofing, PV components, modules and installation
      High energy generation with minimum 15.7% panel efficiency
      Lightweight panels are easy and cost-effective to transport
      Low angle makes for optimum energy generation and easier to overcome planning issues
  • Approvals, certification and guarantee
      Guaranteed system
      BSEN 62446 Grid Connected Photovoltaics
      BSEN 61853-1 Defining Solar Photovoltaic Power
      BSEN 1991-1-4 Wind Actions on Structures

      Meets all relevant EU standards
  • Environmental credentials
    Renewable energies, such as solar PV, are derived from natural processes that are replenished constantly and are therefore becoming increasingly important. A combination of the environmental impacts associated with burning fossil fuels and the spiralling costs of energy are driving a focus towards dealing with climate change by increasing renewable energy usage.
  • Installation and maintenance
    The quality and experience of the installing operative is paramount to ensuring a successful project. Bauder Approved Contractors are the only people fully trained and certified to install our products. They provide the necessary experience that our exceptional guarantee demands.

The rooftop solar panels are installed at the optimal angle for energy generation, delivering market leading efficiences to meet all requirements. The lightweight integrated system is backed up by a comprehensive guarantee as standard, covering the waterproofing, module components and PV installation. The modules are easily maintained, as highlighted in our system maintenance advice guide.
