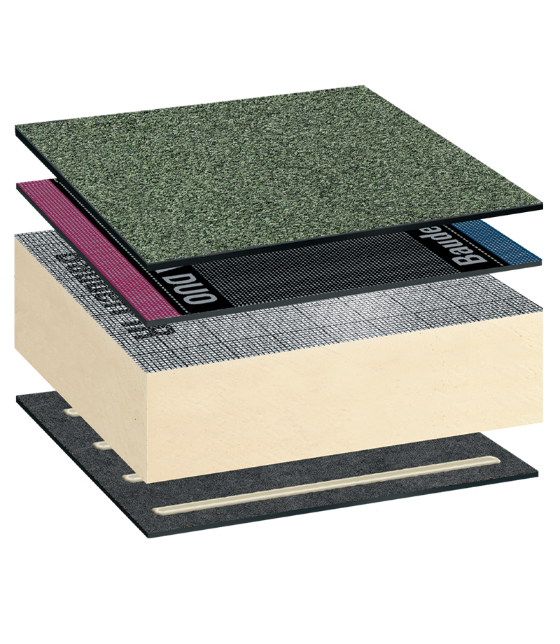

Bauder Total Green Roof System

Bauder Total Green Roof System

Bauder Total Green Roof System

(BTGRS)

Visit our Technical Centre for more information

Function

Cap Sheet - Green roof

Products

BauderPLANT E

Elastomer-bitumen torch on capping sheet with root resistance on our BTRS system.

Thickness (mm)5.2

Weight (kg/m²)6 (mass per unit area)

Function

Underlayer

Products

BauderTEC KSA DUO

Elastomer bitumen self-adhesive underlayer with variable technology for lap sealing.

Thickness (mm)3

Weight (kg/m²)3.5 (mass per unit area)

Function

Insulation (shown). For more options, click this drop down.

Products

BauderPIR FA-TE

Rigid polyurethane foam board faced on both sides with aluminium foil.

Thickness (mm)140

Weight (kg/m²)4.2

Function

Air & Vapour Control Layer (AVCL)

Products

BauderTEC KSD FBS

A self-adhesive elastomeric bitumen membrane, air and vapour control layer.

Thickness (mm)2.5

Weight (kg/m²)0.2
