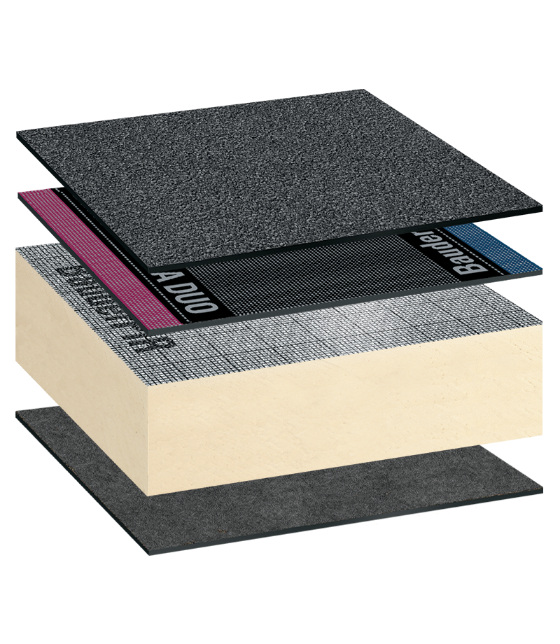

Bauder Total Roof System (BTRS)

Plant Decks, 120 m²with BauderPIR FA-TE
Art Terrace, 65 m² specified with BauderVIP TE

BTRS has fire classification B_ROOF(t4) and is verified by the BBA as ‘unrestricted’ and is therefore suitable for use on any part of the roof, and also offers an outstanding guarantee package.

Visit our Technical Centre for more information

Function

Cap Sheet

Products

Bauder K5K

Elastomeric bitumen torch applied capping sheet for the BTRS system.

View Product

Thickness (mm)5.2

Weight (kg/m²)0.25

Function

Underlayer

Products

BauderTEC KSA DUO

Elastomer bitumen self-adhesive underlayer with variable technology for lap sealing.

View Product

Thickness (mm)3

Weight (kg/m²)3.5 (mass per unit area)

Function

Insulation

Products

BauderPIR FA-TE

Rigid polyurethane foam board faced on both sides with aluminium foil.

View Product

BauderVIP TE

Vacuum insulation panel with high efficiency to reduce thickness of insulation required.

View Product

Thickness (mm)PIR FA-TE - Thickness 20*, 30, 40, 50, 60, 80, 100, 120, 140, 160, 180*, 200*, 220*, 240* | VIP - 40, 60 (core), 17 (PIR top layer), 3 (rubber granule mat)

Weight (kg/m²)PIR FA-TE - N/A | VIP - 30 for 60mm panel, 17 for 80mm panel

Function

Air & Vapour Control Layer (AVCL)

Products

Bauder Super AL-E

An elastomeric bitumen air and vapour control layer, torch-applied membrane.

View Product

Thickness (mm)3.5

Weight (kg/m²)4.5 (mass per unit area)
