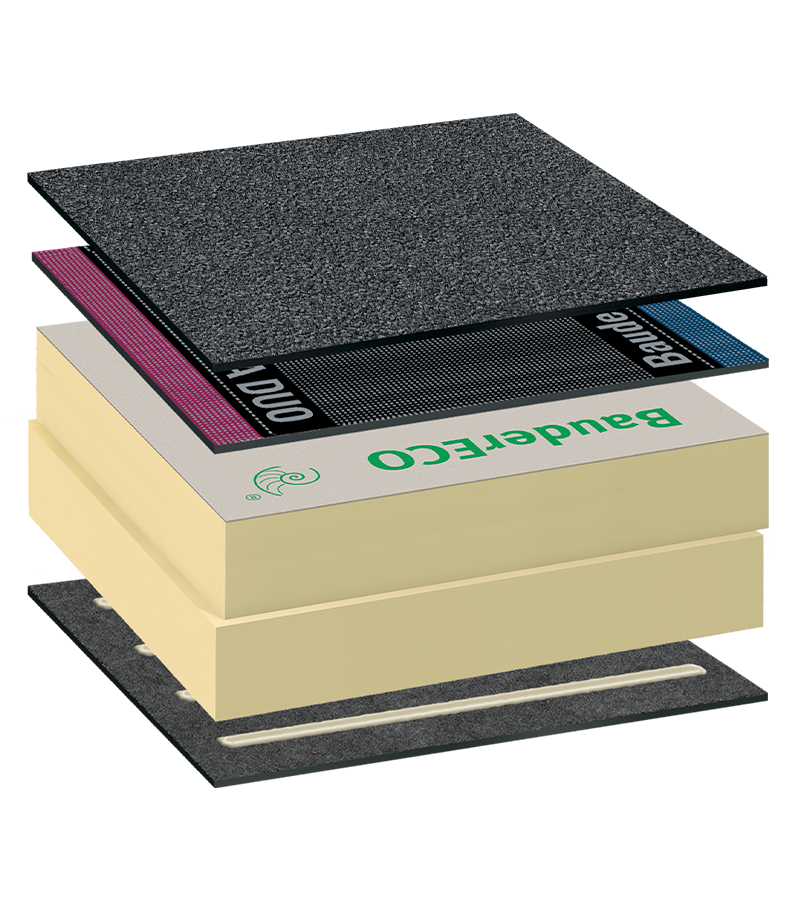

Bauder Total Roof System (BTRS)

Total Thickness (mm)170.7

Total Weight (kg/m²)17.46

Bauder Total Roof System (BTRS)

with BauderECO FF insulation

Visit our Technical Centre for more information

Function

Cap Sheet

Products

Bauder K5K

Elastomeric bitumen torch applied capping sheet for the BTRS system. Download this product's Technical Data Sheet.

Thickness (mm)5.2

Weight (kg/m²)0.25

Function

Underlayer

Products

BauderTEC KSA DUO

Elastomer bitumen self-adhesive underlayer with variable technology for lap sealing. Download this product's Technical Data Sheet.

Thickness (mm)3

Weight (kg/m²)3.5 (mass per unit area)

Function

Insulation

Products

BauderECO FF

BauderECO FF is a rigid foam thermoset Polyisocyanurate (PIR) rebated board for the thermal insulation of flat roofs. Download this product's Technical Data Sheet.

Thickness (mm)80, 125, 160

Weight (kg/m²)30

Function

Air & Vapour Control Layer (AVCL)

Products

BauderTEC KSD FBS

A self-adhesive elastomeric bitumen membrane, air and vapour control layer. Download this product's Technical Data Sheet.

Thickness (mm)2.5

Weight (kg/m²)0.2
