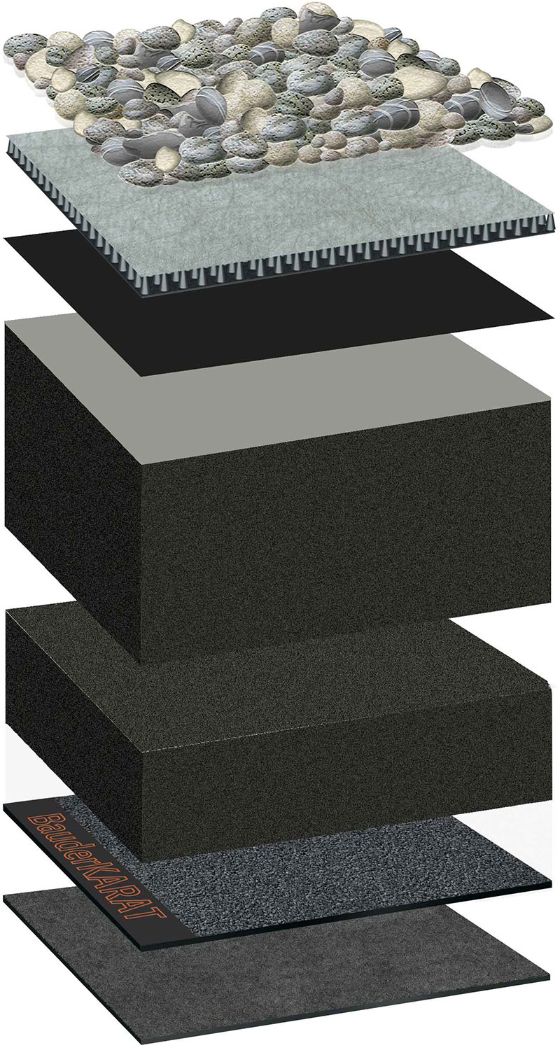

Bauder Total Roof System PLUS Inverted with BauderGLAS

Total Thickness (mm)289.15

Total Weight (kg/m²)41.25

Bauder Total Roof System PLUS Inverted with BauderGLAS

In-depth and up-to-date product-specific technical data is available for each element within a system.

Visit our Technical Centre for more information

Function

Ballast or Vegetation

Thickness (mm)Project specific

Weight (kg/m²)Project specific

Function

Protection/Drainage Layer

Products

BauderGREEN DE NF 10

Single layer multi-directional drainage and protection layer.

View Product

Thickness (mm)10

Weight (kg/m²)0.75

Function

Water Flow Reducing Layer (WFLR)

Products

BauderJFRI WFRL Membrane (Water Flow Reducing Layer)

Flexible sheet of polypropylene strands randomly spun-bonded.

View Product

Thickness (mm)0.45

Weight (kg/m²)3.5

Select Function

Products

BauderGLAS Inverted Insulation

Cellular glass with a pre-applied inorganic coating on the topside.

View Product

Thickness (mm)180

Weight (kg/m²)18

Function

Cap Sheet

Products

BauderKARAT

Polymer bitumen dual formulation torch-on capping sheet for BTRS PLUS system.

View Product

Thickness (mm)5.2

Weight (kg/m²)6.5

Function

Underlayer

Products

BauderTEC KSA DUO 35

An elastomer bitumen self-adhesive underlayer with variable technology for lap sealing.

View Product

Thickness (mm)3.5

Weight (kg/m²)3.5
